Product Overview

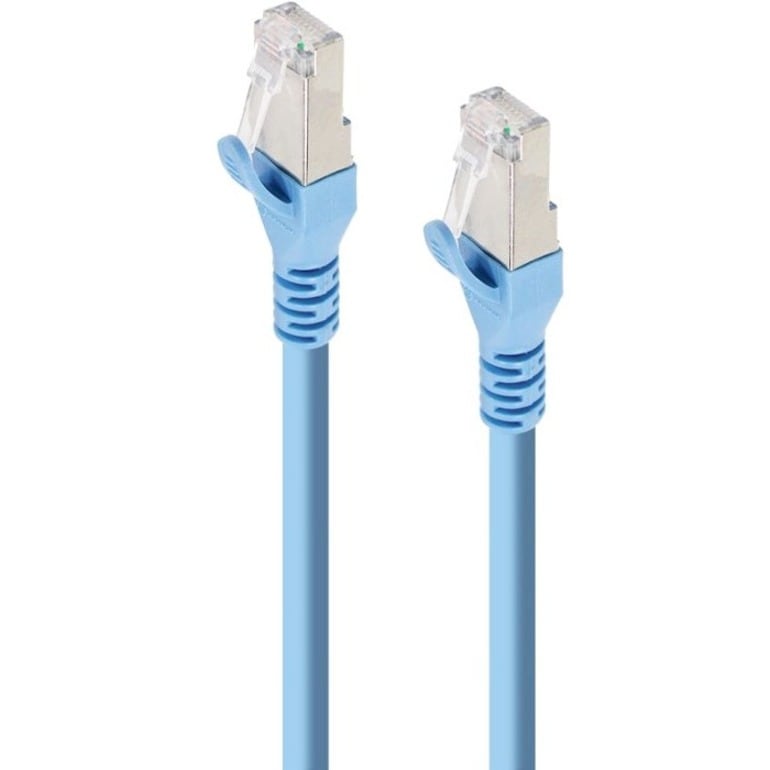

Alogic 30 m Category 6a Network Cable for Network Device, Computer - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Patch Cable - Shielding - Gold Plated Connector - LSZH - 26 AWG - Blue
ALOGIC 30m Blue 10G Shielded CAT6A Network Cable- Connect Your Ethernet Devices
- Performance rated for 750 MHz bandwidth.
- Suitable for up to 10G LANs, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet, & Lower.
- Each twisted pair in the cable is individually wrapped in aluminum foil Mylar (100% Coverage).
- Overall Copper Braided Shielded.
- Comes with LSZH (Low Smoke Zero Halogen) Jacket.
- Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8 (RJ45) plugs.
- Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt.
Technical Specifications
Miscellaneous
| Environmentally Friendly | Yes |
Technical Information
| Cable Length | 30 m |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Computer |
| Network Device | |
| Shielding | Yes |
| Features | Strain Relief |
| Stranded | |
| Plug & Play | |
| Flexible | |
| Booted | |
| Alien Near End Crosstalk (ANEXT) | |
| Cable Characteristic | Patch Cable |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Plating | Gold |
| American Wire Gauge | 26 AWG |
| Boot Type | Snagless |
Physical Characteristics
| Material Details | Bare Copper - Conductor |
| Product Color | Blue |
| Product Material | Aluminum Mylar Foil |
| Bare Copper |
General Information
| Product Type | Network Cable |
| Manufacturer Part Number | C6A-30-BLUE-SH |
| Manufacturer Website Address | http://www.alogic.co |
| Manufacturer | Alogic |
| Product Name | Blue Shielded CAT6A LSZH Network Cable - 30m |
| Brand Name | Alogic |
Price Trend
Current Price
AUD 189.49
