CISCO CATALYST 9136I SERIES INTERNAL ANT
CISCO CATALYST 9136I SERIES INTERNAL ANT
Product Overview

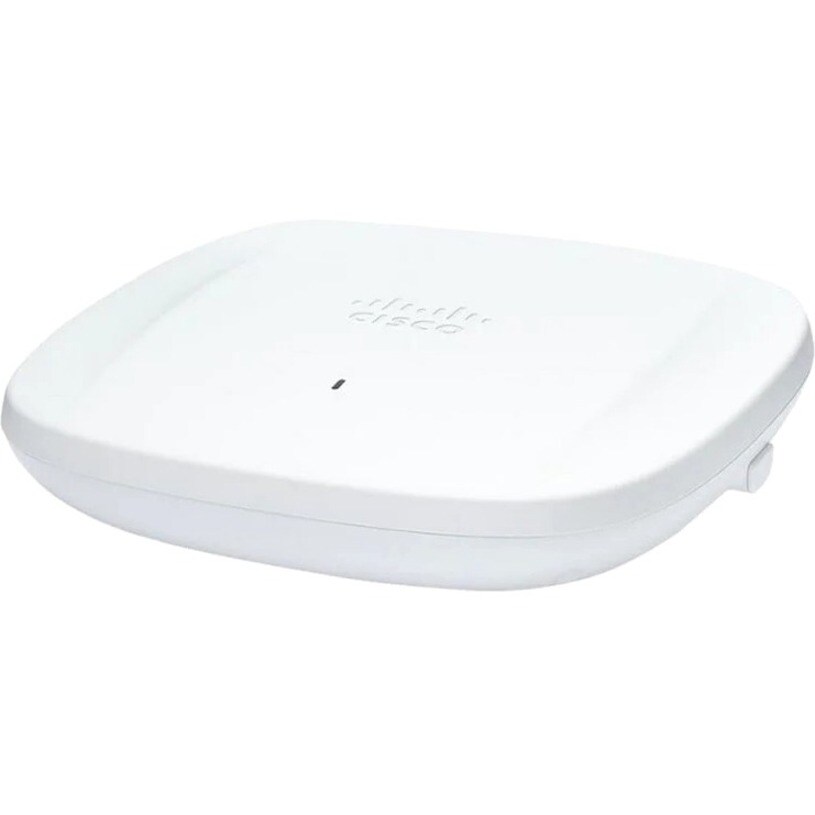

Cisco Catalyst 9136I Series Internal Antennas -Z Regulatory
The Cisco® Catalyst® 9136 Series Access Points are the next generation of enterprise access points supporting the new 6-GHz band for Wi-Fi. They are resilient, secure, and intelligent
The Wi-Fi 6E-compliant Catalyst 9136 Series takes advantage of the 6-GHz band expansion to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. The access points come with two 4x4 radios and one 8x8 radio and provide a host of features.
Wi-Fi 6E technology extends Wi-Fi 6 into the 6-GHz spectrum, bringing faster speeds and lower latency while also providing more security to the network. As apps become increasingly vital for getting work done, clients need unencumbered access to them. Wi-Fi 6E provides that direct access.
- Network speed increases due to the new 6-GHz spectrum and additional bandwidth.
- A new standard of reliability and predictability of connection that is shortening the gap between wireless and wired connections. Wi-Fi 6E devices won't have to share the same spectrum with any devices that are not Wi-Fi 6E compliant and will have an additional 1.2 GHz of no-interference spectrum to themselves.
- Greater network security than ever before, due to mandatory WPA3 security.
- Its management capability provides efficient control over setup and configuration of your network
- Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
- When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
Technical Specifications
Environmentally Friendly | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Ethernet Technology | 5 Gigabit Ethernet |
USB | Yes |
Number of Network (RJ-45) Ports | 2 |
Management Port | Yes |
PoE PD Port | Yes |
Network Band | Tri Band |
Wireless Transmission Speed | 10.20 Gbit/s |
Frequency Band | 2.40 GHz |
5 GHz | |
6 GHz | |
Wireless LAN Standard | 802.11ax |
Bluetooth Standard | Bluetooth 5 |
Encryption Standard | WPA |
WPA2 | |
WPA3 | |
Data Encryption | Yes |
MIMO Technology | Yes |
Beamforming Technology | Yes |
Indoor/Outdoor | Indoor |
Weight (Approximate) | 1.63 kg |
Height | 55.9 mm |
Width | 251.5 mm |
Depth | 251.5 mm |
Antenna Form Factor | Internal |
Product Type | Wireless Access Point |
Manufacturer Part Number | C9136I-Z |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | 9136I |
Product Name | Catalyst 9136I Wireless Access Point |
Product Line | Catalyst |
Product Series | 9100 |
Brand Name | Cisco |
