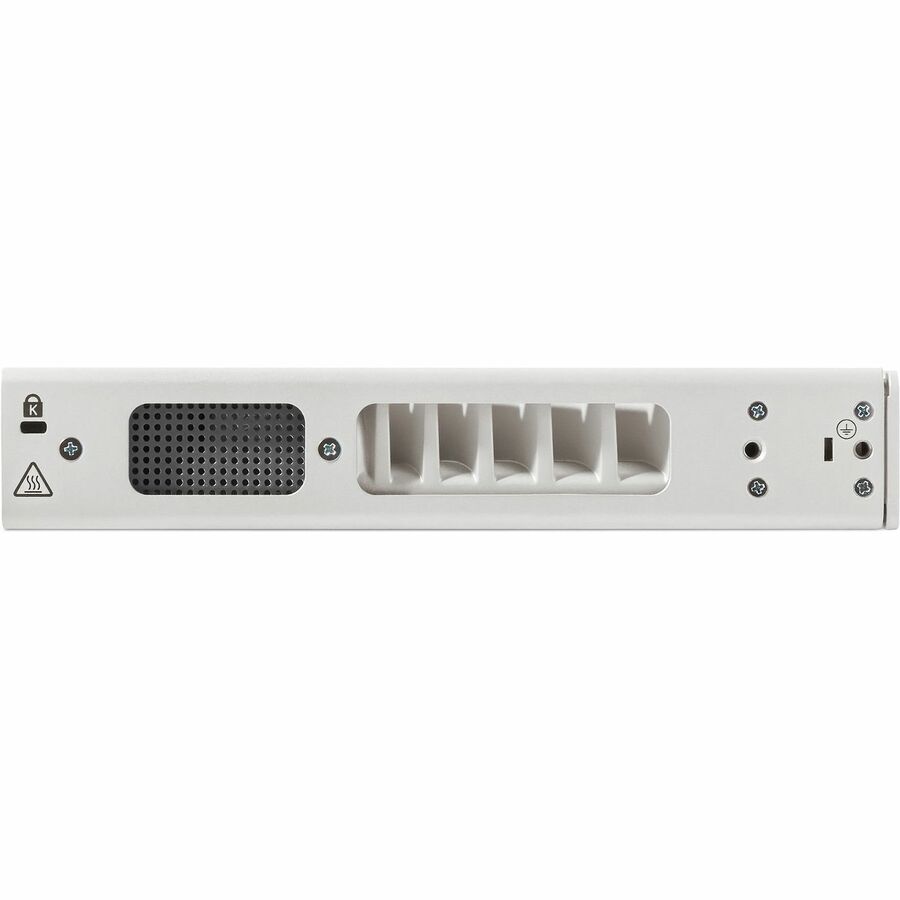

CATALYST 9000 COMPACT SWITCH 8 PORT POE+

CATALYST 9000 COMPACT SWITCH 8 PORT POE+

CATALYST 9000 COMPACT SWITCH 8 PORT POE+

Product Overview

Catalyst 9000 Compact Switch 8 port PoE+ 240WHVDCAdv

Extend intent-based networking everywhere
Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or Meraki cloud monitoring.
  • Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
  • With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
  • Can work as layer 3 routing for scalable network design
  • Supports layer 3 switching for enhanced performance and usability
  • Management capability provides control over setup and configuration of your network
  • Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Stack port provides an easy and hassle-free way to extend your office network
  • Cascade to other network devices through the uplink port to expand your local area network
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 10 ports
  • Quickly and easily set up a wired network with 10 networking ports

Technical Specifications

Management & Protocols
ManageableYes
Technical Information
FeaturesFanless
I/O Expansions
Expansion Slot TypeSFP+
Number of SFP+ Slots2
Total Number of Expansion Slots2.0
Media & Performance
Network Technology10GBase-X
10/100/1000Base-T
Ethernet Technology10 Gigabit Ethernet
Media Type SupportedTwisted Pair
Optical Fiber
Miscellaneous
Application/UsageWireless Access Point
Network
IP Phone
Enterprise
Business
Branch Office
Interfaces/Ports
Network (RJ-45)Yes
ModularNo
Uplink PortYes
Stack PortYes
Total Number of Network Ports10
Port/Expansion Slot Details2 x Gigabit Ethernet Network Port
8 x Gigabit Ethernet PoE+
2 x 10 Gigabit Ethernet Network Port
Power Description
Input Voltage230 V AC
120 V AC
Power SourcePoE+
AC
Power Supply
DC
Frequency50 Hz
60 Hz
Input ReceptaclesIEC 60320 C14
Power Consumption315 W
Number of Power Supplies Supported2
Number of Power Supplies Installed1
PoE (RJ-45) PortYes
Redundant Power Supply SupportedYes
PoE Budget240 W
Physical Characteristics
Weight (Approximate)2.99 kg
Form FactorRack-mountable
Under Table
Compact
Wall Mountable
Height43.9 mm
Width269.2 mm
Depth243.8 mm
General Information
Product TypeEthernet Switch
Manufacturer Part NumberC9200CX8P2XGHA
Manufacturer Website Addresshttp://www.cisco.com/c/en_au
ManufacturerCisco Systems, Inc
Product ModelC9200CX-8P-2XGH
Product NameCatalyst C9200CX-8P-2XGH Ethernet Switch
Product LineCatalyst
Product Series9200
Brand NameCisco
Network & Communication
Layer Supported3
Networking StandardsIEEE 802.3z
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3
IEEE 802.3ab
IEEE 802.1ae
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3an
IEEE 802.3at
IEEE 802.3bt
IEEE 802.3bz
IEEE 802.3u
IEEE802.3af
IEEE 802.1D
