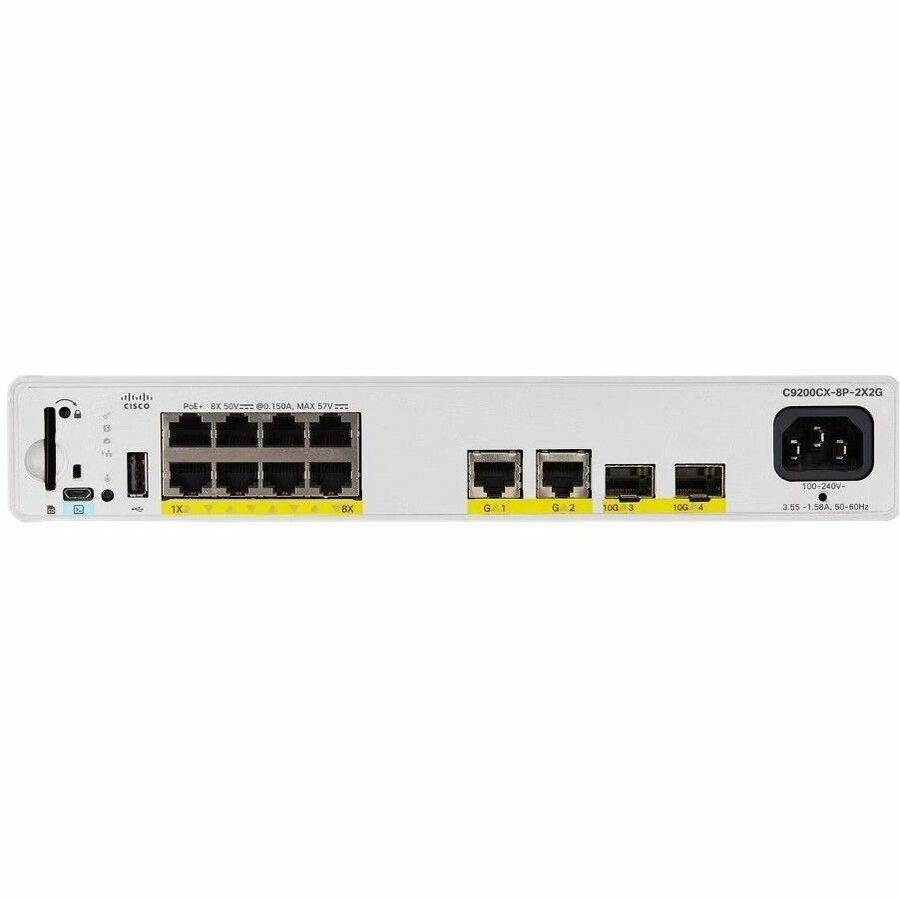

Catalyst 9000 Compact Switch 8 port UPoE
Catalyst 9000 Compact Switch 8 port UPoE
Product Overview
Catalyst 9000 Compact Switch 8 port UPoE with 4xmGig240WA
Introduction
Extend intent-based networking everywhere
Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or Meraki cloud monitoring.
Product overview
Product highlights
- Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX.
- Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE.
- Flexible downlink options with data, PoE+ or mGig
- Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
- Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based segmentation, and trustworthy solutions for the whole C9200 family
- Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
- Advanced network monitoring using Full Flexible NetFlow
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Quickly and easily set up a wired network with 8 networking ports
Technical Specifications
| Manageable | Yes |
| Features | Fanless |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Application/Usage | Business |
| IP Phone | |
| Campus | |
| Enterprise | |
| Network |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x 10 Gigabit Ethernet UPoE |
| 2 x 10 Gigabit Ethernet Expansion Slot |
| Network Technology | 10/100/1000Base-T |
| 10GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | C9200CX8UXG2XA |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | C9200CX-8UXG-2X |
| Product Name | Catalyst C9200CX-8UXG-2X Ethernet Switch |
| Product Line | Catalyst |
| Product Series | 9200 |
| Brand Name | Cisco |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 315 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 240 W |
| Weight (Approximate) | 3.18 kg |
| Form Factor | Under Table |
| Wall Mountable | |
| Compact | |
| DIN Rail Mountable | |
| Rack-mountable | |
| Height | 43.9 mm |
| Width | 269.2 mm |
| Depth | 243.8 mm |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x |
| IEEE 802.1w | |
| IEEE 802.1s | |
| IEEE 802.1p | |
| IEEE 802.1D | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3u | |
| IEEE 802.3z | |
| IEEE 802.3ad |
