C9300 48PORT 12MGIG36 2.5GBPS UPOE 1100W
C9300 48PORT 12MGIG36 2.5GBPS UPOE 1100W

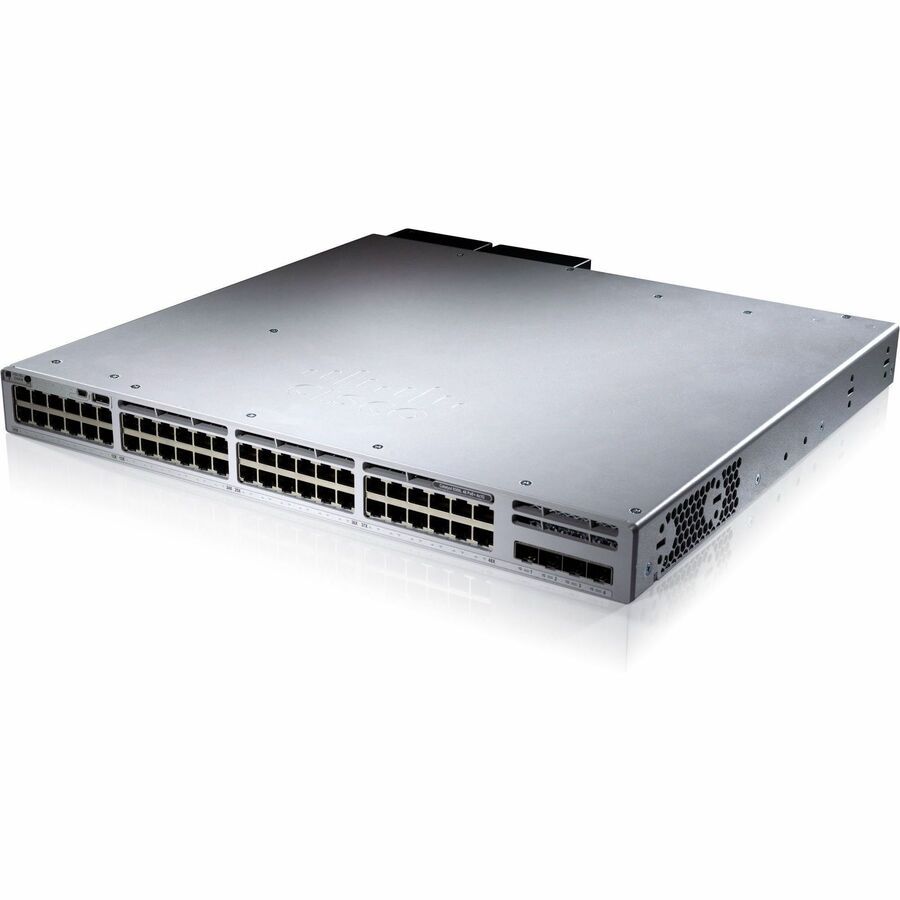

Product Overview
C9300 48port 12mGig36 2.5Gbps UPOE 1100wac PS w/MERAKI
The Catalyst 9300-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300-M provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The Catalyst 9300-M delivers resiliency with fast stack convergence and StackPower. The Catalyst 9300-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.
Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group's traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.
By pooling & distributing power across C9300-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 48 networking ports
Technical Specifications
Manageable | Yes |
Application/Usage | Network |
Expansion Slot Type | Uplink Module |
Total Number of Expansion Slots | 1.0 |
Network Technology | 10GBase-T |
2.5GBase-T | |
Ethernet Technology | 2.5 Gigabit Ethernet |
10 Gigabit Ethernet | |
Media Type Supported | Twisted Pair |
Weight (Approximate) | 9.09 kg |
Form Factor | Rack-mountable |
Height | 43.9 mm |
Width | 444.5 mm |
Depth | 563.9 mm |
Compatible Rack Unit | 1U |
Layer Supported | 3 |
Networking Standards | IEEE 802.1p |
IEEE 802.1ab | |
IEEE 802.1Q | |
IEEE 802.1s | |
IEEE 802.1x | |
IEEE 802.1ad |
Product Type | Ethernet Switch |
Manufacturer Part Number | C930048UXMM |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | C9300-48UXM-M |
Product Name | Catalyst C9300-48UXM-M Ethernet Switch |
Product Line | Catalyst |
Product Series | 9300-M |
Brand Name | Meraki |
Network (RJ-45) | Yes |
Modular | Yes |
Uplink Port | Yes |
Stack Port | Yes |
Total Number of Network Ports | 48 |
Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet UPoE |
1 x Uplink | |
2 x Stack | |
36 x 2.5 Gigabit Ethernet Network |
Power Source | Power Supply |
Frequency | 50 Hz |
60 Hz | |
Power Consumption | 785.50 W |
Number of Power Supplies Supported | 2 |
Number of Power Supplies Installed | 1 |
PoE (RJ-45) Port | Yes |
Redundant Power Supply Supported | Yes |
PoE Budget | 490 W |
