Product Overview

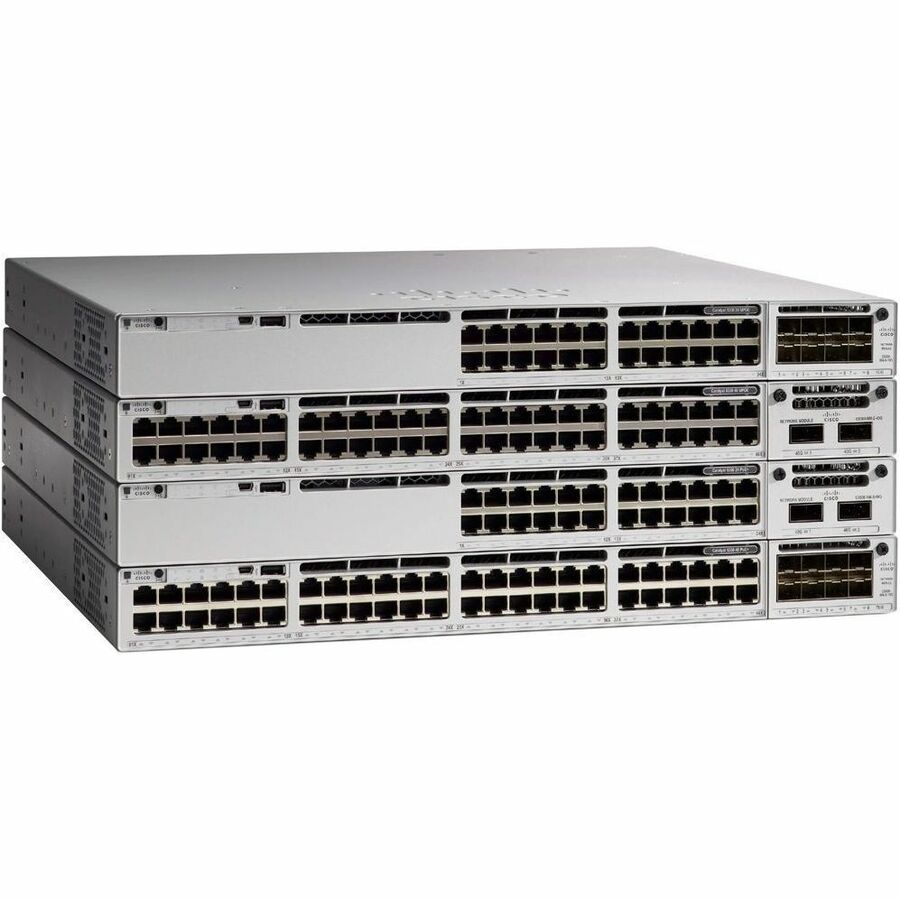

C9300L 24-port data 4x10G Uplink 350wac PS w/MERAKI

The Catalyst 9300L-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300L-M provides multigigabit ports, 320GB stacking with four fixed 10G uplinks. The Catalyst 9300L-M delivers resiliency with fast stack convergence. The Catalyst 9300L-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300L-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group's traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

  • Gigabit Ethernet port for ultra-fast network speeds
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Can work as layer 3 routing for scalable network design
  • Supports layer 3 switching for enhanced performance and usability
  • Managed switch provides a reliable foundation for your network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Stack port provides an easy and hassle-free way to extend your office network
  • Cascade to other network devices through the uplink port to expand your local area network
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports

Technical Specifications

Management & Protocols
ManageableYes
Reliability
MTBF387700 Hour
I/O Expansions
Expansion Slot TypeUplink Module
Total Number of Expansion Slots4.0
Network & Communication
Layer Supported3
Networking StandardsIEEE 802.1x
Miscellaneous
Application/UsageEnterprise
Network
Wireless Access Point
Power Description
Power SourcePower Supply
Number of Power Supplies Supported2
Number of Power Supplies Installed1
Redundant Power Supply SupportedYes
Interfaces/Ports
Network (RJ-45)Yes
ModularYes
Uplink PortYes
Stack PortYes
Total Number of Network Ports24
Port/Expansion Slot Details24 x Gigabit Ethernet Network
4 x 10 Gigabit Ethernet Uplink
2 x Stack
Media & Performance
Network Technology10GBase-X
1000Base-T
Ethernet Technology10 Gigabit Ethernet
Gigabit Ethernet
Media Type SupportedOptical Fiber
Twisted Pair
Physical Characteristics
Weight (Approximate)6.78 kg
Form FactorRack-mountable
Height43.9 mm
Width444.5 mm
Depth449.6 mm
Compatible Rack Unit1U
General Information
Product TypeEthernet Switch
Manufacturer Part NumberC9300L24T4XM
Manufacturer Website Addresshttp://www.cisco.com/c/en_au
ManufacturerCisco Systems, Inc
Product ModelC9300L-24T-4X-M
Product NameCatalyst C9300L-24T-4X-M Ethernet Switch
Product LineCatalyst
Product Series9300
Brand NameCisco
