Product Overview

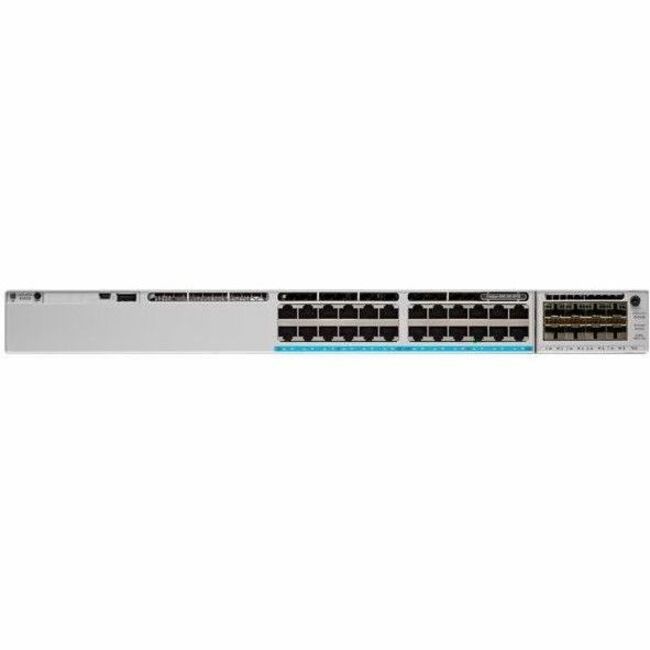

C9300L 24-port 8mGig 4x10G Uplink 1100wac PS w/MERAKI

Built to reimagine connection, reinforce security and redefine experience

Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.

The many industry's first include:

  • Up to 1TB of stacking bandwidth:With Stackwise-1T, Catalyst 9300 switches are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture
  • Flexible and dense uplink offeringswith 100G, 40G, 25G, Multigigabit, 10G, and 1G modular uplinks
  • Mixed Stacking with Backward Compatibility- Stack your Catalyst 9300X fiber switches with Catalyst 9300 and Catalyst 9300X Multigigabit switches, bringing stackable high-speed fiber to the access
  • Highest Multigigabit Ports:With standalone and Stackwise-1T, Catalyst 9300X models enable 48 mGig ports in standalone and 448 mGig ports with an 8-member stack
  • Highest 90W UPOE+ Density:Enable your OT/IT needs with up to 36 ports of 90W UPOE+ for standalone or 288 ports of 90W UPOE+ with a 8-member stack.
  • StackPower with Backward Compatibility:Enable power resiliency with higher power budgets in mixed Catalyst 9300 and Catalyst 9300X stack.
  • 100G IPsec in hardware:With the new 2.0sec UADP ASIC, the Catalyst 9300X comes with 100G line rate IPsec to enable various options for new edge connectivity
  • Secure Tunnel connectivity:With the new edge, the C9300X enables secure connections to Secure Internet Gateway, Cloud Service Providers and Site to Site connectivity using IPsec tunnel with AES-256 Encryption and speeds up to 100G.
  • Enhanced Application Hosting:With 2x capacity and additional RAM, QAT, and 2 x 10G AppGig Ports, multiple Cisco Signed performance savvy applications can be hosted on Catalyst 9300X
  • ThousandEyes Enabled:End-to-end visualization of the path from campus/branch to clouds/DC with Cisco ThousandEyes Network and Application Synthetics (included with Cisco DNA Advantage licenses)
  • Investment Protection:Catalyst 9300X redundant fans and power supplies, data stack and StackPower cables are backward compatible with the Catalyst 9300.
  • Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Supports layer 3 switching for enhanced performance and usability
  • Managed switch provides a reliable foundation for your network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Stack port provides an easy and hassle-free way to extend your office network
  • Cascade to other network devices through the uplink port to expand your local area network
  • Quickly and easily set up a wired network with 24 networking ports

Technical Specifications

Management & Protocols
ManageableYes
Reliability
MTBF332640 Hour
I/O Expansions
Expansion Slot TypeSFP+
Number of SFP+ Slots4
Total Number of Expansion Slots4.0
Physical Characteristics
Weight (Approximate)7.14 kg
Form FactorRack-mountable
Height44 mm
Width445 mm
Depth409 mm
Media & Performance
Network Technology10GBase-X
10/100/1000Base-T
Ethernet TechnologyGigabit Ethernet
10 Gigabit Ethernet
Media Type SupportedTwisted Pair
Optical Fiber
Network & Communication
Layer Supported3
Networking StandardsIEEE 802.3an
IEEE 802.1ad
IEEE 802.1ae
IEEE 802.1AVB
IEEE 802.1p
IEEE 802.1Q
IEEE 802.3z
IEEE 802.3u
IEEE 802.3bz
IEEE 802.3bt
IEEE 802.3at
IEEE 802.3af
IEEE 802.3ae
IEEE 802.3ad
IEEE 802.3ab
IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3
Interfaces/Ports
Network (RJ-45)Yes
ModularYes
Uplink PortYes
Stack PortYes
Total Number of Network Ports24
Port/Expansion Slot Details24 x Gigabit Ethernet UPoE
4 x 10 Gigabit Ethernet Expansion Slot
General Information
Product TypeEthernet Switch
Manufacturer Part NumberC9300L24UXG4XM
Manufacturer Website Addresshttp://www.cisco.com/c/en_au
ManufacturerCisco Systems, Inc
Product ModelC9300L-24UXG-4X
Product NameCatalyst C9300L-24UXG-4X Ethernet Switch
Product LineCatalyst
Product Series9300
Brand NameCisco
Power Description
Input Voltage120 V AC
230 V AC
Power SourcePower Supply
Frequency50 Hz
60 Hz
Power Consumption715 W
Plug/Connector TypeIEC 60320 C16
PoE (RJ-45) PortYes
Redundant Power Supply SupportedYes
