H5 FLOW 2024 ATX MID WHT
H5 FLOW 2024 ATX MID WHT
Product Overview
NZXT H5 Flow CC-H52FW-01 Computer Case - ATX Motherboard Supported - Mid-tower - Mesh, Steel, Tempered Glass, Galvanized Cold Rolled Steel (SGCC) - White - 1 x 120mm, 1 x 140mm Fan(s) Installed - 4 x Fan(s) Supported - 1 x Internal 3.5" Bay(s) - 2 x Internal 2.5" Bay(s) - 7 x Slot(s) - 2 x USB(s) - 1 x USB 3.2 Type-A, 1 x USB 3.2 Type-C - 1 x Audio In - 1 x Audio Out - Fan/Liquid Cooler
H5 Flow
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).

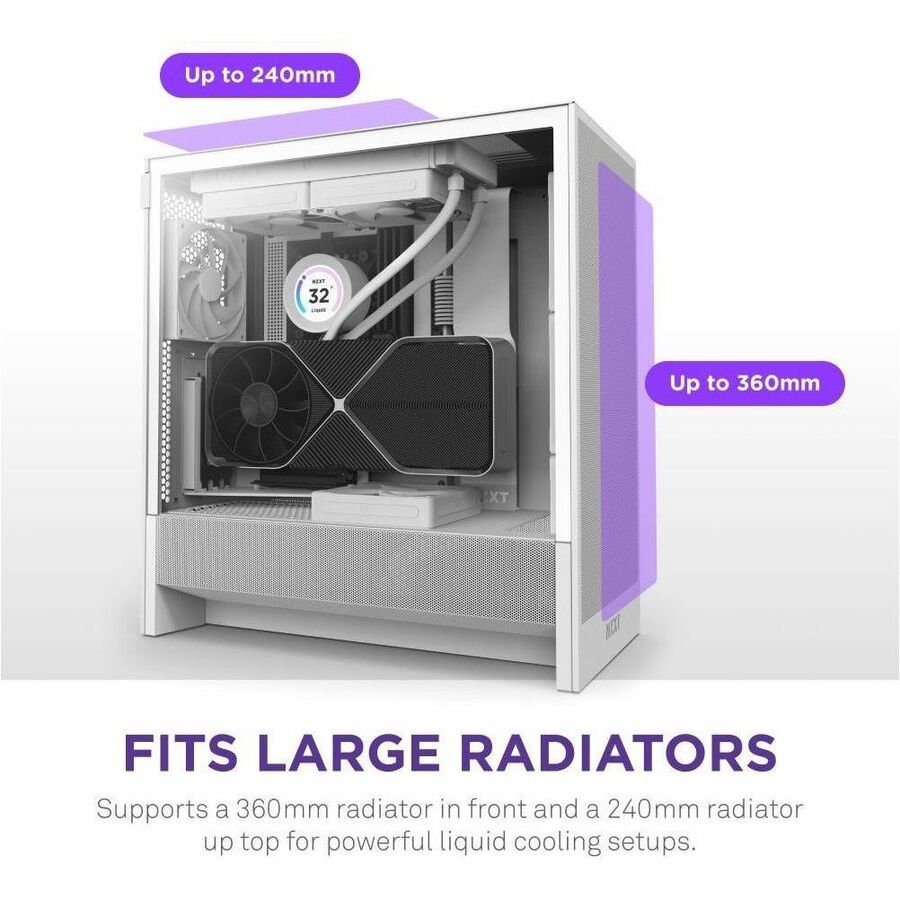

Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans
Equipped with two 120mm Quiet Airflow fans (CV)-one in front, one in rear-for out-of-the-box cooling. Case Version (3-pin DC)
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Tool-less Access
Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
- With the support of 4 fan(s), the high air flow mid-tower casing protects and enhances the hardware components
- Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
Technical Specifications
| Total Number of Expansion Slots | 7 |
| Package Contents |
|
| "Number of Internal 2.5"" Bays" | 2 |
| "Number of Internal 3.5"" Bays" | 1 |
| Front USB | Yes |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Total Number of USB Ports | 2 |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| USB Port Details | 1 x USB 3.2 Type-C |
| 1 x USB 3.2 Type-A |
| Motherboard Supported | EATX |
| Micro ATX | |
| ATX | |
| Mini ITX | |
| Features | Dust Filter |
| Cable Management | |
| Number of Fans Supported | 4 |
| Number of Fans Installed | 2 |
| Fan Size Supported | 120 mm |
| 140 mm | |
| Installed Fan Size | 140 mm |
| 120 mm | |
| Installed Fan Size Details | 1 x 140mm |
| 1 x 120mm |
| Product Type | Computer Case |
| Manufacturer Part Number | CC-H52FW-01 |
| Manufacturer Website Address | http://www.nzxt.com |
| Packaged Quantity | 1 |
| Manufacturer | NZXT Corporation |
| Product Model | CC-H52FW-01 |
| Product Name | H5 Flow Compact Mid-Tower ATX Airflow Case |
| Product Line | H5 Flow |
| Brand Name | NZXT |
| Weight (Approximate) | 7.28 kg |
| Form Factor | Mid-tower |
| Cooler Type | Fan/Liquid Cooler |
| Height | 465 mm |
| Width | 225 mm |
| Depth | 430 mm |
| Product Color | White |
| Maximum CPU Cooler Height | 170 mm |
| Maximum PSU Length | 200 mm |
| Color Family | White |
| Product Material | Steel |
| Tempered Glass | |
| Mesh | |
| Galvanized Cold Rolled Steel (SGCC) | |
| Maximum GPU Length | 410 mm |
