CK722BK300U3BRONZE 9L MATX 300W CHASSIS
CK722BK300U3BRONZE 9L MATX 300W CHASSIS
Product Overview

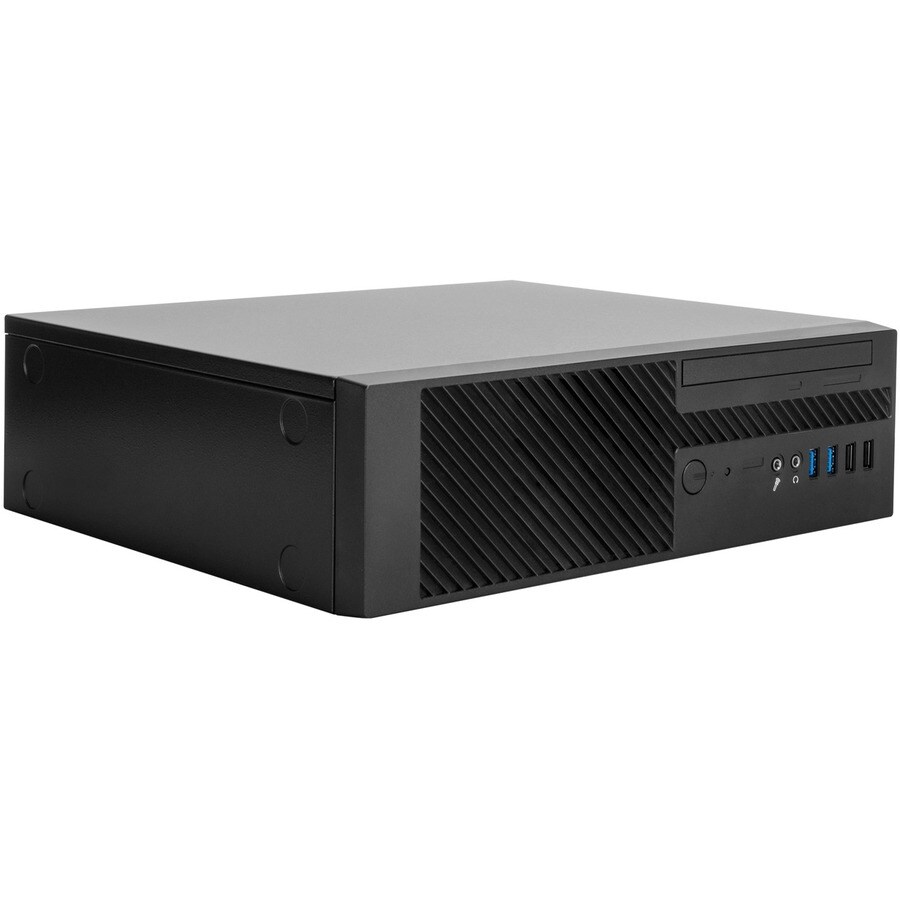

In Win CK722 Computer Case - Micro ATX, Mini ITX Motherboard Supported - Ultra Small - Black - 3 x Bay(s) - 1 x 300 W - Power Supply Installed - 1 x External 5.25" Bay(s) - 1 x Internal 2.5" Bay(s) - 1 x Internal 2.5"/3.5" Bay(s) - 4 x Slot(s) - 4 x USB(s) - 1 x Audio In - 1 x Audio Out - Fan Cooler
9L Small Form Factor
Efficiently utilizes its 9L compact size to support Micro-ATX form factor motherboard, providing flexibility for integrators.
- Easy Integration
- Superior Performance
- Optimal Thermal Performance
- Smart Interior Structure Design
- Tool-Free Drive Bays and PCI-E Slots
- Standard TFX 12V 300W Power Supply
- With the compact ultra small structure, you can freely install the casing anywhere
- Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- Total 3 expansion bays help in upgrading the system by increasing number of hardware components
Technical Specifications
I/O Expansions
| Total Number of Expansion Slots | 4 |
Miscellaneous
| Environmentally Friendly | Yes |
Bays
| "Number of External 5.25"" Bays" | 1 |
| "Number of Internal 2.5"" Bays" | 1 |
| Number of Total Expansion Bays | 3 |
| "Number of Internal 2.5""/3.5"" Bays" | 1 |
Power Description
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Power Supply Wattage | 300 W |
| Power Supply Installed | Yes |
General Information
| Product Type | Computer Case |
| Manufacturer Part Number | CK722BK300U3BRONZE |
| Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
| Packaged Quantity | 1 |
| Manufacturer | In Win Development, Inc |
| Product Model | CK722 |
| Product Name | CK722 Computer Case |
| Package Type | Retail |
| Product Series | CK |
| Brand Name | In Win |
Technical Information
| Motherboard Supported | Mini ITX |
| Micro ATX | |
| Number of Fans Installed | 1 |
| Installed Fan Size | 80 mm |
Interfaces/Ports
| Front USB | Yes |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Total Number of USB Ports | 4 |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
Physical Characteristics
| Form Factor | Ultra Small |
| Cooler Type | Fan Cooler |
| Height | 329 mm |
| Width | 95 mm |
| Depth | 297 mm |
| Product Color | Black |
| Maximum CPU Cooler Height | 45 mm |
| Color Family | Black |
