H SERIES H7 FLOW RGB EDITION ATX MID WH
H SERIES H7 FLOW RGB EDITION ATX MID WH
Product Overview

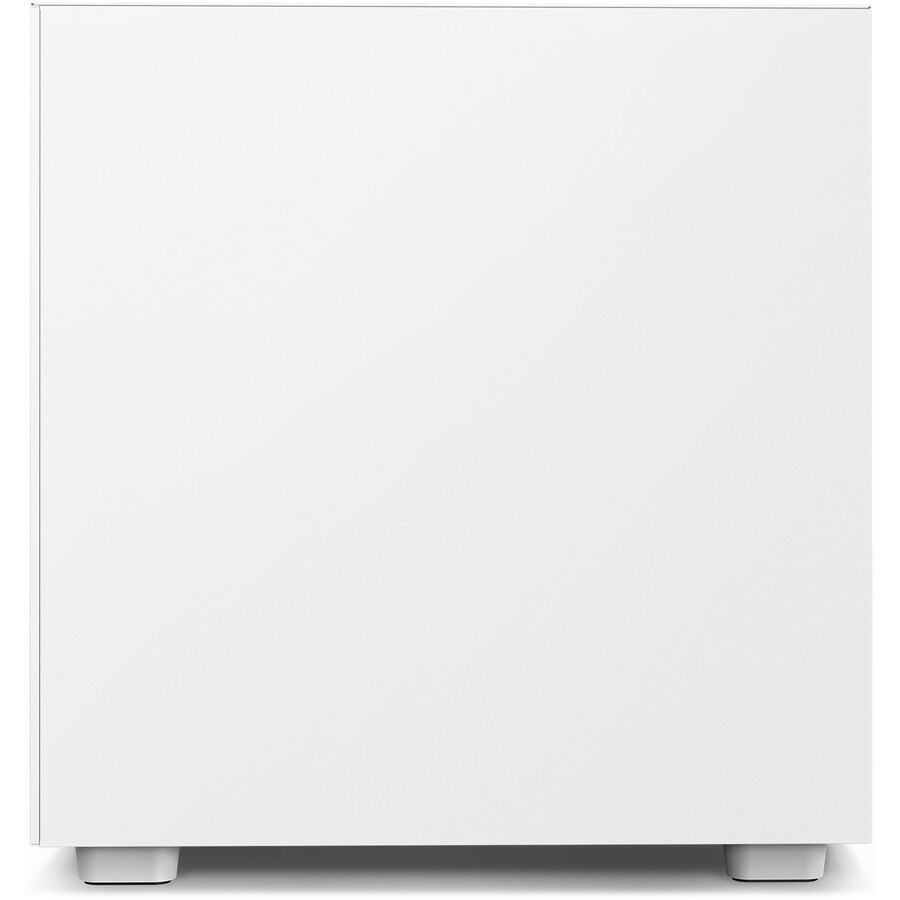

NZXT H7 Flow CM-H71FW-R1 Computer Case - ATX Motherboard Supported - Mid-tower - Galvanized Cold Rolled Steel (SGCC), Tempered Glass - Matte White - 7 x Fan(s) Supported - 2 x Internal 3.5" Bay(s) - 6 x Internal 2.5" Bay(s) - 7.0 x Slot(s) - 3 x USB(s) - 2 x USB 3.1 Gen 1, 1 x USB 3.2 (Gen 2) Type C, 1 x USB 3.2 Gen 2x2 Type C - 1 x Audio In - Fan Cooler
The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.
- Includes three pre-installed F140 RGB Core fans & one F120Q Quiet Airflow fan
- Perforated front & top panels enable maximum thermal performance
- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels (tinted panels on black variant only)
- Front & top support radiators up to 360mm
- Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
- Supports vertical GPU mounting (Sold Separately)
- Two color options (Matte Black, Matte White)
- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port
- Mid-tower structure offers a cooler place for other hardware components by supporting up to 7 fan(s)
- Supports ATX motherboards to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
Technical Specifications
I/O Expansions
| Total Number of Expansion Slots | 7.0 |
Bays
| "Number of Internal 2.5"" Bays" | 6 |
| "Number of Internal 3.5"" Bays" | 2 |
Interfaces/Ports
| Front USB | Yes |
| Front Audio In | Yes |
| Total Number of USB Ports | 3 |
| Total Number of Audio In Ports | 1 |
| USB Port Details | 1 x USB 3.2 Gen 2x2 Type C |
| 1 x USB 3.2 (Gen 2) Type C | |
| 2 x USB 3.1 Gen 1 |
Physical Characteristics
| Weight (Approximate) | 10.57 kg |
| Form Factor | Mid-tower |
| Cooler Type | Fan Cooler |
| Height | 505 mm |
| Width | 230 mm |
| Depth | 480 mm |
| Product Color | Matte White |
| Maximum CPU Cooler Height | 185 mm |
| Maximum PSU Length | 200 mm |
| Color Family | White |
| Product Material | Tempered Glass |
| Galvanized Cold Rolled Steel (SGCC) | |
| Maximum GPU Length | 400 mm |
Technical Information
| Motherboard Supported | Mini ITX |
| ATX | |
| Micro ATX | |
| Features | Cable Management |
| Number of Fans Supported | 7 |
| Number of Fans Installed | 4 |
| Installed Fan Size | 120 mm |
General Information
| Product Type | Computer Case |
| Manufacturer Part Number | CMH71FWR1 |
| Manufacturer Website Address | http://www.nzxt.com |
| Packaged Quantity | 1 |
| Manufacturer | NZXT Corporation |
| Product Model | CM-H71FW-R1 |
| Product Name | H7 Flow RGB ATX Mid-Tower with RGB Fans |
| Product Line | H7 Flow |
| Brand Name | NZXT |
