H7 FLOW RGB2024MID-TOWER ATXCASE-ALL BLK
H7 FLOW RGB2024MID-TOWER ATXCASE-ALL BLK
Product Overview
NZXT H7 Flow CM-H72FB-R1 Computer Case - ATX Motherboard Supported - Mid-tower - Galvanized Cold Rolled Steel (SGCC), Tempered Glass - Matte Black - 10 x Fan(s) Supported - 2 x Internal 3.5" Bay(s) - 4 x Internal 2.5" Bay(s) - 7 x Slot(s) - 3 x USB(s) - 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 (Gen 2) Type C - 1 x Audio In - 1 x Audio Out - Fan Cooler

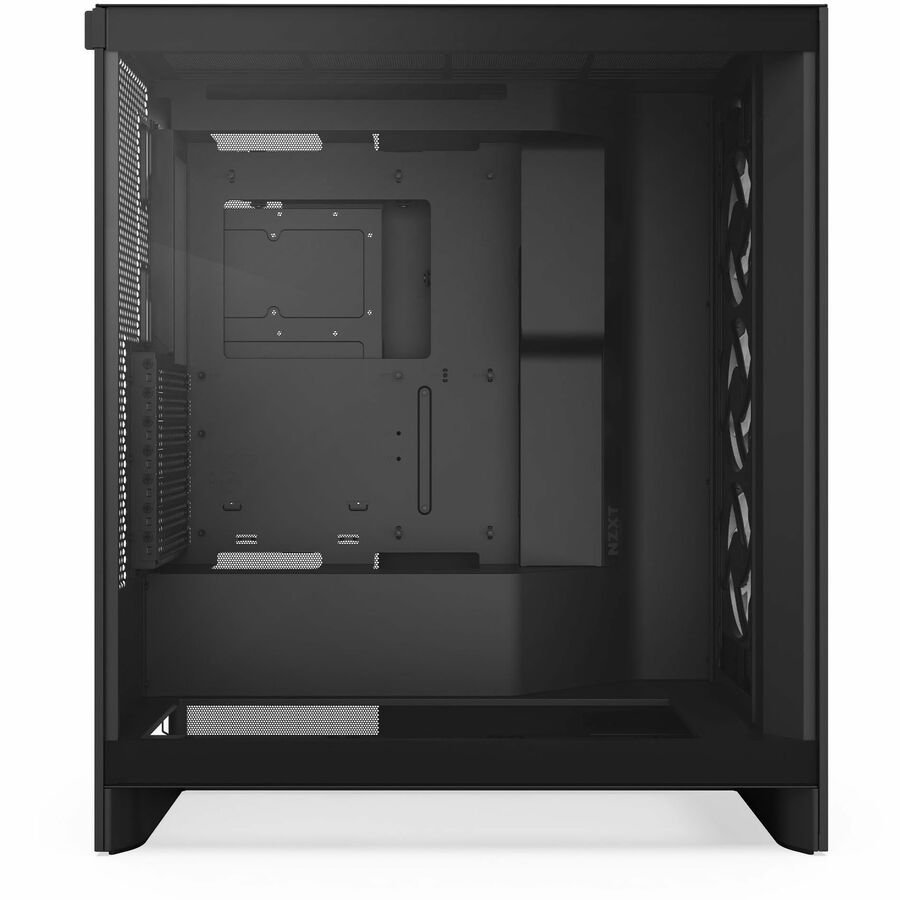

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
- Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
- Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
- Mid-tower structure offers a cooler place for other hardware components by supporting up to 10 fan(s)
- Supports ATX motherboards to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
Technical Specifications
I/O Expansions
| Total Number of Expansion Slots | 7 |
Miscellaneous
| Package Contents |
|
Bays
| "Number of Internal 2.5"" Bays" | 4 |
| "Number of Internal 3.5"" Bays" | 2 |
Interfaces/Ports
| Front USB | Yes |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Total Number of USB Ports | 3 |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| USB Port Details | 2 x USB 3.2 Gen 1 Type-A |
| 1 x USB 3.2 (Gen 2) Type C |
Technical Information
| Motherboard Supported | Micro ATX |
| ATX | |
| EATX | |
| Mini ITX | |
| Features | Dust Filter |
| Cable Management | |
| Number of Fans Supported | 10 |
| Number of Fans Installed | 3 |
| Fan Size Supported | 120 mm |
| Installed Fan Size | 120 mm |
General Information
| Product Type | Computer Case |
| Manufacturer Part Number | CM-H72FB-R1 |
| Manufacturer Website Address | http://www.nzxt.com |
| Packaged Quantity | 1 |
| Manufacturer | NZXT Corporation |
| Product Model | CM-H72FB-R1 |
| Product Name | H7 Flow RGB Mid-Tower ATX Airflow Case with RGB Fans |
| Product Line | H7 Flow |
| Brand Name | NZXT |
Physical Characteristics
| Weight (Approximate) | 11.13 kg |
| Form Factor | Mid-tower |
| Cooler Type | Fan Cooler |
| Height | 544 mm |
| Width | 244 mm |
| Depth | 468 mm |
| Product Color | Matte Black |
| Maximum CPU Cooler Height | 185 mm |
| Maximum PSU Length | 200 mm |
| Color Family | Black |
| Product Material | Galvanized Cold Rolled Steel (SGCC) |
| Tempered Glass | |
| Maximum GPU Length | 410 mm |
Price Trend
Current Price
AUD 226.36
