H7 FLOW2024MID-TOWER ATXCASE-ALL WHITE

H7 FLOW2024MID-TOWER ATXCASE-ALL WHITE

H7 FLOW2024MID-TOWER ATXCASE-ALL WHITE

Product Overview

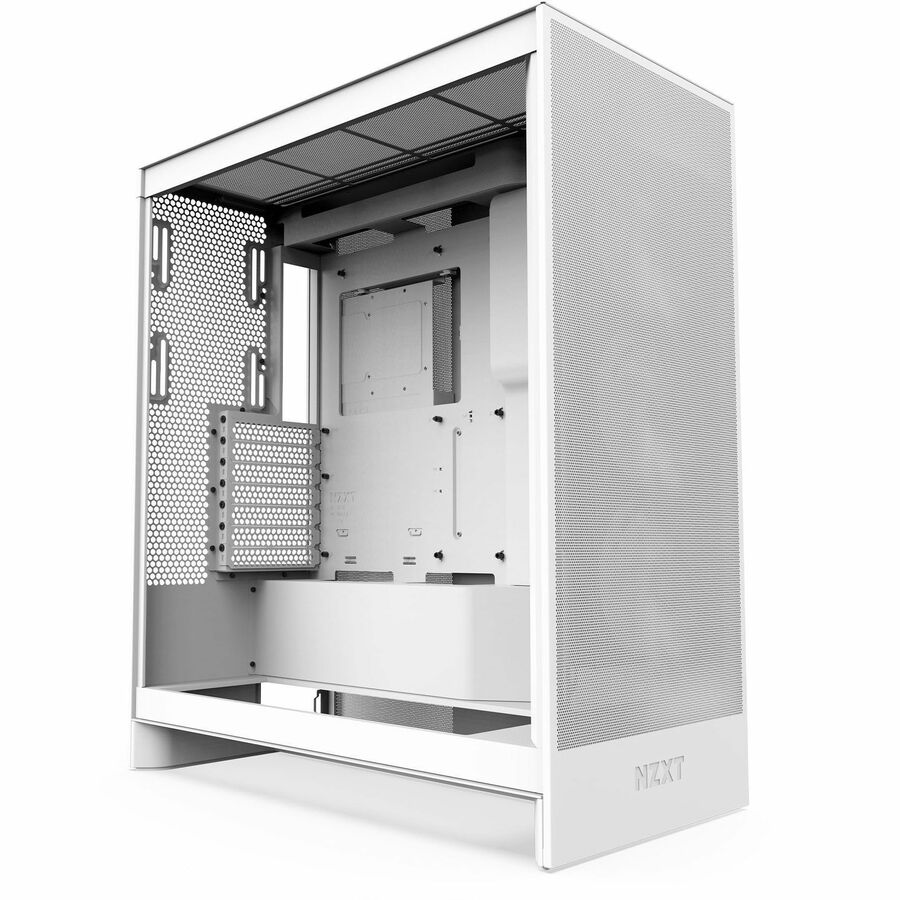

NZXT H7 Flow CM-H72FW-01 Computer Case - ATX Motherboard Supported - Mid-tower - Galvanized Cold Rolled Steel (SGCC), Tempered Glass - Matte White - 7 x Fan(s) Supported - 2 x Internal 3.5" Bay(s) - 4 x Internal 2.5" Bay(s) - 7 x Slot(s) - 3 x USB(s) - 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 (Gen 2) Type C - 1 x Audio In - 1 x Audio Out - Fan Cooler

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

  • Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
  • Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
  • High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
  • Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
  • Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
  • Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
  • Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
  • Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
  • Mid-tower structure offers a cooler place for other hardware components by supporting up to 7 fan(s)
  • Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability

Technical Specifications

I/O Expansions
Total Number of Expansion Slots7
Miscellaneous
Package Contents
  • H7 Flow Mid-Tower ATX Airflow Case
  • 3 x F120Q Airflow Fan (pre-installed, case version)
  • 1 x Installation Accessories
  • 1 x Manual
Bays
"Number of Internal 2.5"" Bays"4
"Number of Internal 3.5"" Bays"2
Interfaces/Ports
Front USBYes
Front Audio InYes
Front Audio OutYes
Total Number of USB Ports3
Total Number of Audio In Ports1
Total Number of Audio Out Ports1
USB Port Details2 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 (Gen 2) Type C
Technical Information
Motherboard SupportedATX
EATX
Micro ATX
Mini ITX
FeaturesCable Management
Dust Filter
Number of Fans Supported7
Number of Fans Installed3
Fan Size Supported120 mm
Installed Fan Size120 mm
General Information
Product TypeComputer Case
Manufacturer Part NumberCM-H72FW-01
Manufacturer Website Addresshttp://www.nzxt.com
Packaged Quantity1
ManufacturerNZXT Corporation
Product ModelCM-H72FW-01
Product NameH7 Flow Mid-Tower ATX Airflow Case
Product LineH7 Flow
Brand NameNZXT
Physical Characteristics
Weight (Approximate)11.13 kg
Form FactorMid-tower
Cooler TypeFan Cooler
Height544 mm
Width244 mm
Depth468 mm
Product ColorMatte White
Maximum CPU Cooler Height185 mm
Maximum PSU Length200 mm
Color FamilyWhite
Product MaterialGalvanized Cold Rolled Steel (SGCC)
Tempered Glass
Maximum GPU Length410 mm

Price Trend

Current Price
AUD 171.82
