H9 FLOW EDITION ATX MID TOWER CHASSIS AL
H9 FLOW EDITION ATX MID TOWER CHASSIS AL
Product Overview

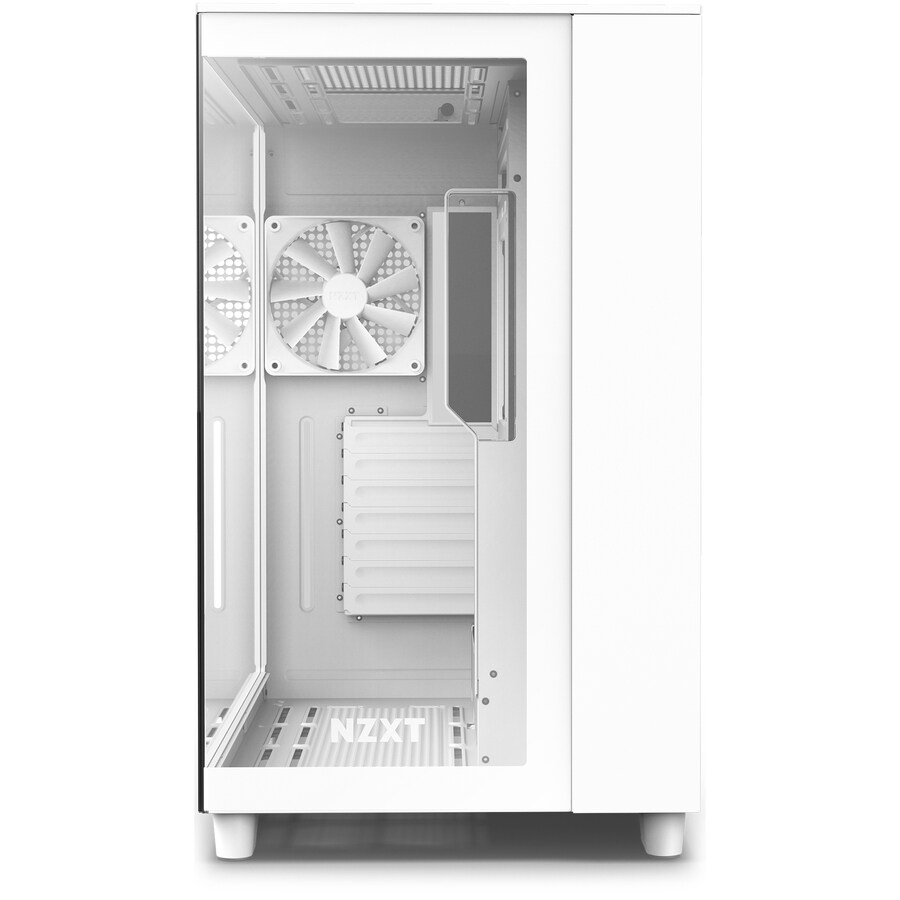

NZXT H9 Flow CM-H91FB-01 Computer Case - Mini ITX, Micro ATX, ATX Motherboard Supported - Mid-tower - Galvanized Cold Rolled Steel (SGCC), Tempered Glass - Matte White - 8 x Bay(s) - 10 x Fan(s) Supported - 2 x Internal 3.5" Bay(s) - 6 x Internal 2.5" Bay(s) - 8 x Internal 2.5"/3.5" Bay(s) - 7 x Slot(s) - 3 x USB(s) - 1 x Audio In - Fan Cooler
The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring the capacity for ten fans and numerous 360mm radiator mounting options and the perforated top panel takes cooling even further.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Perforated top panel for enhanced cooling
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes four F Series 120mm Quiet Airflow fans
- Mid-tower structure grants ample space for more hardware components
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- Total 8 expansion bays help in upgrading the system by increasing number of hardware components
Technical Specifications
I/O Expansions
| Total Number of Expansion Slots | 7 |
Miscellaneous
| Package Contents |
|
Bays
| "Number of Internal 2.5"" Bays" | 6 |
| "Number of Internal 3.5"" Bays" | 2 |
| Number of Total Expansion Bays | 8 |
| "Number of Internal 2.5""/3.5"" Bays" | 8 |
Physical Characteristics
| Weight (Approximate) | 12.10 kg |
| Form Factor | Mid-tower |
| Cooler Type | Fan Cooler |
| Height | 495 mm |
| Width | 290 mm |
| Depth | 466 mm |
| Product Color | Matte White |
| Maximum CPU Cooler Height | 165 mm |
| Maximum PSU Length | 200 mm |
| Color Family | White |
| Product Material | Tempered Glass |
| Galvanized Cold Rolled Steel (SGCC) |
Interfaces/Ports
| Front USB | Yes |
| Front Audio In | Yes |
| Total Number of USB Ports | 3 |
| Total Number of Audio In Ports | 1 |
Technical Information
| Motherboard Supported | Micro ATX |
| ATX | |
| Mini ITX | |
| Number of Fans Supported | 10 |
| Number of Fans Installed | 4 |
| Installed Fan Size | 120 mm |
General Information
| Product Type | Computer Case |
| Manufacturer Part Number | CM-H91FW-01 |
| Manufacturer Website Address | http://www.nzxt.com |
| Manufacturer | NZXT Corporation |
| Product Model | CM-H91FB-01 |
| Product Name | H9 Flow Dual-Chamber Mid-Tower Airflow Case |
| Product Line | H9 Flow |
| Brand Name | NZXT |
