Product Overview

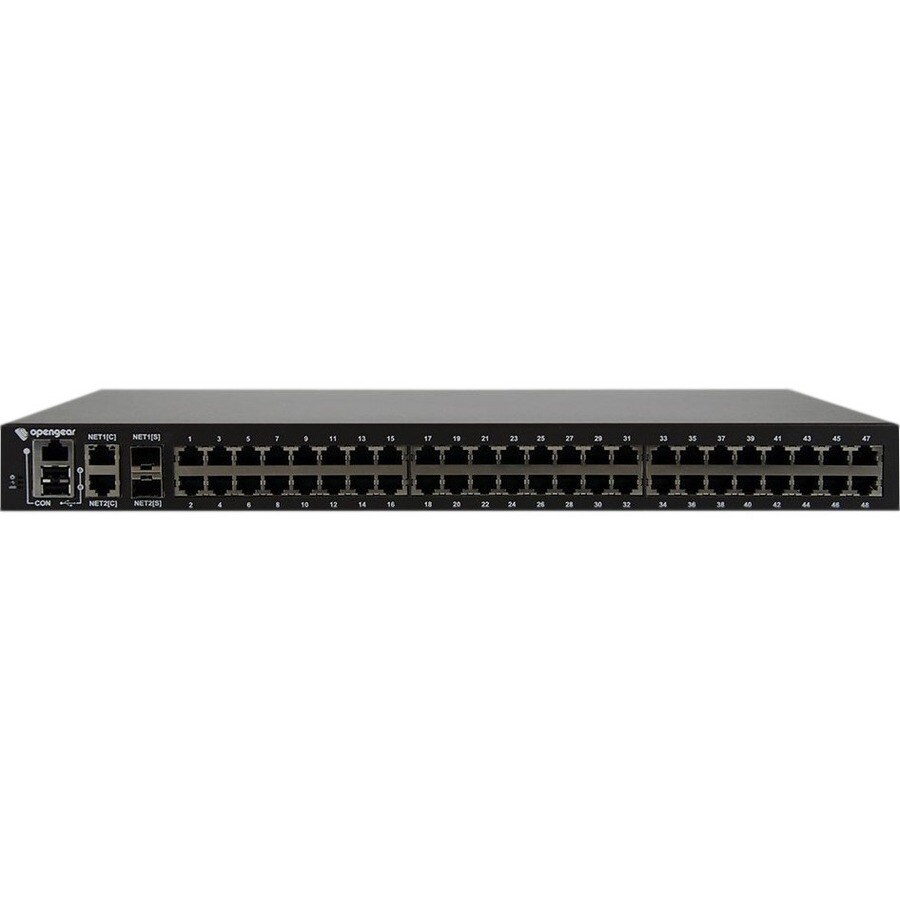

96 Port Console Server Cisco Straight pinout, Dual AC PSU, 2x1GbE, 4GB flash, 4 Year Warranty

The Opengear CM7100 is a feature-rich console server that simplifies out-of-band management for your network, server and power infrastructure in data centers and remote sites. Powerful monitoring, diagnostics and remediation features enable efficient recovery from infrastructure fault conditions and maximize uptime. An intuitive dashboard with proactive alerting provides network and IT administrators with real-time status of the core infrastructure.

  • 16-96 serial ports, out-of-band management of network and server devices
  • Simple straight-through cabling to Cisco®-style serial consoles
  • Integrated RESTful API engine on devices running firmware 4.0 or higher
  • AAA including Active Directory and TACACS+ integration, lock down access per user and group

Technical Specifications

I/O Expansions
Total Number of Expansion Slots2.0
Technical Information
Device TypeConsole Server
Media & Performance
Media Type SupportedTwisted Pair
Optical Fiber
Memory
Standard Memory1.95 GB
Memory TechnologyDDR3 SDRAM
Processor & Chipset
Processor Speed800 MHz
Processor ManufacturerMarvell
Network & Communication
Network Standard1000Base-X
10/100/1000Base-T
Ethernet TechnologyGigabit Ethernet
Interfaces/Ports
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports2
Serial PortYes
Management PortYes
Number of Serial Ports96
Miscellaneous
Package Contents
  • CM7196A Device Server
  • Rack Mount Kit - Two Ears and Screws
  • 2 x CAT5 Patch Cable 6'
  • Cable Kit - 319014 DB9F-RJ45 Straight, 319015 DB9F-RJ45 Crossover, 319016 DB9M-RJ45 Straight, Loopback Test Cable
  • Quick Start Guide
  • AU Power Cord
Certifications & Standards

    Emissions:

    • FCC Part 15 Subpart B Class A
    • ICES-003 Issue 4 February 2004
    • AS/NZS CISPR 22: 2004 Class A
    • EN 55022 Emissions Class A (2009) A1 (2010)
    • EN 55022 Emissions Class A (2009) A1 (2010)
    • EN 61000-3-2 Harmonics Current Emissions (2014)
    • EN 61000-3-3 Voltage Fluctuation and Flicker (2013)
    Immunity:
    • EN 55024 ITE Immunity (2010)
    • IEC 61000-4-2 (2008)
    • IEC 61000-4-3 (2006) A1 (2007) A2 (2010)
    • IEC 61000-4-4 (2012)
    • IEC 61000-4-5 (2014)
    • IEC 61000-4-6 (2013)
    • IEC 61000-4-8 (2009)
    • IEC 61000-4-11 (2004)
    Other Agency Approvals:
    • CE
    • UL 1950
    • TUV
    • C-Tick
    • Security features to support NERC CIP standards
    • FIPS 140-2 validated module Certificate #1051
    • CCC
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Physical Characteristics
Weight (Approximate)4.08 kg
Height44.5 mm
Width431.8 mm
Depth175.3 mm
General Information
Product TypeDevice Server
Manufacturer Part NumberCM7196A-2-DAC-AU
Manufacturer Website Addresshttp://www.opengear.com
ManufacturerOpengear
Product ModelCM7196A
Product NameCM7196A Device Server
Product SeriesCM7100
Brand NameOpengear

Price Trend

Current Price
AUD 12,961.82
