CATALYST MICRO SWITCH 1 X COPPER + 1 SFP
CATALYST MICRO SWITCH 1 X COPPER + 1 SFP
Product Overview

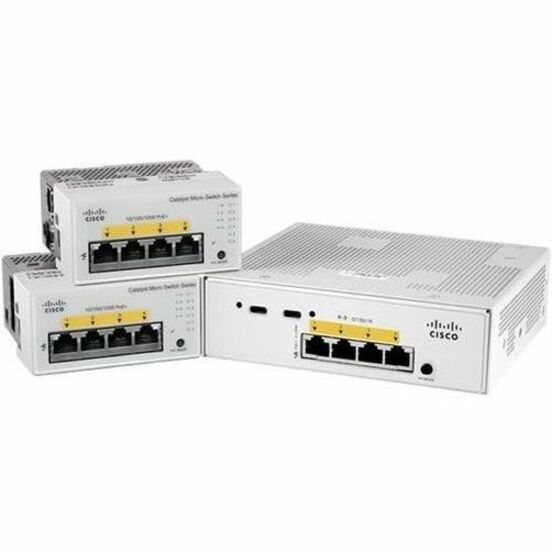

Catalyst Micro Switch 1 x copper + 1 SFP REMANUFACTURED
The Cisco® Catalyst® Micro Switches are Cisco's purpose-built product family for FTTx deployments, allowing customers to eliminate IDF, save precious real estate, conserve energy, and cut cabling costs.
Product overview
Fiber to the desk, office, etc. (FTTx) is not a new concept. In this deployment scenario, the improved range of fiber optics over copper cables allows access switches to be deployed right next to the end devices, with uplinks connected directly to the main distribution frame, eliminating the need for an intermediate distribution frame on each floor. However, as access switches get closer to the end users, the requirements for operating noise and product footprint get stricter. Enter the Cisco Catalyst Micro Switches, a product family of small, fanless switches purpose-built for FTTx deployments. These switches offer flexible mounting options and open up a variety of network design and connectivity opportunities.
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Quickly and easily set up a wired network with 5 networking ports
Technical Specifications
| Layer Supported | 2 |
| Power Source | Power Adapter |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 60 W |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 1.0 |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | CMICR4PCRF |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | CMICR-4PC |
| Product Name | Catalyst CMICR-4PC Ethernet Switch |
| Product Line | Catalyst |
| Brand Name | Cisco |
| Product Condition | Refurbished |
| Network Technology | 1000Base-T |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| 4 x Gigabit Ethernet PoE+ | |
| 1 x Gigabit Ethernet Network |
| Weight (Approximate) | 598.7 g |
| Form Factor | DIN Rail Mountable |
| Wall Mountable | |
| Height | 45.5 mm |
| Width | 89.9 mm |
| Depth | 78.7 mm |
