Product Overview

UC Phone 8861

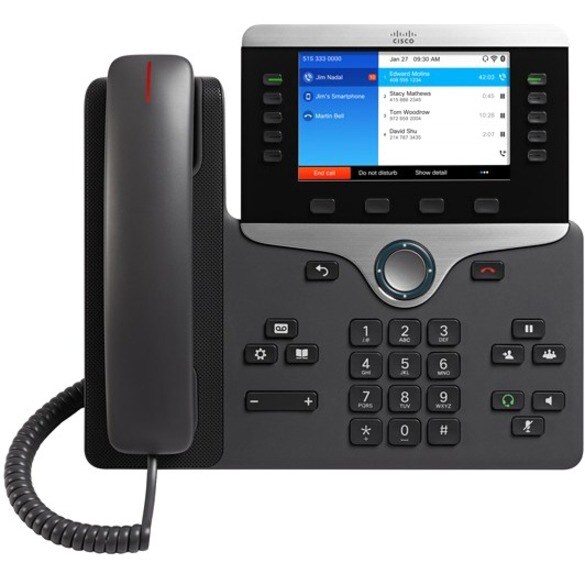

The Cisco® IP Phone 8861 is a business-class collaboration endpoint that combines high-fidelity, reliable, secure, and scalable voice communications with Cisco Intelligent Proximity for telephony integration for personal mobile devices to support midsize to large enterprise businesses.

With the IP Phone 8861, you can increase personal productivity through an engaging user experience that is both powerful and easy-to-use. The IP Phone 8861 combines an attractive new ergonomic design with wideband audio for crystal clear voice communications, "always-on" reliability, encrypted voice communications to enhance security, and access to a comprehensive suite of unified communications features from Cisco communication servers.

In addition, Cisco Intelligent Proximity brings the worlds of desk and mobile together for you when you are using your mobile device at the desk for your work. You can move the audio path over to the IP Phone 8861 during active mobile calls to take advantage of its superior audio acoustics. An example would be to share a conversation with a colleague who you want to listen in. This capability gives you greater flexibility and a superior user experience when at your desk.

The IP Phone 8861 comes standard with two USB ports so you can charge your personal mobile devices when at your desk, and stay connected when away from your desk.

The Cisco IP Phone 8861 offers five programmable line keys. You can configure keys to support either multiple directory numbers or calling features such as speed dial. You can also boost productivity by handling multiple calls for each directory number using the multicall-per-line feature. Fixed-function keys give you one-touch access to applications, messaging, directory, as well as often-used calling features such as hold/resume, transfer, and conference. A five-way navigation cluster helps you transition through menus more easily. Backlit acoustic keys provide flexibility for audio path selection and switching.

  • Enjoy crystal-clear voice calls travelled over the internet with the efficient VoIP technology
  • With PoE port, transfer data and power on a single cable to places where a power outlet is absent
  • Enjoy the internet to its max and get cost-effective voice communication to areas like lobbies, guest rooms, and conference halls

Technical Specifications

Physical Characteristics
Product ColorBlack
Color FamilyBlack
Display & Graphics
Display ColorColour
Screen Resolution800 x 480
BacklightYes
Miscellaneous
Certifications & Standards
    Regulatory compliance:
    • CE Markings per directives 2004/108/EC and 2006/95/EC
    Safety:
    • UL 60950 Second Edition
    • CAN/CSA-C22.2 No. 60950 Second Edition
    • EN 60950 Second Edition (including A11 & A12)
    • IEC 60950 Second Edition (including A11 & A12)
    • AS/NZS 60950
    • GB4943

    EMC - Emissions:

    • 47CFR Part 15 (CFR 47) Class B
    • AS/NZS CISPR22 Class B
    • CISPR22: 2005 w/Amendment 1: 2005 Class B
    • EN55022: 2006 w/Amendment 1: 2007 Class B
    • ICES003 Class B
    • VCCI Class B
    • EN61000-3-2
    • EN61000-3-3
    • KN22 Class B

    EMC - Immunity:

    • EN55024
    • CISPR24
    • EN60601-1-2
    • KN24
    • Armadillo Light
    Telecom:
    • FCC Part 68 HAC
    • CS-03-HAC
    • AS/ACIF S004
    • AS/ACIF S040
    • NZ PTC 220
    • Industry Standards: TIA 810 and TIA 920
    • Industry Standards: IEEE 802.3 Ethernet, IEEE 802.3af and 802.3at
    • Korea (RRA Public Notification 2010-36, Nov 01, 2010)
    • Korea (RRA Announce 2011-2, Feb28, 2011)

    Radio:

    • FCC Part 15.247 (CFR 47)
    • FCC Part 2.1093 (BT RF Exposure TR)
    • RSS-102 (BT RF Exposure TR)
    • RSS-210
    • EN 300.328
    • EN50385 (BT RF Exposure TR)
    • EN 301-489-1
    • EN 301-489-17
    • EN 301-893
    • NCC LP0002
    • Korea (RRL No. 2006-128, RRL No. 2006-129)
    • Japan Bluetooth GFSK/EDR
Environmentally FriendlyYes
Energy StarYes
Technical Information
SpeakerphoneYes
Voice CodeciSAC
iLBC
G.729a
G.722
G.711u
G.711a
FeaturesDate and Time
Hands-free
Hearing Aid
Indicator
Intercom
Multilingual Menu
URI Dialing
Viewing the Call Log
Voice Mail
Wi-Fi
Call Waiting
Call Pick-up
Call Park
Call History
Call Forwarding
Bluetooth
(BLF) Busy Lamp Field
Auto-answer
IP Phone TechnologyVoIP
Dialer TypeKeypad
Total Number of Phone Lines5
Caller IDYes
Number of Programmable Phone Lines5
Handset Connectivity TechnologyCorded/Cordless
Base Unit Connectivity TechnologyCorded
Interfaces/Ports
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports2
Audio Line OutYes
Headset PortYes
PoE (RJ-45) PortYes
General Information
Product TypeIP Phone
Manufacturer Part NumberCP-8861-K9=
Manufacturer Website Addresshttp://www.cisco.com/c/en_au
ManufacturerCisco Systems, Inc
Product Model8861
Product NameIP Phone 8861
Product Series8800
Brand NameCisco
Management & Protocols
Communication ProtocolsLLDP-PoE
SIP
SDP
RTP
RTCP
CDP
DHCP
LLDP-MED
Quality of Service802.1Q VLAN Support
802.1p/q
Controls/Indicators
Buttons & Keys TypeCall Transfer
Conference
Directory
Headset
Hold Button
Line
Message
Mute
Navigation
Programmable
Redial
Speaker
Speed Dial
Volume Control
Application
