Back-UPS Connect 12V DC UPS w/ battery W
Back-UPS Connect 12V DC UPS w/ battery W
Product Overview

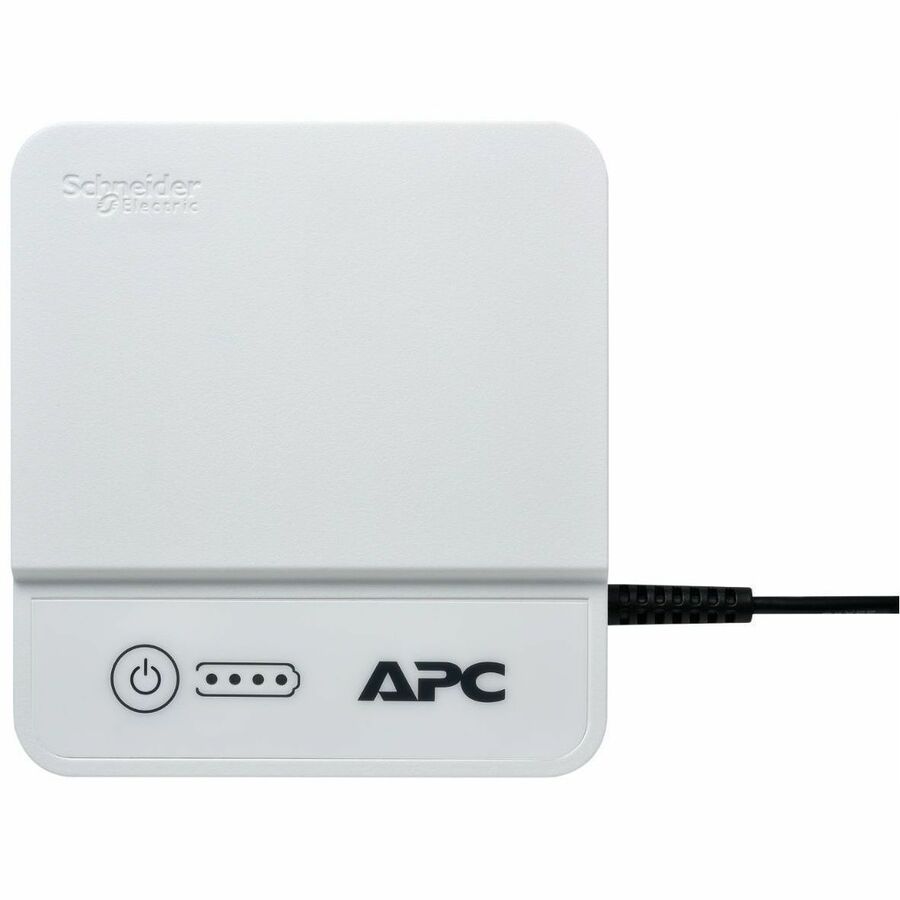

Back-UPS Connect 12V DC UPS w/ lithium-ion battery 27.75 Wh 4.1 A (max) 15 A fuse (fast acting fuse) +2 additional pair of DC tips (2.1mm and 1.7mm) IP20 Up to 4 hours of runtime
With APC Back-UPS Connect keep your network devices such as routers, smart home assistants, IP cameras connected and online during power outages. It is a compact UPS rated for 36W and 12Vdc input/output. Lithium-ion battery provides up to 4 hours of runtime for an average router to ensure reliable connectivity. The additional DC tips provided in the box ensure maximum compatibility with different brands of networking gear with 12V rating.
- DC Input/Output: Designed to support various 12 Vdc networking applications such as modems and routers.
- Multiple DC tips: Comes with 2 additional pair of DC tips for maximum compatibility
- Lithium-ion battery: Provides significantly longer service life than traditional VRLA battery.
- Long runtime: Up to 4 hours of runtime for an average router to ensure reliable connectivity.
- Compact design: Small footprint for easy installation in tight spaces.
Technical Specifications
Battery Chemistry | Lithium Ion (Li-Ion) |
Typical Battery Recharge Time | 9 Hour |
Input Voltage | 12 V DC |
Output Voltage | 12 V DC |
Load Capacity (Watt) | 36 W |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3.05 km |
Maximum Storage Elevation | 5 km |
Product Type | Standby UPS |
Manufacturer Part Number | CP12036LI |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Packaged Quantity | 1 |
Manufacturer | Schneider Electric SA |
Product Name | Back-UPS Connect 36W Compact UPS |
Product Line | Back-UPS Connect |
Brand Name | APC by Schneider Electric |
Application/Usage | Smart Home Device |
Router | |
Network Device | |
IP Camera | |
Modem |
Package Contents |
|
Certifications & Standards |
|
Environmentally Friendly | Yes |
Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
Restriction of Hazardous Substances (RoHS) |
Weight (Approximate) | 300 g |
Height | 25 mm |
Width | 99 mm |
Depth | 109 mm |
Product Color | White |
Color Family | White |
