PFC SINEWAVE SERIES 1600VA / 1000W
PFC SINEWAVE SERIES 1600VA / 1000W
Product Overview

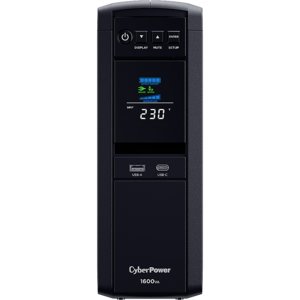

CyberPower Line-interactive UPS - 1.60 kVA/1 kW - Tower - AVR - 8 Hour Recharge - 2.60 Minute Stand-by - 230 V AC Input - 230 V AC Output - 2 x UK, 4 x IEC 60320 C13, 1 x USB Type A, 1 x USB Type C - Pure Sine Wave - Serial Port - USB - LCD Display - 6 x Battery/Surge Outlet - SNMP/HTTP Remote Monitoring, Dry Contact
The active PFC compatible UPS with tiltable color LCD panel to provide intuitive power information
Designed for home, office and back office applications, the PFC Sinewave Series adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized Pure Sine Wave output. The products are compatible with equipment requiring active PFC power supply. Other features include RJ45 port to provide data line protection as well as supply 1Gbps speed to transmit data, tiltable color LCD panel to display key information at a glance and power management software to achieve real-time monitoring and configuration.
SERIES FEATURES
- Line-interactive UPS Topology
- Energy Saving Technology
- Active PFC Compatible
- Pure Sine Wave Output
- Automatic Voltage Regulation (AVR)
- Color LCD Panel
- LED Status Indicator
- SNMP/HTTP Remote Management Capability (Optional)
- PowerPanel Management Software
- Surge and Spike Protection
- USB Charging Port(s)
- High-speed Ethernet Data Transmission
- Tower Form Factor
- Power On Indicator
- Power On/Off Switch
- Function Button(s)
- LCD Display Panel
- USB Charging Ports
- SNMP/HTTP Network Slot
- Communication Protection Port RJ45
- Battery Backup & Surge Protected Outlets
- Circuit Breaker
- USB Port
- Serial Port
- AC Inlet
Technical Specifications
| Status Indicators |
LED Indicators: |
| Display | LCD |
| Certifications & Standards | CE |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Thermal Dissipation | 24 BTU/h |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Weight (Approximate) | 11 kg |
| Height | 280 mm |
| Width | 100 mm |
| Depth | 355 mm |
| USB | Yes |
| Network (RJ-45) | Yes |
| Number of USB Ports | 2 |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Application/Usage | Office |
| Home | |
| Equipment | |
| Dataline Protection | RJ-45 |
| Surge Suppression | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | USB Type C |
| UK | |
| IEC 60320 C13 | |
| USB Type A | |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Number of Battery & Surge Outlets | 6 |
| Transfer Time | 8 ms |
| Receptacle Detail | 1 x USB Type A |
| 4 x IEC 60320 C13 | |
| 1 x USB Type C | |
| 2 x UK |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 9.70 Minute |
| Backup/Run Time (Full Load) | 2.60 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Network Management | Dry Contact |
| SNMP/HTTP Remote Monitoring | |
| Alarm | UPS Fault |
| Overload | |
| Low Battery | |
| Battery Mode |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | CP1600EPFCLCD |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Name | PFC Sinewave 1600VA Tower UPS |
| Product Series | PFC Sinewave |
| Brand Name | CyberPower |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 10 A |
| Surge Energy Rating | 405 J |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 169 V AC - 271 V AC |
| Output Frequency | 50 Hz |
| 60 Hz | |
| Input Frequency | 50 Hz |
| 60 Hz | |
| Load Capacity (VA) | 1.60 kVA |
| Load Capacity (Watt) | 1 kW |
