Spark Room Codec
Spark Room Codec
Product Overview
Spark Room Codec Plus (spare)

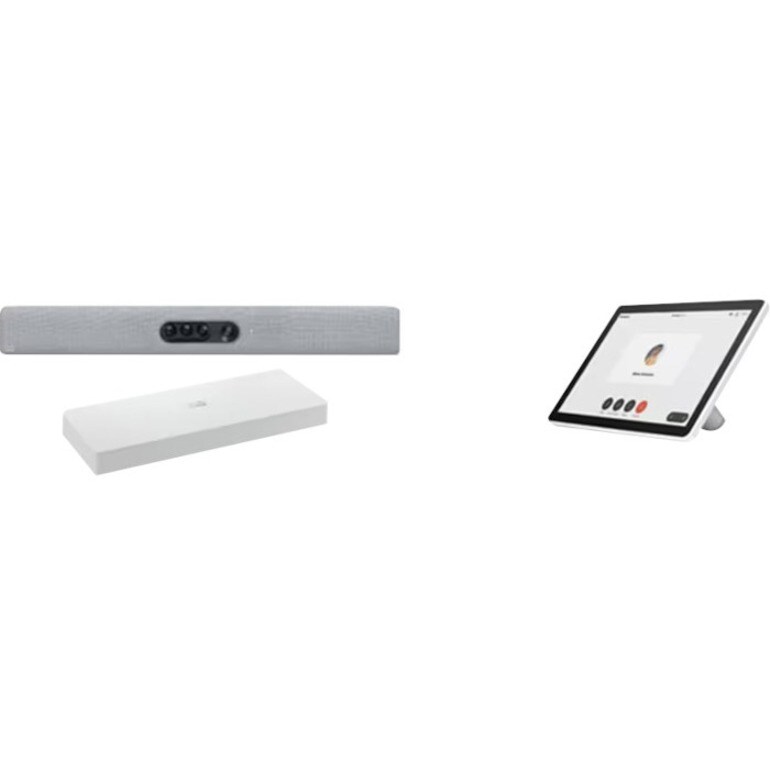

Cisco Webex Room Kit Plus delivers the unmatched video and audio experience customers have come to expect from Cisco. In addition, new capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations - further removing the barriers to usage and deployment of video in medium to large-sized rooms.The Room Kit Plus - comprising a powerful codec and a quad-camera bar with integrated speakers and microphones - is ideal for rooms that seat up to 14 people. It offers sophisticated camera technologies that bring speaker-tracking and auto-framing capabilities to medium to large-sized rooms. The product is rich in functionality and experience but is priced and designed to be easily scalable to all of your conference rooms and spaces - whether registered on the premises or to Cisco Webex.
Technical Specifications
Maximum Image Resolution | 5120 x 2880 |
Miscellaneous
TAA Compliant | Yes |
Network & Communication
Ethernet Technology | Gigabit Ethernet |
Camera
Image Sensor Size | 1/1.7 |
Image Sensor Type | CMOS |
Physical Characteristics
Weight (Approximate) | 4.81 kg |
Form Factor | Wall Mountable |
Height | 119.4 mm |
Width | 950 mm |
Depth | 101.6 mm |
Video
Video Encoding | H.264 |
H.265 | |
Maximum Frame Rate | 60 fps |
Maximum Video Resolution (Live) | 3840 x 2160 |
Graphics Modes (Live) | 4K UHD |
Audio
Audio Encoding | G.729 |
Opus | |
G.722.1 | |
G.722 | |
G.711 | |
AAC-LD |
Technical Information
Video Bridging | Point-to-Point |
ITU-T Recommendation | SIP |
H.460.18/19 | |
H.323 | |
H.264 | |
H.239 |
General Information
Product Type | Video Conference Equipment |
Manufacturer Part Number | CS-CODEC-PLUS++ |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Name | Webex Codec Plus Video Conference Equipment |
Product Line | Webex Codec Plus |
Brand Name | Cisco |
Interfaces/Ports
Number of Network (RJ-45) Ports | 3 |
Network (RJ-45) | Yes |
Audio Line Out | Yes |
Number of HDMI Inputs | 3 |
Number of HDMI Outputs | 2 |
HDMI In | Yes |
HDMI Out | Yes |
Number of Audio Line Out | 2 |
