Product Overview
None-Radio - Spark Room Kit with Touch10
Webex Room Kit is a powerful collaboration solution that integrates with flat panel displays to bring more intelligence and usability to your small to medium-sized meeting rooms-whether registered on the premises or to Webex in the cloud.

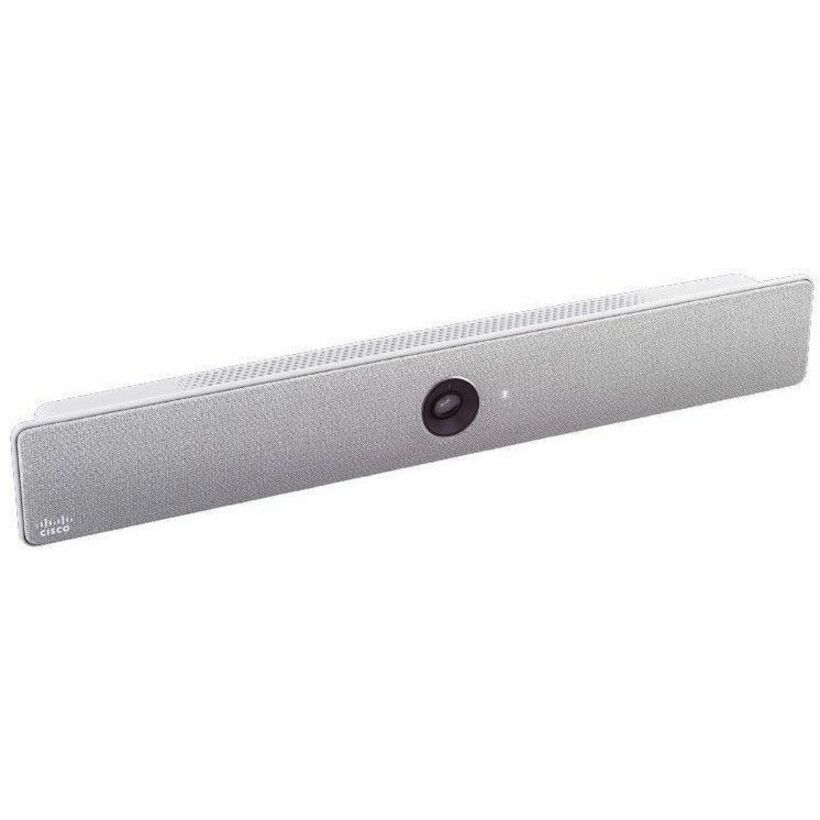

Webex Room Kit overview
Webex®Room Kit delivers the unmatched video and audio experience customers have come to expect from Cisco. In addition, new capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations-further removing the barriers to usage and deployment of video in small to medium-sized rooms.
The Room Kit-which includes camera, codec, speakers, and microphones integrated in a single device-is ideal for rooms that seat up to seven people. It offers sophisticated camera technologies that bring speaker-tracking capabilities to smaller rooms. The product is rich in functionality and experience but is priced and designed to be easily scalable to all of your small conference rooms and spaces-whether registered on the premises or to the Webex cloud service.
Technical Specifications
Operating System Supported | RoomOS |
Power Source | AC Supply |
Wireless LAN | Yes |
Image Sensor Size | 1/1.7 |
Image Sensor Type | CMOS |
Network Technology | 10/100/1000Base-T |
Ethernet Technology | Gigabit Ethernet |
Weight (Approximate) | 3.18 kg |
Height | 88.9 mm |
Width | 698.5 mm |
Depth | 73.7 mm |
Product Type | Video Conference Equipment |
Manufacturer Part Number | CSKITNRK9 |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | TTC7-23 |
Product Name | Room Kit-NO RADIO |
Brand Name | Webex |
Features | Noise Reduction |
Kensington Lock | |
Dual Stream | |
ITU-T Recommendation | H.235v3 |
H.239 | |
H.460.18/19 | |
SIP |
Video Encoding | H.264 |
H.265 | |
Maximum Frame Rate | 60 fps |
Maximum Video Resolution (Live) | 1920 x 1080 |
Maximum Video Resolution (Content) | 3840 x 2160 |
Graphics Modes (Live) | Full HD |
Graphics Modes (Content) | 4K UHD |
Audio Encoding | G.729 |
G.722.1 | |
G.722 | |
G.711 | |
AAC-LD | |
Opus | |
Speaker Form Factor | Internal |
Microphone Form Factor | Internal |
USB | Yes |
Number of Network (RJ-45) Ports | 2 |
Network (RJ-45) | Yes |
Audio Line Out | Yes |
Number of HDMI Inputs | 1 |
Number of HDMI Outputs | 2 |
HDMI In | Yes |
HDMI Out | Yes |
Number of Audio Line Out | 1 |
