CATALYST 9163E APW6E TRI-BAND 2X2OUTDO
CATALYST 9163E APW6E TRI-BAND 2X2OUTDO
Product Overview

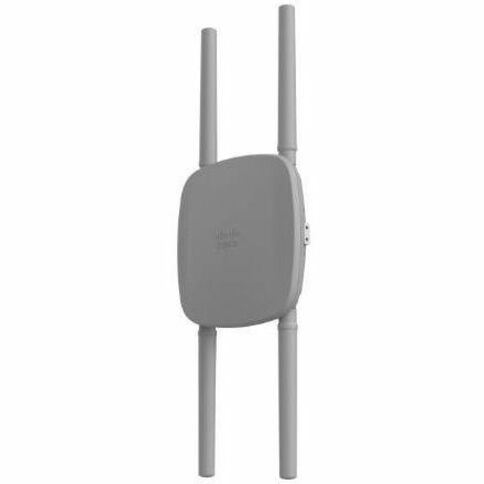

CATALYST 9163E APW6E TRI-BAND 2X2OUTDOOR W/MERAKI
The Cisco Wireless 9163E is an outdoor-rated, enterprise-class 802.11ax on-prem or cloud-managed access point. This AP is equipped with Tri-Band concurrent radios geared towards low/medium density applications. It will work with different external antennas for required directivity.
It features 2x2 Tri-Band traffic radios (2x2 2.4 GHz + 2x2 5 GHz + 2x2 6 GHz), 1x1 Tri-Band scanning radio and a 2.4 GHz IoT radio for (BLE/Zigbee/Thread etc.). It also has an inbuilt GNSS receiver for 6 GHz AFC compliance.
- Its management capability provides efficient control over setup and configuration of your network
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
- When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
Technical Specifications
Network & Communication
| Wi-Fi Generation | Wi-Fi 6E |
Interfaces/Ports
| Ethernet Technology | Gigabit Ethernet |
| 2.5 Gigabit Ethernet | |
| Number of Network (RJ-45) Ports | 1 |
| Management Port | Yes |
| PoE PD Port | Yes |
Technical Information
| Network Band | Tri Band |
| Wireless Transmission Speed | 3.90 Gbit/s |
| Frequency Band | 6 GHz |
| 5 GHz | |
| 2.40 GHz | |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/h/d/r/ac/ax |
| Encryption Standard | AES |
| WPA3-Personal | |
| WPA3-ENT | |
| WPA3 | |
| WPA2-PSK | |
| WPA2-ENT | |
| Data Encryption | Yes |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
Physical Characteristics
| Weight (Approximate) | 1.50 kg |
| Form Factor | Wall Mountable |
| Pole-mountable | |
| Height | 63.5 mm |
| Width | 245 mm |
| Depth | 245 mm |
| Antenna Form Factor | External |
General Information
| Product Type | Wireless Access Point |
| Manufacturer Part Number | CW9163EMR |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | CW9163E |
| Product Name | Catalyst CW9163E Wireless Access Point |
| Product Line | Catalyst |
| Brand Name | Meraki |
Price Trend
Current Price
AUD 4,730.48
