Product Overview

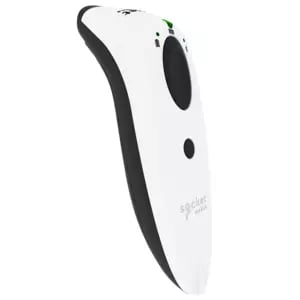

SocketScan S720 Linear Barcode QR Code Reader White Charging Stand
Linear Barcode Plus QR Code Scanner
The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It's lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.
The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.
- Compatible with Apple® iOS devices (iPad®, iPhone®, iPod Touch®) and Android, Windows®, Mac and Linux.
- Scanning - 2D and 1D barcode scanning.
- Auto Scan Mode - Presentation Mode (automatic scanning) provides continuous scanning capabilities without pressing the scan button.
- Exceptional Ergonomics - Small, light and fits perfectly in hand for comfortable use over extended periods.
- Long-Lasting, Replaceable, Rechargeable Battery - Power to last over 16 hours on a single charge.
- User Indicators - Intuitive LEDs for Bluetooth connection, battery level and scanning status.
- User Feedback - Audible tones and pulsation.
- LED Aimer - Bright, rectangular illumination field with LED pointer for precise aiming.
- Decoding Ability - Reads damaged and poorly printed barcodes.
- Developer Support Available - The Socket Mobile development team is available to help integrate CaptureSDK into your app.
Technical Specifications
| Additional Warranty Information | Optional extended warranty options available. |
| Battery Included | Yes |
| Battery Weight | 54.5 g |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Barcode Symbology Supported |
|
| Display Screen | Yes |
| Connectivity Technology | Wireless |
| Scanning Distance | 380 mm |
| Light Source | LED |
| Drop Specification | 4 ft. drop to linoleum |
| Scan Pattern | Linear |
| Image Sensor Type | Imager |
| Stand Included | Yes |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 0.13 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Weight (Approximate) | 116.2 g |
| Form Factor | Handheld |
| Product Color | White |
| Product Type | Barcode Scanner |
| Manufacturer Part Number | CX4068-3131 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Manufacturer | Socket Mobile, Inc |
| Product Model | S720 |
| Product Name | SocketScan S720 Linear Barcode Scanner |
| Brand Name | Socket Mobile |
| Application/Usage | Delivery |
| Asset Tracking | |
| Inventory | |
| Loyalty Program | |
| Ticketing | |
| Transportation | |
| Hospitality | |
| Package Contents |
|
| Compatibility | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
