Product Overview

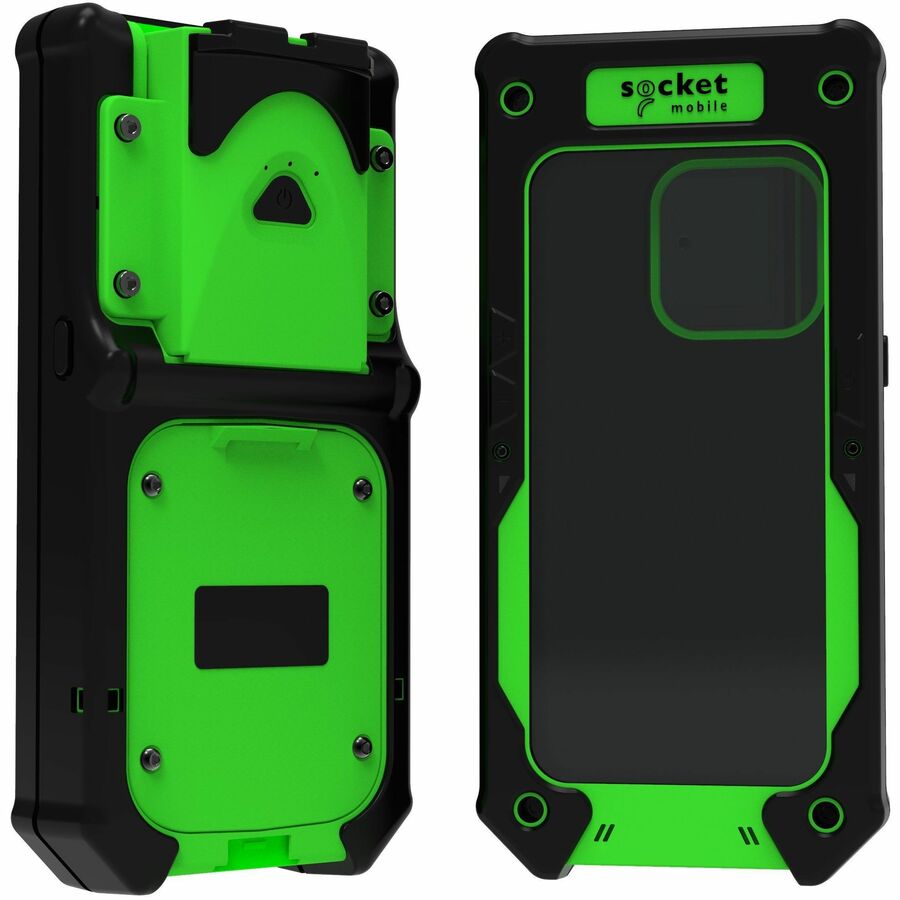

XtremeScan XS930 Laser Barcode Reader for iPhone 14/13/12 iPhone 14/13/12 Pro
The XtremeScan XS930 is a modular, rugged, handheld mobile data reader that combines an iPhone case and 1D laser barcode reader to form a one-handed, industrial-grade scanning solution. It features long-range scanning capability, making it ideal for applications scanning barcodes on floor labels and rack labels on high shelves. The integration of the scanner with a heavy-duty case is designed to withstand heavy use in demanding industrial environments. The XtremeScan case provides IP67 sealed housing and protects against jets of low-pressure water. It includes an integrated wireless charger, so you can charge the iPhone without removing it from the case.
With a compatible iPhone, the XtremeScan XS930 laser barcode scanner becomes a versatile and powerful mobile solution that can be used with a variety of industrial applications. The XS930 has a class 2 laser that scans through plastic or glass, in bright or poor lighting conditions, sideways, upside down, or straight at imperfect barcodes. Depending on the barcode symbology, width, size, and label media, the XS930 can scan from 1.2 inches (3.0 cm) to 180 inches (457.2 cm). The industrial-grade, rugged housing can handle multiple drops onto concrete.
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
- Increase productivity and performance by excluding the cable
- Increases productivity by giving the opportunity to wander, without the tangle of cables
- Laser scan engine guarantees rapid error free data entry
Technical Specifications
Bluetooth | Yes |
Battery Chemistry | Lithium Polymer (Li-Polymer) |
Battery Capacity | 700 mAh |
Battery Included | Yes |
Maximum Battery Run Time | 25 Hour |
Maximum Battery Recharge Time | 8 Hour |
Battery Weight | 12.5 g |
Durability | Water Resistant |
Dust Resistant | |
Drop Resistant | |
Form Factor | Handheld |
Rugged | Yes |
Product Material | Rubber |
Connectivity Technology | Wireless |
Features | Notification LED |
Scan Button | |
Scanning Distance | 4.57 m |
Light Source | Laser |
Scanner Range | Long Range |
Scanning Capability | 1D |
Maximum Ambient Light | 86000 lux |
Minimum Print Contrast | 25% |
Minimum Element Resolution (Code 39) | 0.13 mm |
Maximum Element Resolution (Code 39) | 2.54 mm |
Product Type | Barcode Scanner |
Manufacturer Part Number | CX4180-3247 |
Manufacturer Website Address | http://www.socketmobile.com |
Manufacturer | Socket Mobile, Inc |
Product Model | XS930 |
Product Name | XtremeScan XS930 1D Laser Barcode Reader |
Product Line | XtremeScan |
Brand Name | Socket Mobile |
Application/Usage | Manufacturing |
Transportation | |
Warehouse | |
Inventory | |
Asset Tracking | |
Commercial Service | |
Component Tracking | |
Industrial | |
Compatibility |
|
Platform Supported | PC |
iOS | |
Android | |
Ingress Protection (IP) Rating | IP65 |
IP67 |
