WIRELESS AC2200 WAVE 2 TRI-BAND POE AP
WIRELESS AC2200 WAVE 2 TRI-BAND POE AP
Product Overview

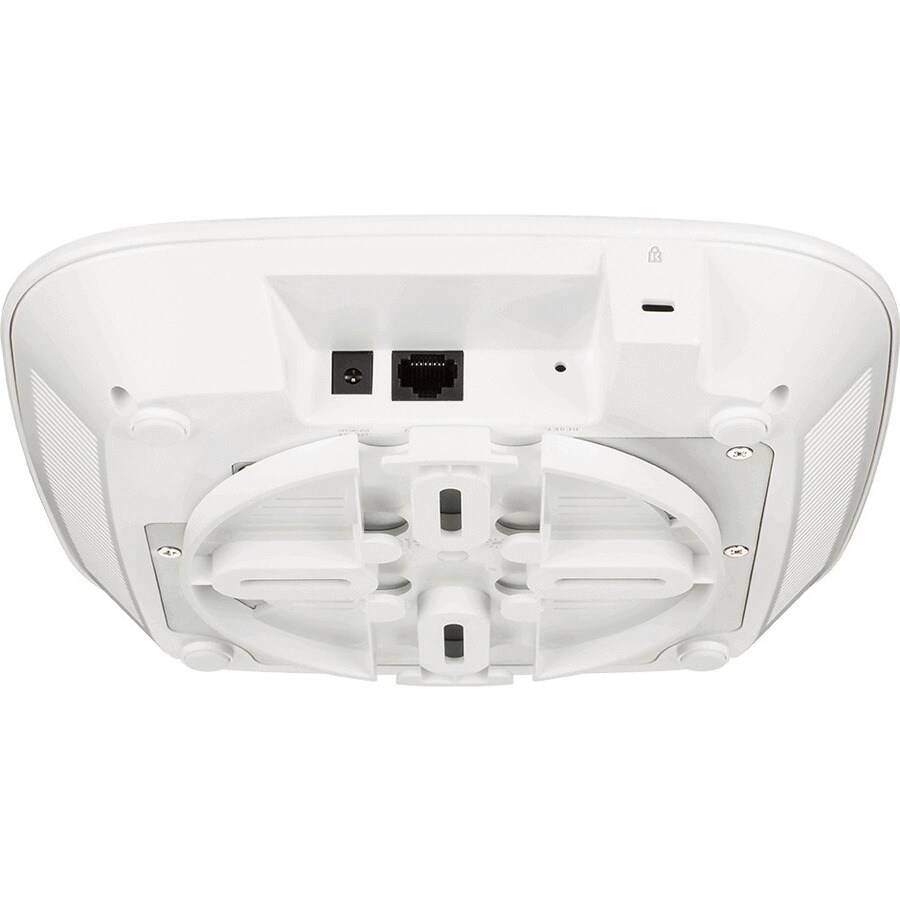

D-Link Nuclias DAP-2720 Tri Band IEEE 802.11ac 2.15 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - 6 x Internal Antenna(s) - Internal - 1 x Network (RJ-45) - Gigabit Ethernet - PoE Ports - 15.74 W
Nuclias Connect Overview
Welcome to Nuclias Connect, D-Link's centralize dmanage ment solution for Small-to-Medium-Sized Business (SMB) networks. Nuclias Connect makes it easier to analyze, automate, configure, optimize, scale, and secure your network - delivering the convenience of an enterprise-wide management solution, at an SMB price.
Solution Features
- Free-to-Download Nuclias Connect Management Software
- License-Free Access Points
- Backwards-Compatibility
- Intuitive Interface
- Inexpensive Hardware Controller
- Traffic Reporting and Analytics
- Remote Configuration and Batch Configuration.
- Multi-Tenant and Role-Based Administration
- Searchable and Auditable Event and Change Logs
- 802.1x1 and RADIUS Server, POP3, LDAP
- Multilingual Support
- Front-Desk Ticket Management
- Authentication and Payment Gateway (Paypal)
- Integration via Customizable Captive Portal
Solution Benefits | 1 / Network-Wide Management
Free to download on Windows server (or Linux via Docker), the Nuclias Connect software currently supports numerous new and legacy D-Link Access Point (AP) models, and is capable of managing up to one thousand APs without the need for additional licensing charges. Coupled with a local lite management Smartphone app and an inexpensive optional hardware controller (The Hub*), Nuclias Connect is even suitable for remote locations where a dedicated PC or server might not be practical.
2 / Flexibility to Meet Your Needs
Through software-based monitoring and remote management of all wireless Access Points (APs) on your network, Nuclias Connect offers tremendous flexibility compared to traditional hardwarebased management systems. Configuration can be done remotely and management software is customizable. Nuclias Connect enables control and analytics of a broad or fine granularity, presentable in a variety of formats. Additionally, admins can provide and manage a variety of distributed deployments, including the option to configure settings and customize admin accounts in a specific manner for each deployment. Nuclias Connect gives you the financial and technical flexibility to expand from a small network to a large one (up to 1,000 APs), while retaining a robust and centralized management system.
- Gigabit Ethernet port for ultra-fast wired network speeds
- Up to 10x faster than standard Ethernet connectivity for your wired network
- Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
- With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
- Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
- Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11ac technology and speeds up to 2.15 Gbit/s
- With IEEE 802.11ac standard and up to 2.15 Gbit/s data transfer rates, this wireless access point enables efficient network performance
Technical Specifications
| Power Consumption | 15.74 W |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE (RJ-45) Port | Yes |
| PoE PD Port | Yes |
| Network Band | Tri Band |
| Wireless Transmission Speed | 2.15 Gbit/s |
| Frequency Band | 2.40 GHz |
| 5 GHz | |
| Wireless LAN Standard | IEEE 802.11ac |
| Encryption Standard | 128-bit |
| 128-bit WEP | |
| 64-bit WEP | |
| Total Number of Antennas | 6 |
| Number of Internal Antennas | 6 |
| Data Encryption | Yes |
| Weight (Approximate) | 721.8 g |
| Height | 212.4 mm |
| Width | 212.4 mm |
| Depth | 47.7 mm |
| Antenna Form Factor | Internal |
| Product Type | Wireless Access Point |
| Manufacturer Part Number | DAP-2720 |
| Manufacturer Website Address | http://www.dlink.com.au |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DAP-2720 |
| Product Name | Nuclias Connect AC2200 Wave 2 Tri-Band PoE Access Point |
| Product Line | Nuclias |
| Brand Name | D-Link |
