24X 10/100MBPS 250W POE+ 2X COMBO SFP
24X 10/100MBPS 250W POE+ 2X COMBO SFP
Product Overview

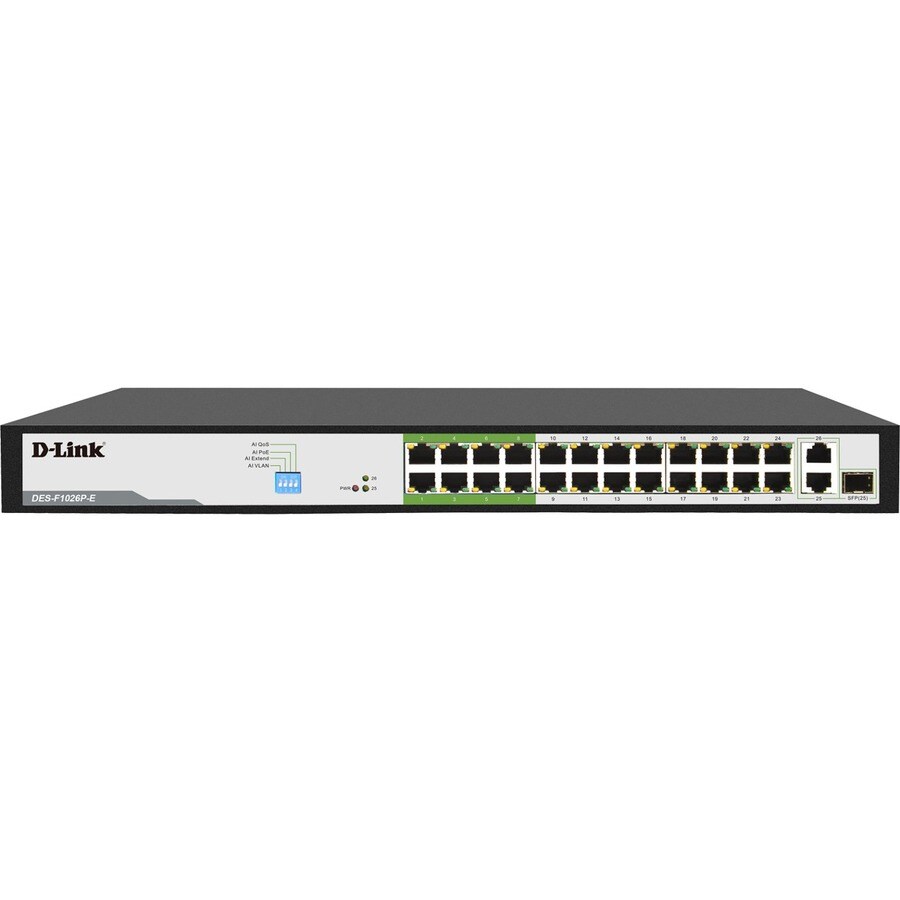

D-Link DES-F1026P-E 24 Ports Ethernet Switch - 2 Layer Supported - Modular - 1 SFP Slots - 250 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Desktop
Built for your Need
Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, AP etc
Up to 250m PoE and Data Transmission
Equipped with PoE extend technology, DES-F1026P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution
6KV Surge Protection
D-Link 250M is enhanced with 6KV surge protection effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position
Enhanced with VLAN Function
With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance
Enhanced with Video QoS
Improve the Video Packet Priority
Create high priority for video streaming, perfect solution for IP camera/CCTV
Intelligent Detection
Automatically Detect unresponsive PoE device and reboot the device for recovery
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- The desktop installation makes it ideal for deployments outside the wiring closet
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
Technical Specifications
| Layer Supported | 2 |
| Power Source | Power Adapter |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 250 W |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 1.0 |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 24 x Fast Ethernet PoE+ |
| 2 x Gigabit Ethernet TP/SFP Combo |
| Weight (Approximate) | 2.80 kg |
| Form Factor | Desktop |
| Height | 44 mm |
| Width | 440 mm |
| Depth | 180 mm |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DES-F1026P-E |
| Manufacturer Website Address | http://www.dlink.com.au |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DES-F1026P-E |
| Product Name | 250M 24-Port Fast Ethernet PoE Switch with 1 Gigabit Combo Uplink Port |
| Brand Name | D-Link |
| Network Technology | 10/100Base-T |
| 10/100/1000Base-T | |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Fast Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
