24-Port 10/100/1000Mbps + 4-Port SFP.
24-Port 10/100/1000Mbps + 4-Port SFP.
Product Overview

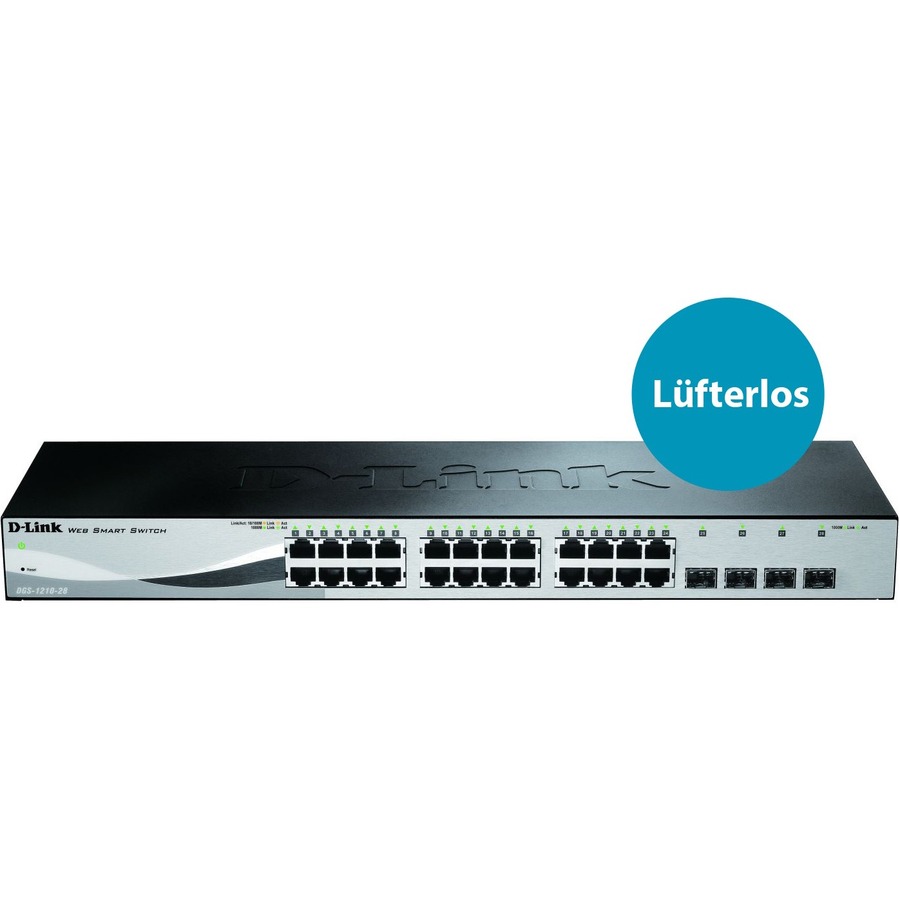

D-Link WebSmart DGS-1210 DGS-1210-28 24 Ports Manageable Ethernet Switch - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - 4 SFP Slots - Twisted Pair, Optical Fiber - 1U High - Desktop, Rack-mountable
The D-Link DGS-1210 Series is the latest generation of Web Smart switches to feature D-Link Green technology. Equipped with 10, 16, 24, or 48 10/100/1000Mbps ports and two or four combo 10/100/1000BASE-T/SFP ports, the series integrates advanced management and security functions that provide performance and scalability. Additionally, the 10/100/1000Mbps ports on the DGS-1210-10P are PoE enabled, offering ease-of-use and green features such as PoE scheduling, which allows for the power to be shut off at a pre-determined time. Management options for the DGS-1210 Series switches include SNMP, Web Management, SmartConsole Utility, and Compact Command Lines. The series also supports ACL filtering and the D-Link Safeguard Engine. The DGS-1210 Series uses Auto Voice VLAN, ensuring higher priority for voice traffic. The DGS-1210-10P comes with a fanless design in a compact 13-inch desktop enclosure; the DGS-1210-16 and DGS-1210-24 come in a fanless design with a 19-inch metal case. The DGS-1210-48 is equipped with two smart fans; these fans are set to low speed by default and will automatically switch to high speed once the temperature threshold has been reached. A fanless design allows for quieter operation and guarantees an extended lifetime, while smart fans help to considerably save power.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- The desktop installation makes it ideal for deployments outside the wiring closet
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
| Certifications & Standards |
|
| Layer Supported | 2 |
| Management |
|
| Manageable | Yes |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Flash Memory | 16 MB |
| Standard Memory | 128 MB |
| Memory Technology | DDR2 SDRAM |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DGS-1210-28 |
| Manufacturer Website Address | http://www.dlink.com.au |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DGS-1210-28 |
| Product Name | WebSmart DGS-1210-28 Ethernet Switch |
| Product Line | WebSmart |
| Product Series | DGS-1210 |
| Brand Name | D-Link |
| Form Factor | Desktop |
| Rack-mountable | |
| Compatible Rack Unit | 1U |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | No |
| Network Technology | 10/100/1000Base-T |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Token Ring Port | No |
| LRE Port | No |
| Number of Network (RJ-45) Ports | 24 |
| Modular | No |
| Bypass | No |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| 4 x Gigabit Ethernet Expansion Slot |
