Product Overview

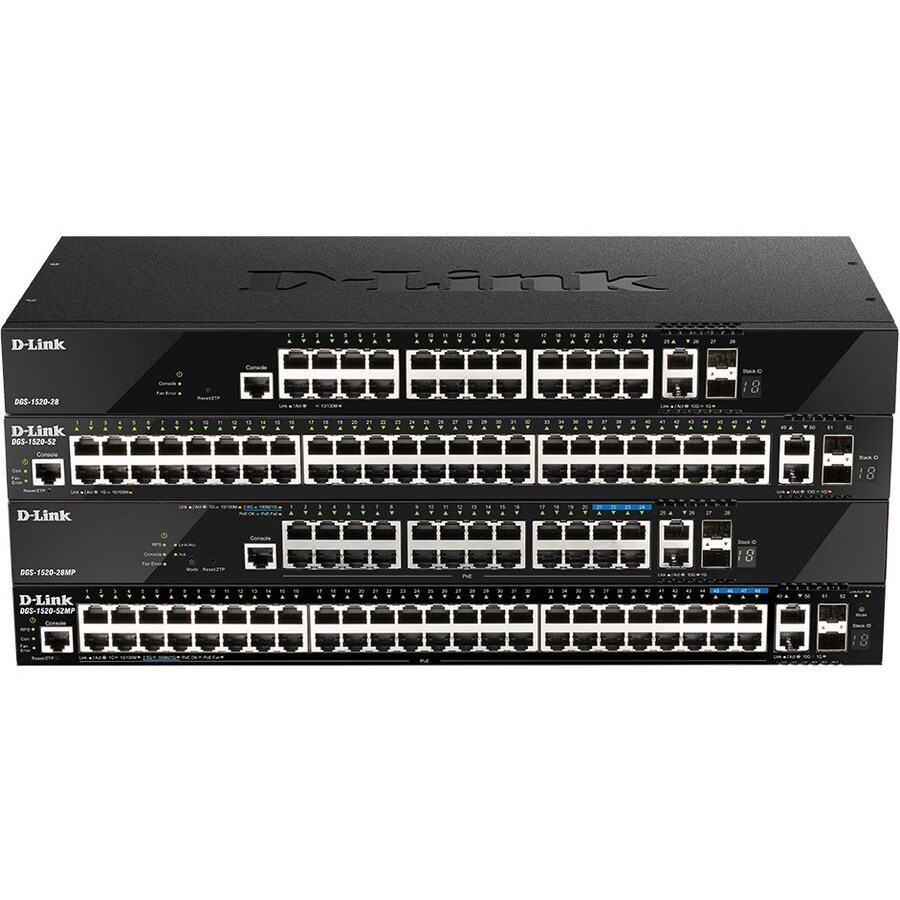

D-Link DGS-1520-52 50 Ports Manageable Layer 3 Switch - 3 Layer Supported - Modular - 51.20 W Power Consumption - Twisted Pair, Optical Fiber - 1U High - Rack-mountable
Next Generation Layer 3 Stackable Smart Managed Switch
A new generation of Layer 3 stackable Smart Managed switches to aggregate your Gigabit network with 10G ports for uplink or stacking.
High Availability and Flexibility
- 24 or 48 x 10/100/1000Base-T ports
- 20 or 44 x 10/100/1000Base-T PoE and 4 x 2.5GBase-T PoE ports
- 2 x 10GBase-T and 2 x SFP+ uplink ports
High Bandwidth Stacking
- Physical Stacking of up to 8 units
- 2 x 10GBase-T and/or 2 x SFP+
- 80 Gbps physical stacking bandwidth
Advanced L2 features
- RSPAN
- Selective Q-in-Q
Advanced L3 features
- IGMP v1/v2/v3
- MLD v1/v2
- PIM-SM/DM/SSM
- Static Route
- RIP/RIPng
- OSPF
Reliability and Resiliency
- Ethernet Ring Protection Switching (ERPS)
- Virtual Router Redundancy Protocol (VRRP)
- Redundant Power Supply (RPS) support
Management, Provisioning and Automation
- D-View 7
- D-Link Network Assistant (DNA)
- Zero Touch Provisioning (ZTP)
Features
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 50 ports
- Quickly and easily set up a wired network with 50 networking ports
Technical Specifications
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 3 |
I/O Expansions
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
Power Description
| Power Source | Power Supply |
| Power Consumption | 51.20 W |
| Redundant Power Supply Supported | Yes |
Physical Characteristics
| Weight (Approximate) | 2.78 kg |
| Form Factor | Rack-mountable |
| Length | 441 mm |
| Height | 44 mm |
| Width | 207.4 mm |
| Compatible Rack Unit | 1U |
General Information
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | DGS-1520-52 |
| Manufacturer Website Address | http://www.dlink.com.au |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DGS-1520-52 |
| Product Name | DGS-1520-52 Layer 3 Switch |
| Brand Name | D-Link |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 50 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| 2 x 10 Gigabit Ethernet Network | |
| 2 x 10 Gigabit Ethernet Expansion Slot |
Media & Performance
| Network Technology | 10GBase-X |
| 10GBase-T | |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
Price Trend
Current Price
AUD 2,399.95
