Product Overview

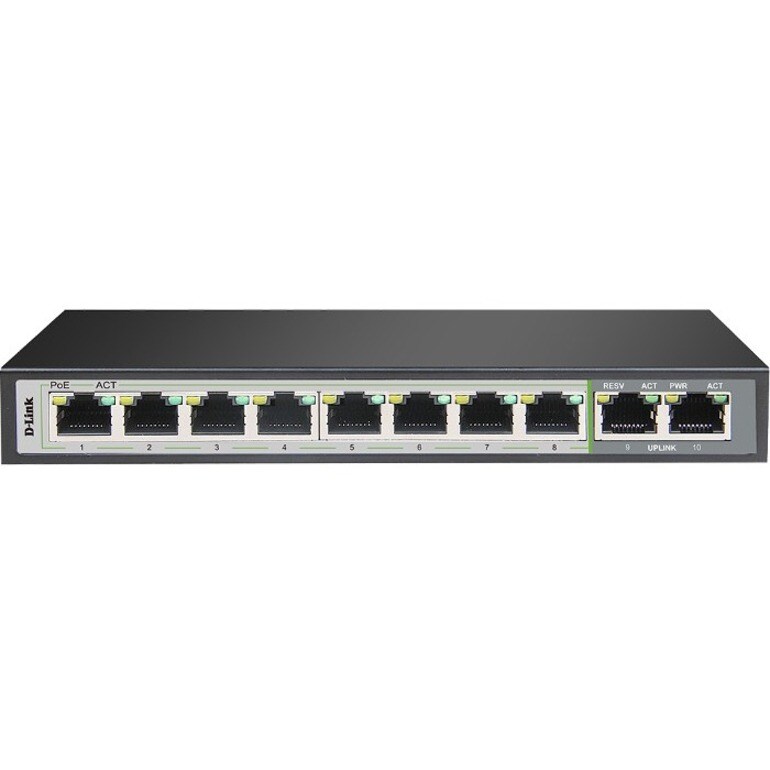

D-Link DGS-F1010P-E 10 Ports Ethernet Switch - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 96 W PoE Budget - Twisted Pair - PoE Ports
Built for your Need
Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, AP etc
Up to 250m PoE and Data Transmission
Equipped with PoE extend technology, DGS-F1010P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution
6KV Surge Protection
D-Link 250M is enhanced with 6KV surge protection Effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position
Enhanced with VLAN Function
With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance
Enhanced with Video QoS
Improve the Video Packet Priority
Create high priority for video streaming, perfect solution for IP camera/CCTV
Enhanced with Video QoS
Improve the Video Packet Priority
Create high priority for video streaming, perfect solution for IP camera/CCTV
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 10 ports
- Quickly and easily set up a wired network with 10 networking ports
Technical Specifications
| Manageable | No |
| Certifications & Standards |
|
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Power Source | Power Adapter |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 96 W |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DGSF1010PE |
| Manufacturer Website Address | http://www.dlink.com.au |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DGS-F1010P-E |
| Product Name | 250M 10-Port 1000Mbps Switch with 8 PoE Ports and 2 Uplink Ports |
| Brand Name | D-Link |
| Weight (Approximate) | 950 g |
| Height | 27 mm |
| Width | 184 mm |
| Depth | 75 mm |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE |
| 2 x Gigabit Ethernet Uplink |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3 |
| IEEE 802.3at | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3af |
