14 Port L2 Managed Switch
14 Port L2 Managed Switch
Product Overview

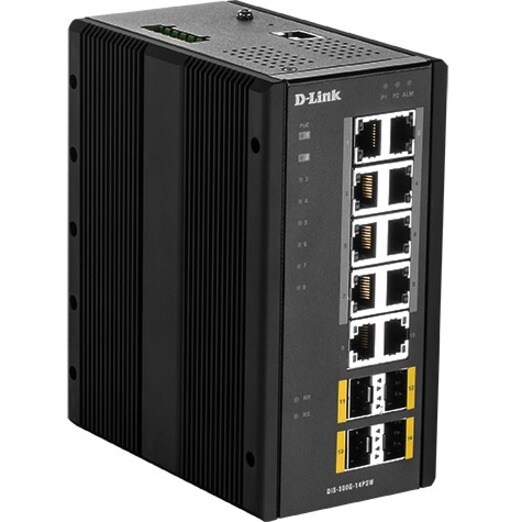

D-Link DIS-300G DIS-300G-14PSW 10 Ports Manageable Ethernet Switch - 2 Layer Supported - Modular - 4 SFP Slots - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable
The DIS-300G Series Industrial Gigabit Managed Switches are designed specifically to withstand wide temperature range, vibrations and shock. These rugged, yet easy to deploy, switches have superior environmental specification compared to those of commercial network switches. With it's hardened design combined with high availability network features, these switches form vital parts of any network infrastructure facilitating the increasing demand for smart cities, city-wide surveillance and wireless connectivity.
With its comprehensive feature set, DIS-300G managed switches are easy to configure, partition and organise user's network and provide reliable and quality of service. The DIS-300G-8PSW and DIS-300G-14SPW switches include PoE switches that are compliant with both IEEE 802.3af and IEEE 802.3at PoE standards and delivering up to 30 watts power per port along with data on standard Ethernet cabling. The switches can be used to power any IEEE 802.3af/at compliant PoE PD devices, which eliminates the need for additional wiring. They also provide additional PoE power management features which can greatly reduce the deployment effort of planning PoE power budget.
Customers
The DIS-300G Series family of switches is ideal for customers looking for cost-effective and customisable networking solutions with redundancy and security, designed for industrial environments.
Application
- Challenging environmental conditions
- High-end network redundancy topologies
- High ambient temperatures
Market Heavy
- industrial / factory automation
- Intelligent transport system (ITS) / railway applications
- City surveillance / smart cities
- Gigabit Ethernet port for ultra-fast network speeds
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 10 ports
- Quickly and easily set up a wired network with 10 networking ports
Technical Specifications
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Layer Supported | 2 |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 4.0 |
| Network Technology | 10/100/1000Base-T |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Weight (Approximate) | 1.41 kg |
| Form Factor | Wall Mountable |
| DIN Rail Mountable | |
| Height | 128 mm |
| Width | 77 mm |
| Depth | 154 mm |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| 2 x Gigabit Ethernet Network | |
| 4 x Gigabit Ethernet Expansion Slot |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DIS-300G-14PSW |
| Manufacturer Website Address | http://www.dlink.com.au |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DIS-300G-14PSW |
| Product Name | Industrial Gigabit Managed PoE Switch with SFP Slots |
| Product Series | DIS-300G |
| Brand Name | D-Link |
