USB-C / USB 3.0 Docking Station Dual 4K
USB-C / USB 3.0 Docking Station Dual 4K
Product Overview

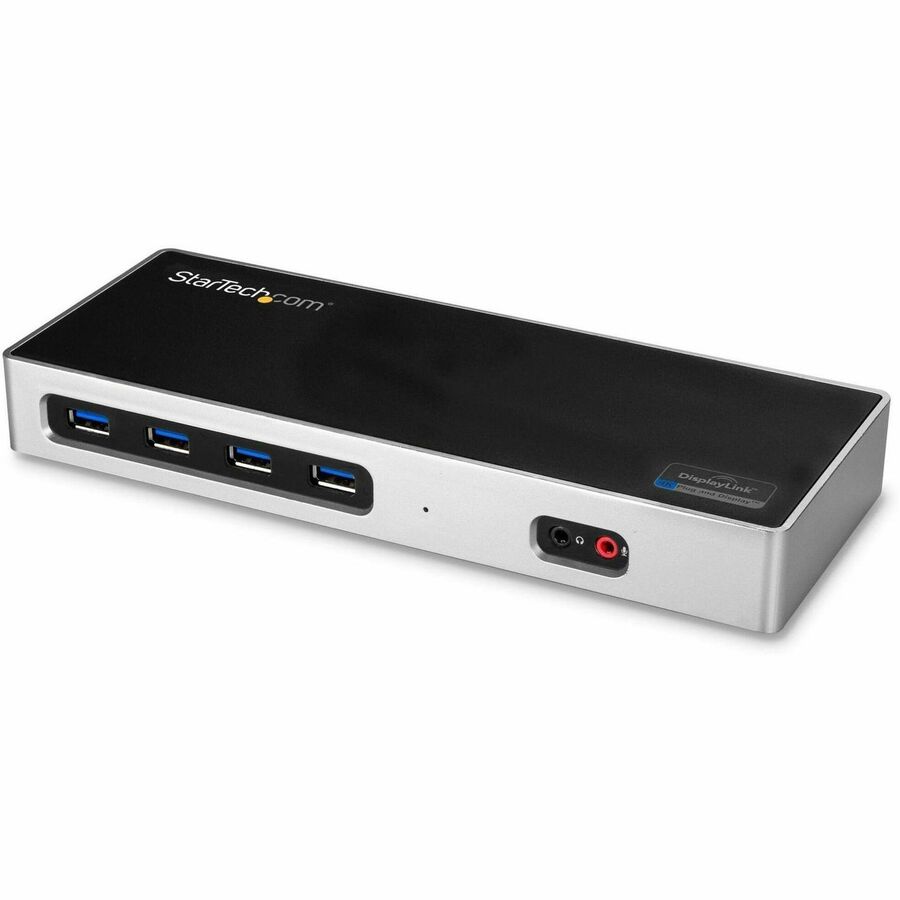

StarTech.com USB-C & USB-A Dock, Dual Monitor 4K 60Hz Dock DisplayPort/HDMI, Hybrid USB 3.0 Laptop Docking Station, 6x USB-A, mac/Windows - Universal hybrid USB 3.0 docking station for USB-C/USB-A laptops with USB-A and USB-C host cables - Dual 4K 60Hz monitor: 2x DisplayPort or 2x HDMI or DP + HDMI - USB C USB A Dock w/ 6x USB Type-A ports/Gigabit Ethernet/Audio - DisplayLink Certified
This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.
Enhance Productivity with Dual-4K 60Hz VideoIdeal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.
With the dual-4K dock, connect:
- 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
- 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
- 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.
All the Connections You NeedThis USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.
DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.
- DUAL 4K 60Hz HYBRID USB-C & USB-A DOCK: Universal USB 3.0 docking station (5Gbps) works with USB-C & USB-A laptops/computers; port replicator features 6-Port USB Type-A hub, Gigabit Ethernet, and 3.5mm audio jacks (headset and mic)
- FLEXIBLE MULTI MONITOR VIDEO: This dual 4K 60Hz universal laptop docking station can connect up to 2 monitors: Dual DisplayPort or Dual HDMI or DP + HDMI displays; supports two extended displays on MacBooks with both the Intel processor or Apple M1 chip
- 6 DOWNSTREAM USB-A PORTS: Hybrid USB C dock has a built-in 6-port USB 3.1/3.2 Gen 1 (5Gbps) hub with USB-A ports on the front and back to support devices such as a keyboard, mouse, flash drive, external hard drive, and printer
- FOR USB-A & USB-C LAPTOPS: DisplayLink certified DL 6950 chipset supports USB-C/Thunderbolt 3 & USB-A PCs; USB-C & USB-A host cables incl; Supports Windows, macOS, Chrome OS, & Ubuntu; This dock does not provide USB-C Power Delivery to charge your laptop
- STARTECH.COM ADVANTAGE: StarTech.com offers a 3-year warranty and free lifetime technical support on all docking stations; with over 3000 products globally, StarTech.com makes hard-to-find easy.
Technical Specifications
| Status Indicators | 1 x Power |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Maximum Power Supply Wattage | 40 W |
| Device Supported | Notebook |
| Connectivity Technology | Wired |
| Number of Displays Supported | 2 |
| Supported Resolutions | 3840 x 2160 |
| 4096 x 2160 | |
| Screen Mode Supported | 4K |
| Operating System Supported | Mac OS X 13.0 Ventura |
| macOS 14 | |
| Mac OS X 12.0 Monterey | |
| Mac OS X 11.0 Big Sur | |
| Mac OS X 10.6 Snow Leopard | |
| Mac OS X 10.15 Catalina | |
| Mac OS X 10.14 Mojave | |
| Mac OS X 10.12 Sierra | |
| ChromeOS 55+ | |
| Windows XP | |
| Windows Vista | |
| Windows 8.1 | |
| Windows 8 | |
| Windows 7 | |
| Windows 11 | |
| Windows 10 | |
| Ubuntu 20.04 | |
| Ubuntu 18.04 |
| Product Type | Docking Station |
| Manufacturer Part Number | DK30A2DH |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Dual-4K Docking Station with 6 x USB 3.0 Ports |
| Brand Name | StarTech.com |
| Weight (Approximate) | 430.9 g |
| Height | 27.9 mm |
| Width | 83.8 mm |
| Depth | 223.5 mm |
| Product Color | Black |
| Silver | |
| Color Family | Dual Colour |
| Host Interface | USB Type C |
| Microphone | Yes |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of HDMI Outputs | 2 |
| Number of USB 3.0 Ports | 6 |
| Thunderbolt | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female |
