Product Overview

StarTech.com USB-C & USB-A Dock - Hybrid Universal Laptop Docking Station with Dual Monitor Display 4K 60Hz HDMI & DisplayPort - 60W PD - 2 Displays Supported - 4K - 4096 x 2160, 5120 x 2880 - 4 x USB Ports - 4 x USB 3.0 - 3 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - Network (RJ-45) - HDMI - DisplayPort - Audio Line Out - Wired - Gigabit Ethernet

Create a dual-4K 60Hz workstation with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 60W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.

The Uniquely Universal Host Cable

The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.

Flexible Monitor Connections

This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.

  • Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz

  • Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz

  • Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz

  • Single 5K DisplayPort * | Up to 5120 × 2880

*Requires monitor support for 5K using two DP ports

Certified for Universal Compatibility & Reliability

This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.

60W Power Delivery

Using a single cable, the dock powers and charges your laptop as you work with 60W PD for faster charging, using the 135W power adapter.

Easy and Convenient Setup

For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).

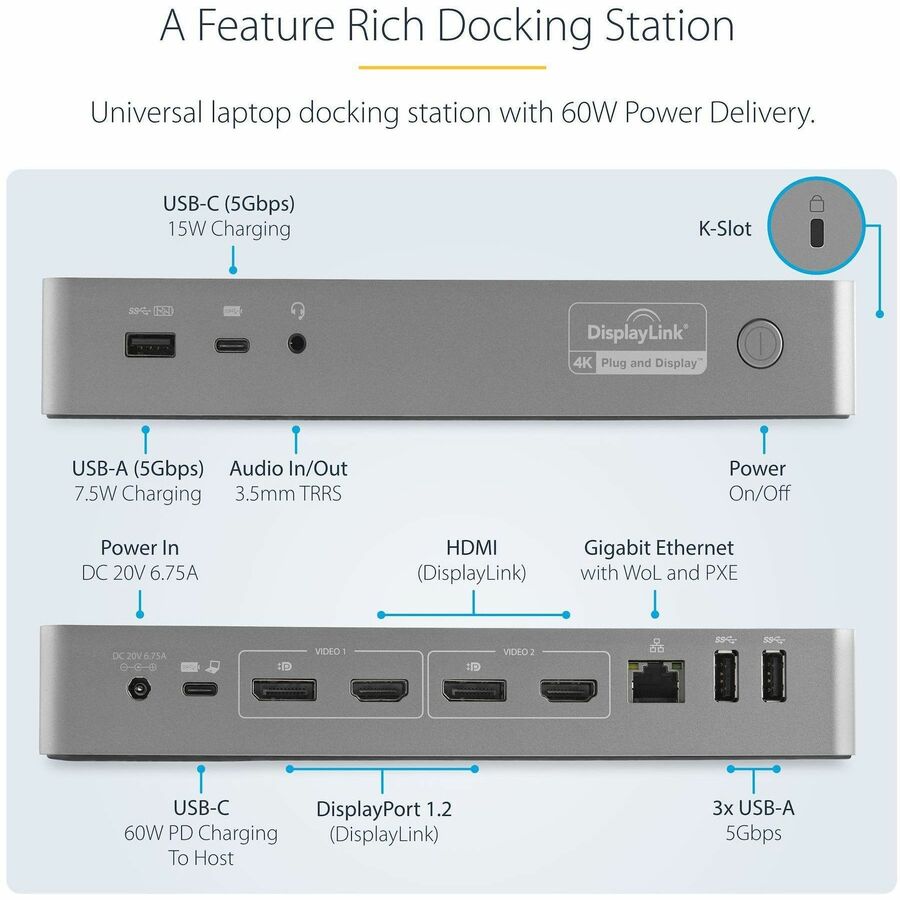

The Connections You Need

Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.

For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.

The IT Pro's Choice Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

DK30C2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Technical Specifications

Network & Communication
Ethernet TechnologyGigabit Ethernet
Power Description
Maximum Power Supply Wattage60 W
Miscellaneous
Compatibility
    • Lenovo Thinkpad T Series
    • Lenovo X1 Carbon
    • Microsoft Surface Pro7
    • Apple MacBook
    • Apple MacBook Pro
    • Apple MacBook Air
    • USB-C Chromebooks
Brand CompatibilityLenovo
Apple
Dell
HP
Interfaces/Ports
Host InterfaceUSB Type C
HDMIYes
Network (RJ-45)Yes
Audio Line OutYes
DisplayPortYes
Number of DisplayPort Outputs2
Number of HDMI Outputs2
Total Number of USB Ports4
Number of USB 3.0 Ports4
USB Type-CYes
USB Type-C Detail1 x USB Type-C (Fast-Charge, 24 pin) USB 3.0 Female
Number of USB Type-C Ports1
Number of USB Type-A Ports3
USB Type-AYes
Physical Characteristics
Weight (Approximate)280.7 g
Height30.5 mm
Width78.7 mm
Depth221 mm
Product ColorSpace Gray
Black
Technical Information
Device SupportedNotebook
Connectivity TechnologyWired
Number of Displays Supported2
Supported Resolutions4096 x 2160
5120 x 2880
Screen Mode Supported4K
General Information
Product TypeDocking Station
Manufacturer Part NumberDK30C2DPPD
Manufacturer Website Addresshttp://www.startech.com/au
Packaged Quantity1
ManufacturerStarTech.com
Product NameUSB-C Docking Station with USB-A Laptop Compatibility - 60W PD
Brand NameStarTech.com
