Product Overview

StarTech.com USB-C Dock - 4K Triple Monitor USB Type-C Docking Station with Dual DisplayPort & HDMI - 100W Power Delivery - 5x USB 3.0 Hub - 6 x USB Ports - 6 x USB 3.0 - USB Type-C - Network (RJ-45) - HDMI - DisplayPort - Audio Line Out - Microphone - Thunderbolt - Wired

This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.

You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:

  • 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
  • 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.

100W Power Delivery

Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.

Powerful Connections

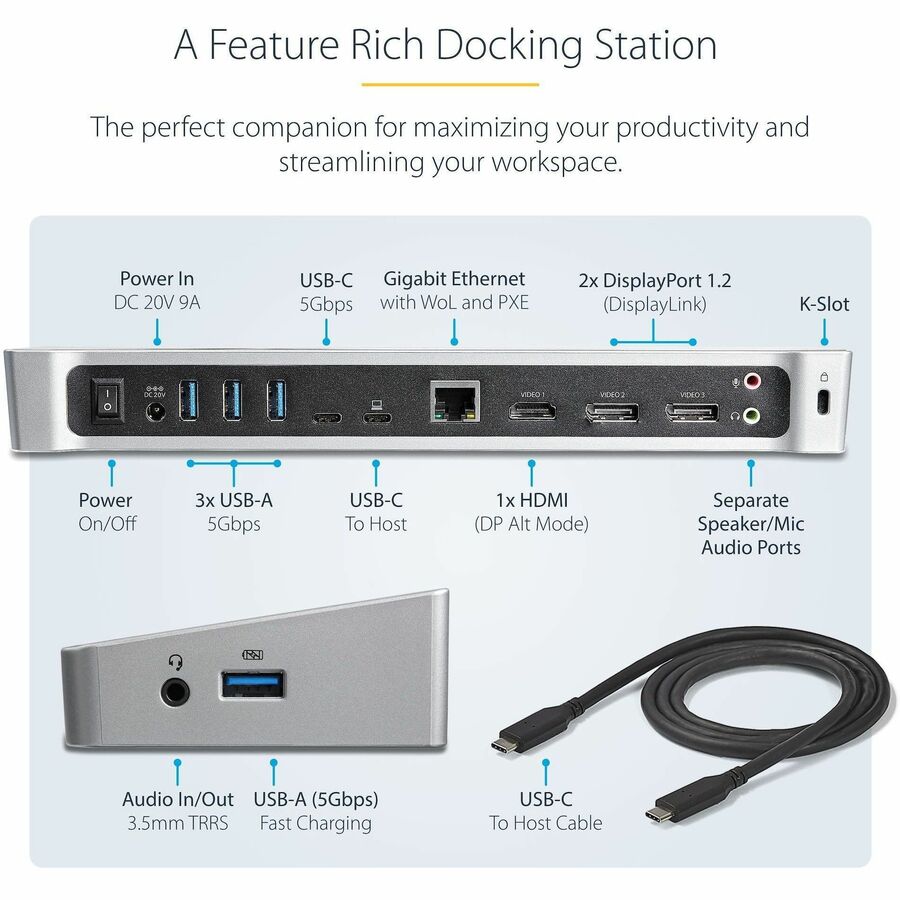

This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility

The DK30CH2DEP, includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.

The TAA compliant DK30CH2DEP is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Technical Specifications

Power Description
Maximum Power Supply Wattage100 W
Technical Information
Device SupportedNotebook/Tablet PC
Connectivity TechnologyWired
General Information
Product TypeDocking Station
Manufacturer Part NumberDK30CH2DEP
Manufacturer Website Addresshttp://www.startech.com/au
Packaged Quantity1
ManufacturerStarTech.com
Product NameTriple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD
Brand NameStarTech.com
Interfaces/Ports
Host InterfaceUSB 3.0 Type C
MicrophoneYes
HDMIYes
HeadphoneYes
Network (RJ-45)Yes
Audio Line OutYes
DisplayPortYes
Number of DisplayPort Outputs2
Number of HDMI Outputs1
Total Number of USB Ports6
Number of USB 3.0 Ports6
ThunderboltYes
Headphone/Microphone Combo PortYes
USB Type-CYes
USB Type-C Detail2 x USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Miscellaneous
Additional Information

    OS Compatibility:

    • Windows 7
    • Windows 8
    • Windows 8.1
    • Windows 10
    • macOS Mojave (10.14)
    • macOS Sierra (10.12)
    • Mac OS X El Capitan (10.11)
    • Chrome OS
Compatibility
    • Lenovo X1
    • Lenovo Thinkpad P Series
    • Dell Latitude Notebooks
    • Dell Precision Notebooks
    • Dell XPS 15 Notebooks
    • HP Spectre Notebooks
    • HP Zbook Notebooks
    • Apple MacBook Pro 16
Brand CompatibilityDell
Apple
HP
Lenovo
TAA CompliantYes
Physical Characteristics
Weight (Approximate)385.6 g
Length269.2 mm
Height33 mm
Width81.3 mm
Depth269.2 mm
Product ColorSilver
Black
