USB C Multiport Adapter HDMI/mDP 4K 60Hz
USB C Multiport Adapter HDMI/mDP 4K 60Hz
Product Overview
StarTech.com USB 3.1 (3.1 Gen 2) Type C Docking Station for Notebook/Tablet/Workstation/Monitor - 100 W - 1 Displays Supported - 4K - 4096 x 2160 - 3 x USB Ports - 1 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x HDMI Ports - HDMI - Mini DisplayPort - Thunderbolt - Wired - macOS 14, Windows 8.1, Windows 10, Windows 11, Mac OS X 10.13 High Sierra, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Ubuntu 18.04, Ubuntu 20.
This USB-C multiport adapter with DP 1.4 Alt-Mode supporting 4K 60Hz HDMI® and mini DisplayPort turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI or mDP video output, three USB 3.2 Gen 2 Type-A (10Gbps) ports including one BC 1.2 charge port; and one USB-C port (10Gbps), all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.Maximum Resolution

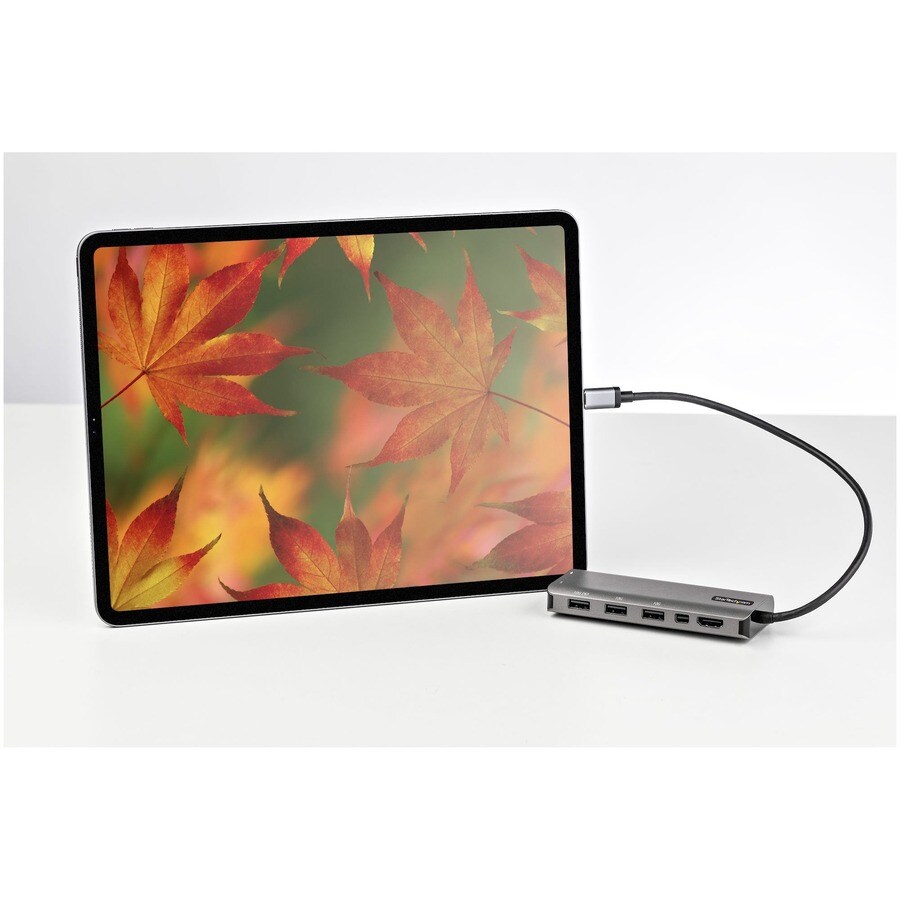

The portable docking station connects your laptop to a 4K 60Hz HDMI or mini DisplayPort monitor (4096 x 2160p) to create a powerful workstation. Can be used with an mDp to DP video adapter to connect your DP monitor and can also connect to an ultrawide monitor.
DP Alt Mode Required Maximum ResolutionDP 1.2 Alternate Mode Up to 4K 30Hz DP 1.4 Alternate Mode Up to 4K 60Hz
Connect Your Devices
The USB-C to USB 3.1 Gen 2 hub gives you one USB-C port and three USB-A ports to connect your legacy USB devices.
Charge Your Laptop and Peripheral
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
The DKT31CMDPHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.
Technical Specifications
| Maximum Power Supply Wattage | 100 W |
| Weight (Approximate) | 85 g |
| Height | 160 mm |
| Width | 424.2 mm |
| Connectivity Technology | Wired |
| Number of Displays Supported | 1 |
| Supported Resolutions | 4096 x 2160 |
| Screen Mode Supported | 4K |
| Product Type | Docking Station |
| Manufacturer Part Number | DKT31CMDPHPD |
| Manufacturer Website Address | http://www.startech.com/au |
| Manufacturer | StarTech.com |
| Product Name | Docking Station |
| Brand Name | StarTech.com |
| Host Interface | USB 3.1 (3.1 Gen 2) Type C |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Total Number of USB Ports | 3 |
| Thunderbolt | Yes |
| Mini DisplayPort | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) ; USB-C (24 pin) USB Power Delivery only |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 1 |
| USB Type-A | Yes |
| Compatibility |
|
| Brand Compatibility | Apple |
| Lenovo | |
| Microsoft | |
| Dell | |
| HP |
| Operating System Supported | Windows 10 |
| Windows 11 | |
| Windows 8.1 | |
| Android | |
| iPadOS | |
| Mac OS X 10.13 High Sierra | |
| Mac OS X 10.15 Catalina | |
| Mac OS X 11.0 Big Sur | |
| Mac OS X 12.0 Monterey | |
| Mac OS X 13.0 Ventura | |
| macOS 14 | |
| Ubuntu 18.04 | |
| Ubuntu 20.04 |
