BASESX MEDIA CONVERTER W/ SC FIBRE CON
BASESX MEDIA CONVERTER W/ SC FIBRE CON
Product Overview

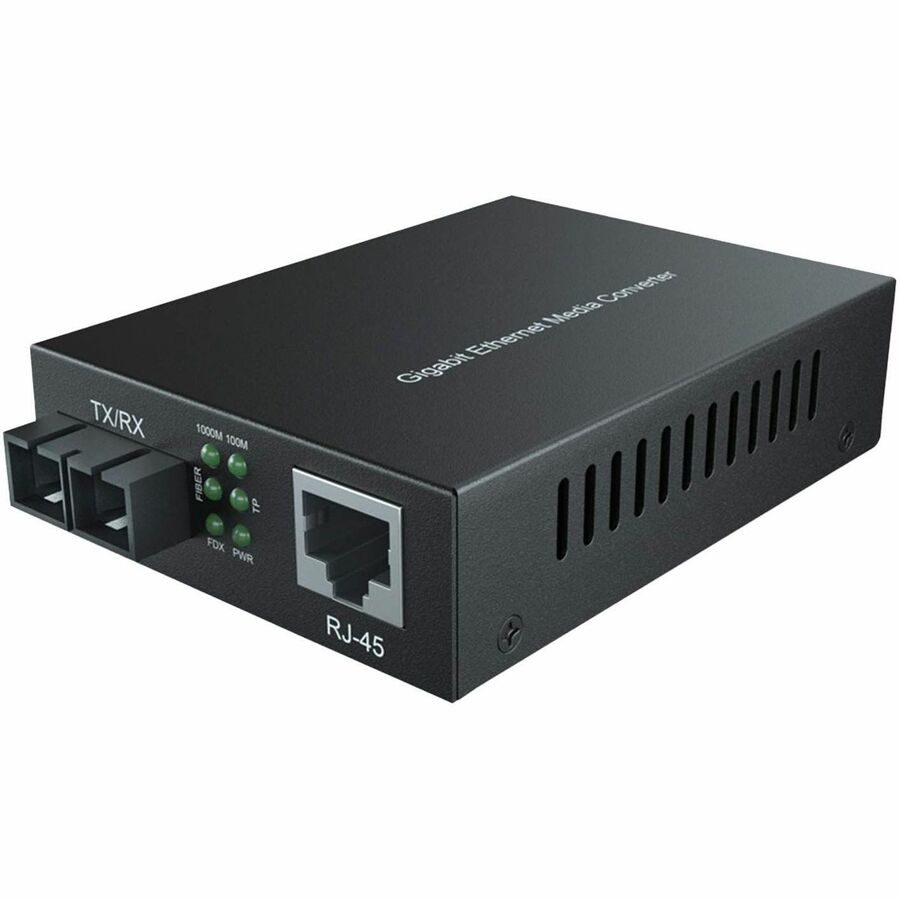

D-Link DMC-F700SC Transceiver/Media Converter - 2 Port(s) - 1 x Network (RJ-45) - 1 x SC - Twisted Pair, Optical Fiber - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - 550 m - Power Adapter
Product Highlights
The DMC-F700SC is a media converter designed to convert a twisted-pair 10/100/1000Base-T Gigabit Ethernet connection to a multi-mode fibre 1000Base-SX Gigabit Ethernet connection. It allows to extend a connection distance (up to 550m) between two devices. This media converter is equipped with one RJ-45 port for twisted-pair and one fibre optic port with a standard SC connector.
Technical Specifications
| Application/Usage | Network |
| Certifications & Standards |
|
| Network Technology | 1000Base-SX |
| 10/100/1000Base-T |
| Power Source | Power Adapter |
| Power Consumption | 1.65 W |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | DMC-F700SC |
| Manufacturer Website Address | http://www.dlink.com.au |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DMC-F700SC |
| Product Name | DMC-F700SC Transceiver/Media Converter |
| Brand Name | D-Link |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| Weight (Approximate) | 124 g |
| Height | 94 mm |
| Width | 70 mm |
| Depth | 26 mm |
| Maximum Distance Supported | 550 m |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 850 nm |
