BASELX MEDIA CONVERTER W/ SC FIBRE CON
BASELX MEDIA CONVERTER W/ SC FIBRE CON
Product Overview

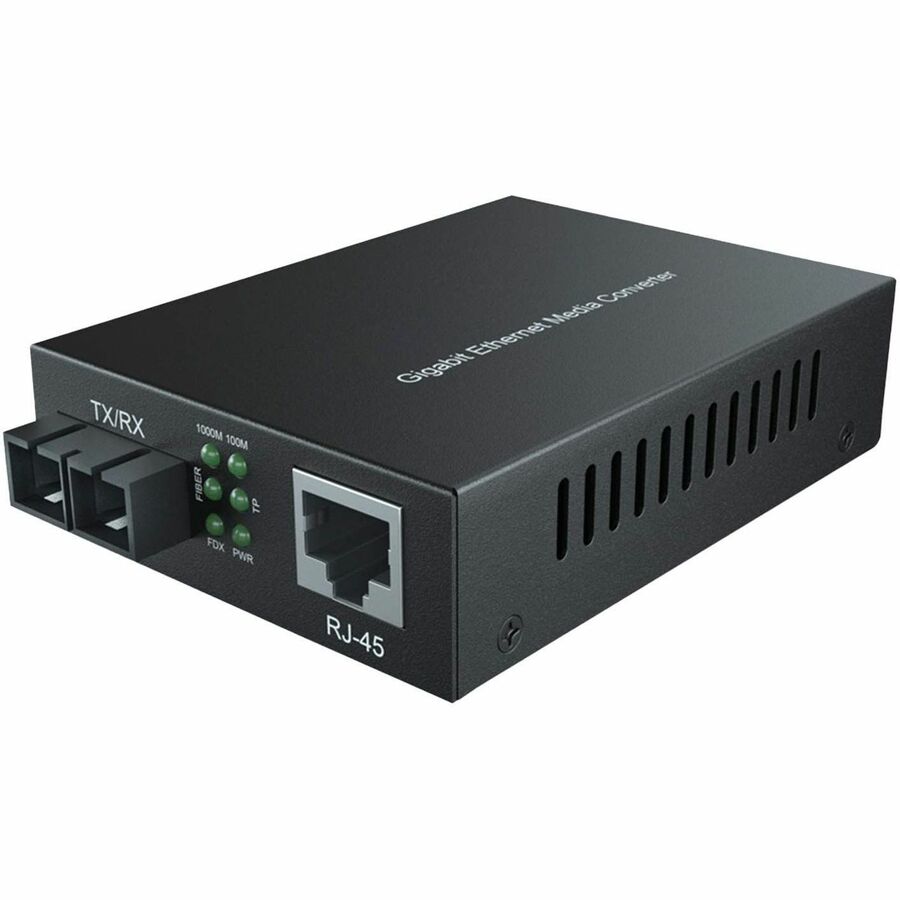

D-Link DMC-F810SC Transceiver/Media Converter - 2 Port(s) - 1 x Network (RJ-45) - 1 x SC - Optical Fiber, Twisted Pair - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-LX - 20 km - Power Adapter
Product Highlights
The DMC-F810SC is a media converter designed to convert a twisted-pair 10/100/1000Base-T Gigabit Ethernet connection to a single-mode fibre 1000Base-LX Gigabit Ethernet connection. It allows to extend a connection distance (up to 20 km) between two devices. This media converter is equipped with one RJ-45 port for twisted-pair and one fibre optic port with a standard SC connector.
Technical Specifications
| Network Technology | 10/100/1000Base-T |
| 1000Base-LX |
| Power Source | Power Adapter |
| Power Consumption | 1.65 W |
| Application/Usage | Network |
| Building | |
| Certifications & Standards |
|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | DMC-F810SC |
| Manufacturer Website Address | http://www.dlink.com.au |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DMC-F810SC |
| Product Name | Transceiver/Media Converter |
| Brand Name | D-Link |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| Weight (Approximate) | 124 g |
| Height | 26 mm |
| Width | 70 mm |
| Depth | 94 mm |
| Maximum Distance Supported | 20 km |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Wavelength | 1310 nm |
