Product Overview

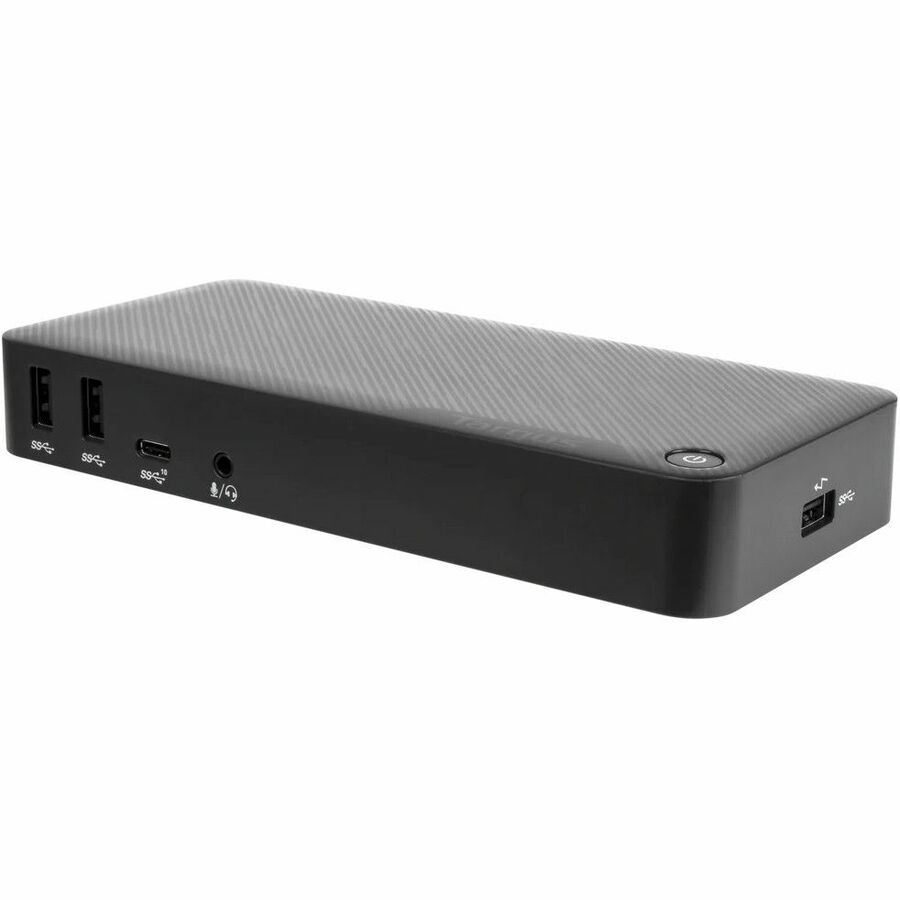

Targus DOCK430AUZ USB Type C Docking Station for Desktop PC/Notebook/Monitor - Grey - 3 Displays Supported - 4K, 2K, HD - 3840 x 2160, 1280 x 720, 2048 x 1080, 1920 x 1080, 2560 x 1440 - 5 x USB Ports - 4 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - 2 x DisplayPorts - DisplayPort - Wired - Gigabit Ethernet - 85W

Create a more powerful, productive workstation with the Targus USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power. Sleek and powerful this Alternate Mode hosts packs all of the ports and power you need in one dock. Designed to support a wide variety of laptop brands and operating systems, DOCK430 offers broad compatibility for a range of hosts, devices and peripherals.

Enjoy crisp, clear native video while supporting a connection up to three monitors. With two DisplayPort™ 1.4 ports and one HDMI 2.0 port, you're able to support three monitors (1920x1080 p60), two monitors (2560x1440 p60) or one monitor (3840x2160 p60) and various lower resolutions. Plus connect all your favorite accessories with a combination of USB-A (4 USB 3.2 Gen1 ports, 1 fast-charging) and USB-C (1x 3.2 Gen2), plus Ethernet and audio ports.

Designed for the modern workstation, the dock comes equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.

Supports Two DisplayPort™ and One HDMI Monitor

Access the latest display technology with two DisplayPort™ ports that support dual DisplayPort™ monitors, dual HDMI monitors, or a mix of the two. Create a high-performance dual-monitor workstation with crisp, clear images at resolutions up to 4096 x 2160 p60 24bpp color.

  • Supports single 4K, dual 2K, or triple HD video via two DisplayPort™ 1.4 and one HDMI 2.0 monitor ports
  • 5, 9, 12, 15, 20 VDC Power Delivery up to 85W
  • 1 USB-C™ 3.2 Gen2 port (10Gbps)
  • 1 USB 3.2 Gen1 Type-A fast-charging port
  • 3 USB 3.2 Gen1 Type-A ports
  • 1 Gigabit Ethernet port
  • 1 3.5mm combo Audio In/Out port for mics, speakers, and earphones
  • Integrated lock slot accommodates standard security locks to safeguard equipment
  • Compatible with Targus VESA Mounting Bracket (ACX003GLZ, sold separately)

Technical Specifications

Network & Communication
Ethernet TechnologyGigabit Ethernet
Miscellaneous
Package Contents
  • DOCK430AUZ Docking Station
  • User Guide
  • Cable, Input US AC Cable Cord Set , 3pins, 1.8M, C5 Connector
  • USB C/M (screwed) to C/M (normal) Cable, Black; 1M, 5A, 10Gbps
  • Adapter, AC to DC, Output: 20V, 6.75A, 135W
Compatibility

Compatible with Targus VESA Mounting Bracket

Kensington Security SlotYes
TAA CompliantNo
Physical Characteristics
Weight (Approximate)1.16 kg
Height180.3 mm
Width82.5 mm
Depth27.9 mm
Product ColorGrey
Color FamilyGrey
Interfaces/Ports
Host InterfaceUSB Type C
HDMIYes
HDMI Version2.0
Number of HDMI Ports1
VGANo
Network (RJ-45)Yes
DisplayPortYes
Total Number of USB Ports5
ThunderboltNo
Number of DisplayPorts2
Headphone/Microphone Combo PortYes
Number of RJ-45 Ports1
Mini DisplayPortNo
USB Type-CYes
DisplayPort Version1.4
Number of USB Type-C Ports1
Number of USB Type-A Ports4
USB Power Delivery85W
Number of USB 3.2 Gen 1 Type-A Ports4
USB Type-AYes
General Information
Product TypeDocking Station
Manufacturer Part NumberDOCK430AUZ
Manufacturer Website Addresshttp://www.targus.com/au
ManufacturerTargus Group International
Product ModelDOCK430AUZ
Product NameDOCK430AUZ Docking Station
Brand NameTargus
Technical Information
Device SupportedDesktop PC/Notebook/Monitor
Connectivity TechnologyWired
Number of Displays Supported3
Supported Resolutions1280 x 720
2048 x 1080
2560 x 1440
3840 x 2160
1920 x 1080
Screen Mode SupportedFull HD
HD
2K
4K
QHD
