3m White VESA Certified DP 1.2 Cable

3m White VESA Certified DP 1.2 Cable

3m White VESA Certified DP 1.2 Cable

Product Overview

StarTech.com 3.05 m DisplayPort A/V Cable - 1 - Cable for Audio/Video Device, Monitor, Docking Station, Workstation - First End: 1 x 20 pin Displayport 1.2 Digital Audio/Video - Male - Second End: 1 x 20 pin Displayport 1.2 Digital Audio/Video - Male - 21.6 Gbit/s - Supports up to3840 x 2160 - Shielding - Nickel Plated Connector - VW-1 - 28 AWG - White

Connect a 4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 1.2 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DP cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.2 capabilities.

Seamless Compatibility

For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility. Certified cables provide consistent, reliable performance across multiple resolutions and refresh rates.

Durable Design

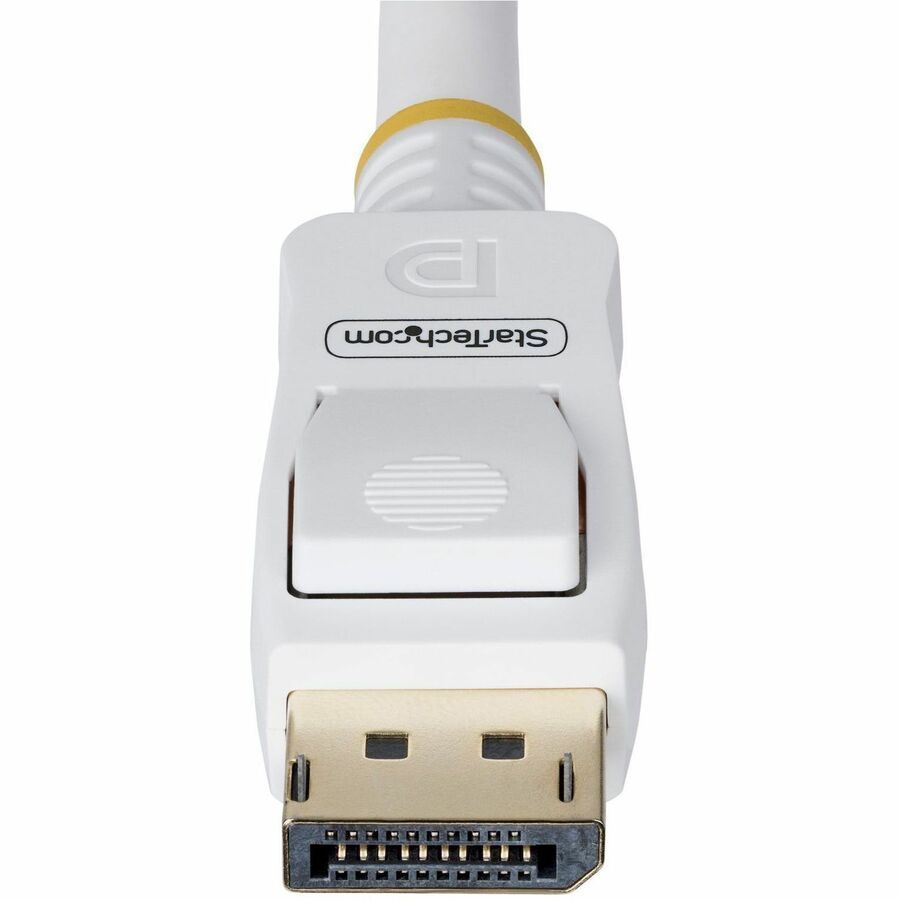

This DisplayPort cable features a flexible TPE outer jacket that routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection.

Supported DisplayPort 1.2 Features:

This DisplayPort cable supports full DP 1.2 features:

  • Resolutions up to 4K 60Hz using a compatible DP source and display
  • 21.6Gbps bandwidth supports high refresh rates including 1440p 144Hz and 1080p 240Hz
  • High-Bandwidth Digital Content Protection (HDCP) 1.3 for a secure connection between source and display
  • Multi-Stream Transport (MST) for daisy-chaining multiple monitors
  • Up to 8 Uncompressed Digital Audio Channels
  • 3D Stereo support for 3D video formats
  • Backward compatible with previous DP versions

This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.


  • HIGH PERFORMANCE: DP 1.2 Cable is designed for UHD-enabled DisplayPort devices; Choose the right DP cable at-a-glance with performance markings on connectors for quick and easy identification; Up to 21.6Gbps for seamless 4K 60Hz video
  • VESA CERTIFIED: DP 1.2 Cable is VESA certified for guaranteed performance and compatibility, ensuring reliable signal consistency and smooth video playback on any DP display; Backward compatible with earlier DP versions
  • QUALITY CONSTRUCTION: Nickel-plated latching DP connectors enable a precise fit and prevents accidental disconnections; Aluminum mylar shield for enhanced EMI protection; Durable TPE Jacket and strain reliefs are halogen-free and RoHS compliant
  • APPLICATIONS: Ideal for 4K UHD displays; Up to 144Hz refresh rate at 1440p resolution; Suitable for high performance GPUs and workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a 4K docking station
  • SPECS: White; 10-foot (3-meter); VESA Certified DisplayPort 1.2; Supports HBR2/MST/HDCP 1.3; 4K 60Hz/1440p 144Hz/1080p 240Hz; 21.6Gbps; 8-ch Audio; Backward Compatible w/DP 1.1; 28AWG; 7.5mm (0.3in) O.D.

Technical Specifications

Physical Characteristics
Weight (Approximate)192.8 g
Jacket MaterialThermoplastic Elastomer (TPE)
Shielding MaterialAluminum Mylar Foil
Product ColorWhite
Color FamilyWhite
Product MaterialABS
Technical Information
Cable Length3.05 m
Data Transfer Rate21.6 Gbit/s
Device SupportedMonitor
Computer
Audio/Video Device
Display
Docking Station
Workstation
ShieldingYes
FeaturesHalogen-free
HDCP 1.3
High Bit Rate 2 (HBR2)
Latching Connector
Multi-Stream Transport (MST) Support
Strain Relief
Passive
EMI Protection
Flexible
Stereoscopic 3D Support
Braided
Durable
Number of Conductors19
Connector Type on First EndDisplayPort 1.2 Digital Audio/Video
Connector Type on Second EndDisplayPort 1.2 Digital Audio/Video
Connector PlatingNickel
American Wire Gauge28 AWG
Supported Resolution3840 x 2160
Connector Gender on First EndMale
Connector Gender on Second EndMale
General Information
Product TypeA/V Cable
Manufacturer Part NumberDP12-CABLE-10FTW
Manufacturer Website Addresshttp://www.startech.com/au
Packaged Quantity1
ManufacturerStarTech.com
Product Name10ft DisplayPort Cable - White
Brand NameStarTech.com
