60W Redundant PWR Supply Unit

60W Redundant PWR Supply Unit

60W Redundant PWR Supply Unit

Product Overview

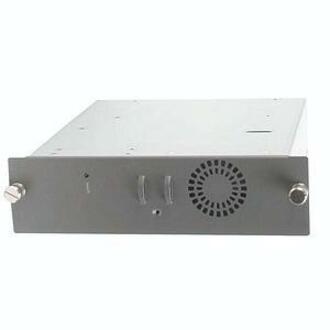

D-Link DPS-200 Redundant Power Supply - 60 W - 240 V AC Input - 12 V DC Output

The DPS-200 redundant power supply designed for use with D-Link LAN switches. The power supply connects to a switch to provide redundant backup power to the built-in power supply unit inside the switch. The RPS can operate as stand-alone redundant power supply unit.

Technical Specifications

Reliability
MTBF50000 Hour
Miscellaneous
Additional Information
    • AC Input Voltage Rating: 100VAC to 240VAC
    • Leakage Current: 3.5mA max
    • Line Regulation: +/-2% (measured output load from +/-10% rated load)
    • Load Regulation: +/-5% (measured output load from 20% to 100% rated load)
    • Output Ripple & Noise: 120mV
    • Over Current Protection
    • Over Voltage Protection: 13.5V to 17V
    • AC Power Good Signal Required: +3.3V
    • Shock & Vibration: 10-55Hz
    • Insulation Resistance: Input to secondary >20Mohm 500VDC

    Hi-Pot Test:

    • Input to secondary: 3000VAC for 1 minute, 10mA
    • Input to P.E: 1500VAC for 1 minute, 10mA
Compatibility
    • DES-3326SR L3 stackable switch
    • DES-3350SR L3 stackable switch
    • DGS-3212SR L2/L3 stacking master
Certifications & Standards

    Safety Standards:

    • UL 60950 3rd Edition
    • TUV EN 60950
    • CE Mark (LVD)

    Safety Approvals:

    • CSA

    EMI:

    • FCC Class B
    • EN55022 (CISPR22) Class B
General Information
Product TypeRedundant Power Supply
Manufacturer Part NumberDPS200
Manufacturer Website Addresshttp://www.dlink.com.au
ManufacturerD-Link Systems, Inc
Product ModelDPS-200
Product Name60W Redundant Power Supply
Brand NameD-Link
Power Description
Output Power60 W
Output Voltage12 V DC
Input Voltage Range100 V AC - 240 V AC
Physical Characteristics
Weight (Approximate)997.9 g
Height45 mm
Width169.9 mm
Depth190 mm
