Product Overview

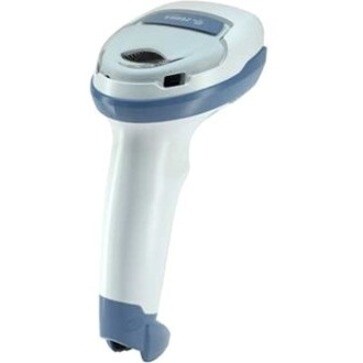

DS2208 Area Imager STD RANGE CORDED HC WHITE LA EMEA APAC

Dependable, affordable and purpose-built for healthcare

Whether your healthcare workers are admitting a patient, administering medication, collecting a specimen or performing inventory and dietary management, there's no room for error. Now you can give your staff the power to get it all done right with the DS2200 Series for Healthcare. Unlike general purpose scanners, the DS2200-HC Series can withstand the constant disinfecting required at the point-of-care. It easily and accurately captures the many kinds of barcodes commonly used in hospitals-from barcodes on patient wristbands and medication vials to IV bags and specimen trays. You get a purpose-built healthcare scanner that fits your budget-without compromising on performance or features. Corded and cordless models meet your scanning needs from the patient bedside to the pharmacy, admitting and more. The DS2200 Series for Healthcare-the affordable and dependable scanning you need to improve patient safety and staff productivity.

Instant decoding with PRZM Intelligent Imaging
The DS2200-HC Series is engineered to ensure instant and accurate decoding of the many barcodes found at the point-of-care, labs and pharmacies. Only from Zebra, PRZM's software decode algorithms deliver superior performance on poor quality and challenging barcodes. And a wide working range minimizes the precision needed when positioning the scanner for point-and-shoot simplicity. The result is the first-time, every-time scanning your caregivers need to improve patient safety and workflow efficiency.

Easy to clean and sanitize
Unlike general purpose scanners, the DS2200-HC Series features a disinfectant-ready housing designed to handle regular sanitizing with popular disinfectants.

"Do Not Disturb" mode
Scanner feedback is critical, and so is the patient experience. For sound-sensitive environments, Zebra's Direct Decode Indicator projects illumination on the barcode to indicate a good decode. Clinicians instantly know if a medicine, wristband or IV bag was properly scanned, while patients aren't disturbed by a loud beep.

Patent-pending technology for the most intuitive aiming
An innovative aim line removes the guesswork by guiding clinicians to scan at the ideal distance from the barcode.

Full-shift battery power guaranteed
With 14 hours of power, your cordless DS2278-HC scanners are always available for use-there's no need to waste valuable time recharging a battery during a clinician's shift.

On-the-fly switching between handheld and hands-free scanning
In the lab and pharmacy, some tasks may be better suited for handheld scanning and others for hands-free. With the DS2200-HC Series, switching modes is fast and easy. Simply place the scanner in the optional presentation stand to automatically switch to hands-free mode; then pick up the scanner for handheld mode.

Technical Specifications

Miscellaneous
Application/UsageHealthcare
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP42
Technical Information
Barcode Symbology Supported
    1D:
    • Code 39
    • Code 128
    • Code 93
    • Codabar/NW7
    • Code 11
    • MSI Plessey
    • UPC/EAN
    • I 2 of 5
    • Korean 3 of 5
    • GS1 DataBar
    • Base 32 (Italian Pharma)
    2D:
    • PDF417
    • Composite Codes
    • TLC-39
    • Aztec
    • DataMatrix
    • MaxiCode
    • QR Code
    • Micro QR
    • Han
    • Xin
    • Postal Codes
Display ScreenYes
Connectivity TechnologyCable
Scanning Distance157.48 mm
Drop Specification

Designed to withstand multiple drops at
5.0 ft./1.5 m to concrete

Image Sensor TypeImager
Scanning Capability2D
1D
Field of View (Horizontal)33°
Field of View (Vertical)25°
Reading Angle (Skew)65°
Reading Angle (Pitch)65°
Reading Angle (Roll)360°
Maximum Ambient Light107600 lux
Minimum Print Contrast15%
Minimum Element Resolution (Code 39)0.10 mm
Maximum Element Resolution (Code 39)0.13 mm
Minimum Element Resolution (DataMatrix)0.15 mm
Maximum Element Resolution (DataMatrix)0.25 mm
Maximum Element Resolution (PDF417)0.17 mm
Interfaces/Ports
Host InterfaceUSB
Serial
Multi-interface
Keyboard Wedge
Physical Characteristics
Weight (Approximate)161.6 g
Form FactorHandheld
Height165 mm
Width66 mm
Depth99 mm
Product ColorHealthcare White
General Information
Product TypeBarcode Scanner
Manufacturer Part NumberDS2208-HC0000BZZRW
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelDS2208-HC
Product NameDS2208-HC Barcode Scanner
Product SeriesDS2200
Brand NameZebra

Price Trend

Current Price
AUD 393.93
