Product Overview

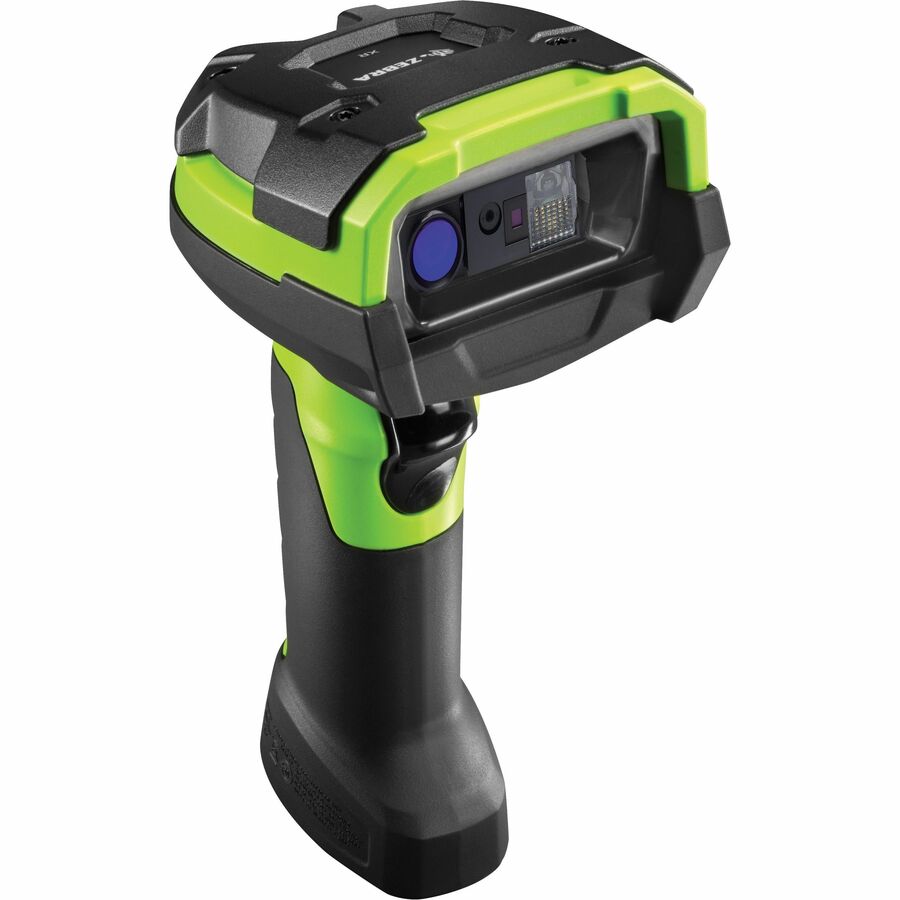

DS3678-XR RUGGED GREEN VIBRATION MOTOR STANDARD CRADLE USB NO LINE CORD KIT: DS3678-XR6F003VZWW SCANNER CBA-U42-S07PAR SHIELDED USB CABLE SUPPORTS 12V P/S STB3678C100F3WW CRADLE PWRBGA12V50W0WW

Unstoppable performance now with the industry's longest scanning range

When tasks get tougher, you need a scanner that's ready for the job. The DS3600-XR sets a new standard in extended range performance, enabling workers to scan faster, farther and more accurately than ever before. The DS3600-XR maintains the proven ruggedness of the DS3600-ER, increases scanning range by more than 40% and aimer visibility up to 7x - while decreasing device weight by 10%. The DS3600-XR delivers an edge over the competition for both rapidly proliferating 2D barcodes and traditional 1D. It seamlessly reads barcodes from as close as 2 in./5 cm to over 105 ft./32 m - nearer and farther than any scanner in its class. A high visibility green laser aimer makes scanning easier and more accurate at varying distances and lighting conditions. The DS3600-XR is virtually indestructible with a best-in-class 10 ft./3 m drop spec to concrete. Superior cordless technology makes it easier for your workers to use and manage their cordless scanners. And Zebra DataCapture DNA takes scanner performance far beyond the basics.

Performs in Your Toughest Environments

Scan Nearer and Farther with Class-leading Range

Engineered to perform at the highest level, the DS3600-XR can capture barcodes from less than 2 in./5 cm to over 105 ft./32 m - over 25% farther than other products in this class. It scans commonly used 2D barcodes nearly 40% farther, keeping productivity high as information-rich 2D codes become more prevalent in supply chains. Zebra's PRZM Intelligent Imaging technology offers unmatched scanning performance on virtually any 1D, 2D, paper and mobile barcode - including barcodes that are scratched, dirty, poorly printed, high density, even under shrinkwrap or frost.

Instant, Intelligent Barcode Capture Near and Far

Zebra's exclusive IntelliFocus technology delivers optimal performance across the entire scanning range and in a variety of lighting conditions. That means workers can use the same scanner to read barcodes on a picklist in hand, scan items on the uppermost shelves of warehouse racks or barcodes on the highest shipping container, capture ground level barcodes without bending down and reach more labels without getting out of the forklift.

High Visibility Green Laser Aimer for Indoor and Outdoor Scanning

The DS3600-XR's green laser aimer with a wide cross hair pattern is up to 7x more visible than a red aiming dot and can be seen across the entire decode range indoors and up to 10 ft./3 m in direct sunlight. The result is easier and more accurate aiming, whether workers are scanning in the dimmest corners of the warehouse or out on the loading dock, port or yard.

Ultra-Rugged - the Most Indestructible Design in its Class

 Zebra ultra-rugged scanners earned their name for a reason - you won't find a tougher family of scanners. Ready for the world's harshest environments, the DS3600-XR has the highest drop, tumble and sealing specifications in its class. It can survive 10 ft./3 m drops to concrete and 7,500 tumbles. With dual IP65/IP68 sealing, the DS3600-XR is dust proof, can handle the force of jetting water and be fully submerged in water. And built to withstand extreme heat, cold and humidity, it can be used anywhere - indoor, outdoor and even in the freezer.

  • Bluetooth technology - Allows compatibility with most of your smart devices
  • With Bluetooth technology, you can scan barcodes and then transmit data from the base
  • Increase productivity and performance by excluding the cable
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
  • Laser scan engine guarantees rapid error free data entry

Technical Specifications

Interfaces/Ports
Host InterfaceUSB
Technical Information
Barcode Symbology Supported

    1D:

    • Code 39
    • Code 128
    • Code 93
    • Codabar/NW7
    • Code 11
    • MSI Plessey
    • UPC/EAN
    • I 2 of 5
    • Korean 3 of 5
    • GS1 DataBar
    • Base 32 (Italian Pharma)

    2D:

    • PDF417
    • Micro PDF417
    • Composite Codes
    • TLC-39
    • Aztec
    • DataMatrix
    • MaxiCode
    • QR Code
    • Micro QR
    • Chinese Sensible (Han Xin)
    • Postal Codes
    • DotCode

    Digimarc:

    • Digital watermark technology

    IUID Support:

    • Supports IUID parsing, the ability to read and separate IUID fields per application requirements
Connectivity TechnologyWireless
FeaturesBeep
Vibration
Data Formatter
Data Parser
Diagnostic Reporting
Notification LED
Scanning Distance32 m
Light SourceLaser
Scanner RangeExtended Range
Drop Specification
    • DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
    • Cordless: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C
Image Sensor TypeImager
Illumination TypeLED
Scan ModeTrigger
Illumination ColorWhite
Scanning Capability2D
1D
Field of View (Horizontal)42°
Field of View (Vertical)27°
Reading Angle (Skew)60°
Reading Angle (Pitch)60°
Reading Angle (Roll)360°
Maximum Ambient Light107639 lux
Minimum Print Contrast25%
Minimum Element Resolution (Code 39)0.13 mm
Maximum Element Resolution (Code 39)2.54 mm
Minimum Element Resolution (DataMatrix)0.25 mm
Maximum Element Resolution (DataMatrix)5.08 mm
Air Electrostatic Discharge (+/-)25kV
Network & Communication
BluetoothYes
Battery Information
Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity3100 mAh
General Information
Product TypeBarcode Scanner Kit
Manufacturer Part NumberDS3678-XR3U42A2SVW
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelDS3678-XR
Product NameDS3600 DS3678-XR Barcode Scanner Kit
Product Series3600
Brand NameZebra
Miscellaneous
Application/UsageIndustrial
Inventory
Manufacturing
Outdoor
Self-checkout
Warehouse
Ingress Protection (IP) RatingIP68
IP65
Physical Characteristics
Weight (Approximate)410 g
DurabilityDust Proof
Water Proof
Height185.4 mm
Width76.2 mm
Depth142.2 mm
Product ColorIndustrial Green
Color FamilyGreen
RuggedYes
