DS8178-SR BLACK FIPS STANDARD CRADLE USB

DS8178-SR BLACK FIPS STANDARD CRADLE USB

DS8178-SR BLACK FIPS STANDARD CRADLE USB

Product Overview

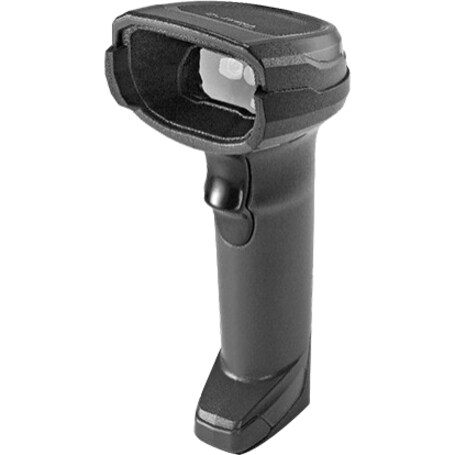

DS8178-SR BLACK FIPS STANDARD CRADLE USB KIT: DS8178-SR0F007ZZWW SCANNER. CBA-U21-S07ZBR SHIELDED USB CABLE. CR8178-SC100F4WW CRADLE

The ultimate in performance, innovation and manageability

Checkout is the last chance to leave your shoppers with a good impression - and the quality of the checkout experience is heavily dependent upon the performance of the scanner you choose. If cashiers need to scan barcodes multiple times or enter unreadable barcodes manually, your checkout lanes can back up quickly, resulting in long lines, long wait times and cashiers that need to focus on
ringing up merchandise as quickly as possible instead of focusing on shoppers to provide a better checkout experience. Now, you can give every shopper the ultimate last impression with the DS8100 Series handheld imager. The DS8100 Series rises above conventional imagers, delivering unprecedented scanning performance on 1D and 2D barcodes, innovative productivity enhancing tools, including swappable power sources - a PowerPrecision+ battery or PowerCapTM capacitor1 - plus unrivaled manageability tools to keep your scanners up, running and in the hands of your cashiers. Keep checkout lines moving and cashiers free to deliver a more personal checkout experience with the DS8100 Series - because when it comes to the checkout experience, only the best will do.

Unprecedented Performance

Unparalleled performance on virtually every barcode in any condition
Only the DS8100 Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology. With this unique combination of hardware and advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes - including
dense, poorly printed, crinkled, faded, distorted, dirty or damaged, as well as electronic barcodes on dimly lit displays.

Superior scan range
A scanning range up to 24 in./61 cm, a high resolution imaging sensor and a bright "aiming spot" improve checkout speed. Now, cashiers in busy checkout environments can easily scan items in a customer's shopping cart - without leaving the cash-wrap.

Innovation beyond the barcode
Swappable power options reduce your investment risk Two interchangeable power options are available to power your devices: a PowerPrecision+ battery or a PowerCap capacitor. You can swap power options at any time on all models, right in your facility - no need to purchase separate battery-free and battery powered devices. And managing your power sources is easy. Since the PowerPrecision+ battery and PowerCap capacitor can report their model and serial numbers, you'll always know which power source is in each scanner.

On a single charge, the advanced PowerPrecision+ battery provides over three around-the-clock days of continuous scanning, plus a wealth of metrics for better battery management.

  • With Bluetooth technology, you can scan barcodes and then transmit data from the base
  • Increase productivity and performance by excluding the cable
  • Increases productivity by giving the opportunity to wander, without the tangle of cables

Technical Specifications

Network & Communication
BluetoothYes
Technical Information
Barcode Symbology Supported
    1D:
    • Code 39
    • Code 128
    • Code 93
    • Codabar/NW7
    • Code 11
    • MSI Plessey
    • UPC/EAN
    • I 2 of 5
    • Korean 3 of 5
    • GS1 DataBar
    • Base 32 (Italian Pharma)
    2D:
    • PDF417
    • Micro PDF417
    • Composite Codes
    • TLC-39
    • Aztec
    • DataMatrix
    • MaxiCode
    • QR Code
    • Micro QR
    • Chinese Sensible (Han Xin)
    • Postal Codes
Connectivity TechnologyWireless
Scanning Distance934.72 mm
Scanner RangeStandard Range
Drop SpecificationDesigned to withstand 50 drops at 6.0 ft./1.8 m to concrete
Scan PatternLinear
Image Sensor TypeImager
Cable Type IncludedUSB
Scanning Capability1D
2D
Field of View (Horizontal)42°
Field of View (Vertical)28°
Reading Angle (Skew)60°
Reading Angle (Pitch)60°
Reading Angle (Roll)360°
Maximum Ambient Light96840 lux
Minimum Print Contrast16%
Minimum Element Resolution (Code 39)0.08 mm
Maximum Element Resolution (Code 39)0.51 mm
Minimum Element Resolution (DataMatrix)0.19 mm
Maximum Element Resolution (DataMatrix)0.25 mm
Minimum Element Resolution (PDF417)0.13 mm
Maximum Element Resolution (PDF417)0.17 mm
Physical Characteristics
Weight (Approximate)235.3 g
Form FactorHandheld
Height167.6 mm
Width66 mm
Depth106.7 mm
Product ColorTwilight Black
Color FamilyBlack
General Information
Product TypeBarcode Scanner Kit
Manufacturer Part NumberDS8178-SR7U2100SFW
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelDS8178-SR
Product NameDS8178-SR Barcode Scanner Kit
Product SeriesDS8100
Brand NameZebra
Miscellaneous
Application/UsageGovernment
Hospitality
Light/Clean Manufacturing
Logistics
Loyalty Program
Retail
Transportation
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP42
