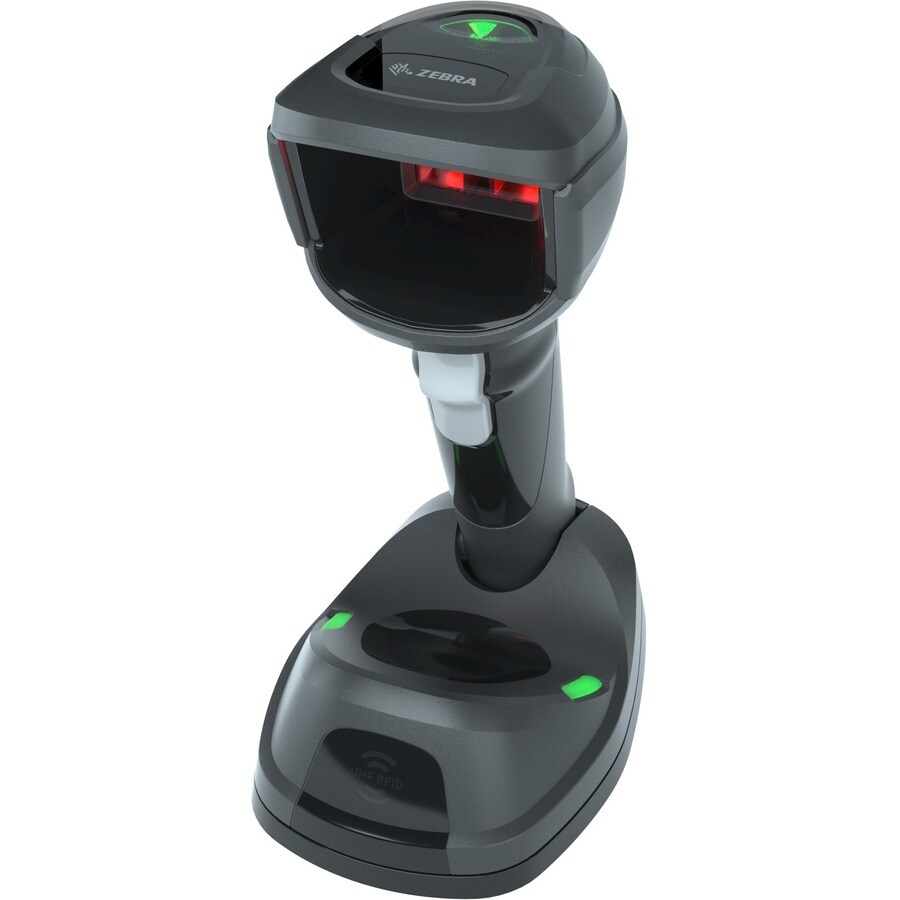

DS9908-SR BLACK USB KIT

DS9908-SR BLACK USB KIT

DS9908-SR BLACK USB KIT

Product Overview

PYP:DS9908-SR BLACK USB KIT: DS9908-SR00004ZZWW SCANNER CBA-U21-S07ZBR SHIELDED USB CABLE

BOOST PRODUCTIVITY AT THE POINT OF SALE WITH THE ULTIMATE IN PERFORMANCE AND DESIGN

The point of sale is your last opportunity to make a good impression. With the DS9900 Series, you can give shoppers the checkout experience they expect - short lines, a speedy transaction and attentive service. A one-of-a-kind hybrid design provides maximum flexibility, offering both handheld and hands-free scanning. While other products are handheld scanners retrofitted with a base, Zebra's award-winning Industrial Design team created the DS9900 Series from the ground up for both handheld and hands-free use. You get Zebra's industry-leading scanning technology, seamless switching between modes and superior ease of use, along with a wide range of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID to your point of sale. Empower your checkout stands with the DS9900 Series Hybrid Presentation Imager - the ultimate in performance and design.

Industry-best performance

Scan it all with virtually no exceptions
The DS9900 Series combines an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology for unparalleled performance on 1D, 2D and Digimarc® barcodes. Problematic barcodes won't slow down your checkout lanes. The DS9900 Series can instantly capture dense, poorly printed, damaged, crinkled, faded, distorted, low-contrast, and glossy printed barcodes, as well as electronic barcodes on dimly lit mobile phone displays.

Rapid-fire scanning to keep your lines moving
With the widest field of view in its class and an advanced illumination system, the DS9900 Series provides the near instant barcode capture you need to keep the busiest checkout lines moving. You get one of the industry's top first-pass read rates - up to 240 in./610 cm per second. A large field of view makes presentation scanning easier than ever, enabling associates to focus on your shoppers rather than positioning items.

Bring RFID to your point of sale
If you are already benefiting from RFID in your supply chain, you can close the RFID loop by capturing RFID-tagged merchandise at the POS with the RFID model. Checkouts are easier than ever, since associates can scan multiple items at once without line of sight. Capturing RFID tags provides the real-time inventory visibility needed for timely re-ordering and trending analysis. The reader operates with just 5 VDC and does not require an external power supply. And complimentary RFID data conversion software lets you read RFID tags without modifying your existing POS application.
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • LED aimer is a perfect choice for patient-facing applications

Technical Specifications

Interfaces/Ports
Host InterfaceUSB
Technical Information
Barcode Symbology Supported
    1D:
    • Code 39
    • Code 128
    • Code 93,
    • Codabar/NW7
    • Code 11
    • MSI Plessey
    • UPC/EAN I 2 of 5
    • Korean 3 of 5
    • GS1 DataBar
    • Base 32 (Italian Pharma)
    2D:
    • PDF417
    • Micro PDF417
    • Composite Codes
    • TLC-39
    • Aztec
    • DataMatrix
    • MaxiCode
    • QR Code
    • Micro QR
    • Han Xin
    • Postal Codes
Connectivity TechnologyCable
FeaturesCheckpoint EAS
Scanning Distance627.38 mm
Light SourceLED
Image FormatsTIFF
BMP
JPEG
Scanner RangeStandard Range
Drop SpecificationDS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Scan PatternArea
Image Sensor TypeImager
Illumination TypeLED
Illumination ColorWhite
Cable Type IncludedUSB
Scanning Capability2D
1D
Field of View (Horizontal)48°
Field of View (Vertical)31°
Reading Angle (Skew)60°
Reading Angle (Pitch)60°
Reading Angle (Roll)360°
Maximum Ambient Light107600 lux
Minimum Print Contrast16%
Maximum Element Resolution (Code 39)0.08 mm
Maximum Element Resolution (DataMatrix)0.25 mm
Maximum Element Resolution (PDF417)0.17 mm
Air Electrostatic Discharge (+/-)15kV
Image Sensor Resolution1280 x 800
Network & Communication
Radio FrequencyYes
Miscellaneous
Application/UsageRetail
Convenience Store
Industrial
Quick Service Restaurant (QSR)
Package Contents
  • DS9908-SR Barcode Scanner Kit
  • CBA-U21-S07ZBR Shielded USB Cable
Ingress Protection (IP) RatingIP52
General Information
Product TypeBarcode Scanner Kit
Manufacturer Part NumberDS9908-SR4U2100AZW
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelDS9908-SR
Product NameDS9908-SR Barcode Scanner Kit
Product SeriesDS9900
Brand NameZebra
Physical Characteristics
Weight (Approximate)330 g
DurabilityDrop Resistant
Dust Resistant
Scratch Resistant
Spill Resistant
Form FactorHandheld
Height203.2 mm
Width94 mm
Depth132.1 mm
Product ColorMidnight Black
Color FamilyBlack
