1 Port ExpressCard Serial Adapter Card
1 Port ExpressCard Serial Adapter Card
Product Overview
StarTech.com Serial Adapter - Plug-in Module - ExpressCard/34 - PC - 1 x Number of Serial Ports External

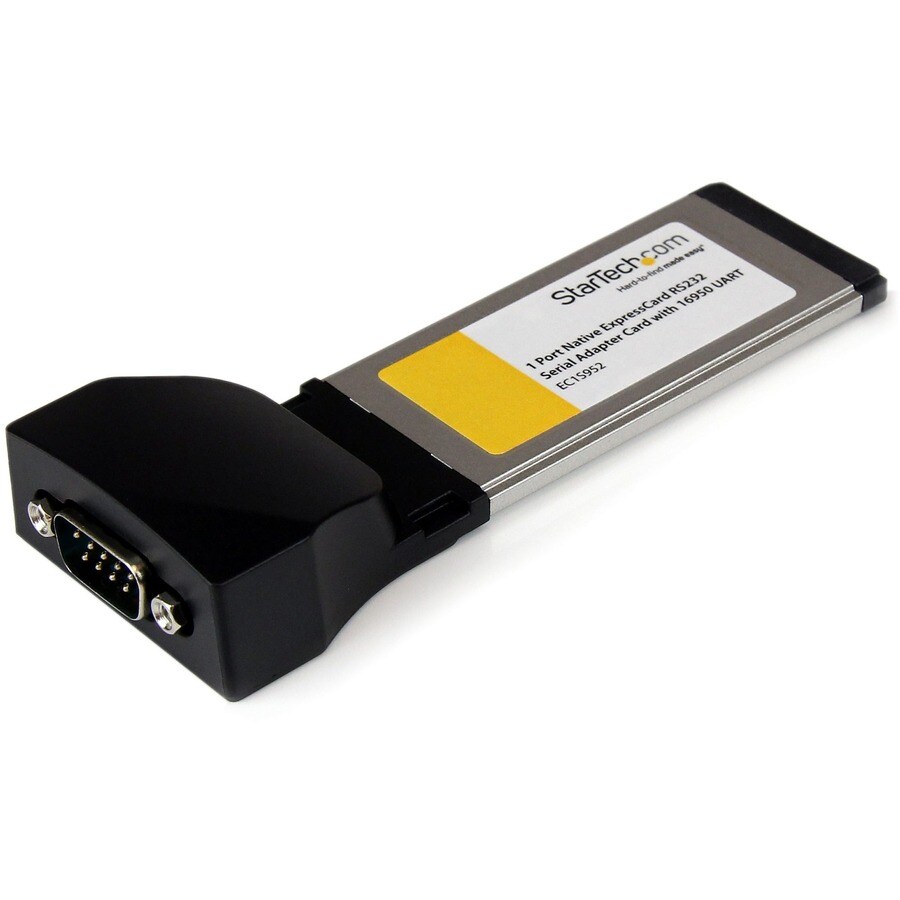

The EC1S952 1 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART lets you add an RS232 serial port to your laptop or ExpressCard-equipped desktop computer.
The serial ExpressCard is designed based on a single-chip architecture (as opposed to cards that use a "bridge chip"), providing native PCI Express communication for greater performance and reliability by reducing the CPU load by up to 48%, and lowering power consumption.
An included stabilizer bracket allows the EC1S952 to fit snugly in both 34mm and 54mm ExpressCard slots. Providing optimal communication with RS232 serial devices, this ExpressCard serial card supports baud rates of up to 115.2Kbps and features a 128-byte FIFO buffer, plus a high performance 16C950 UART.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Technical Specifications
| Number of Serial Ports (External) | 1 |
| Platform Supported | PC |
| UART Type | 16C950 |
| Product Type | Serial Adapter |
| Manufacturer Part Number | EC1S952 |
| Manufacturer Website Address | http://www.startech.com/au |
| Manufacturer | StarTech.com |
| Product Name | 1-port 16C950 UART ExpressCard/34 Serial Adapter |
| Brand Name | StarTech.com |
| Additional Information |
|
| Package Contents |
|
| Environmentally Friendly | Yes |
| Weight (Approximate) | 34 g |
| Form Factor | Plug-in Module |
| Height | 20.3 mm |
| Width | 45.7 mm |
