EGO-AE120-1PK FOR 309
EGO-AE120-1PK FOR 309
Product Overview

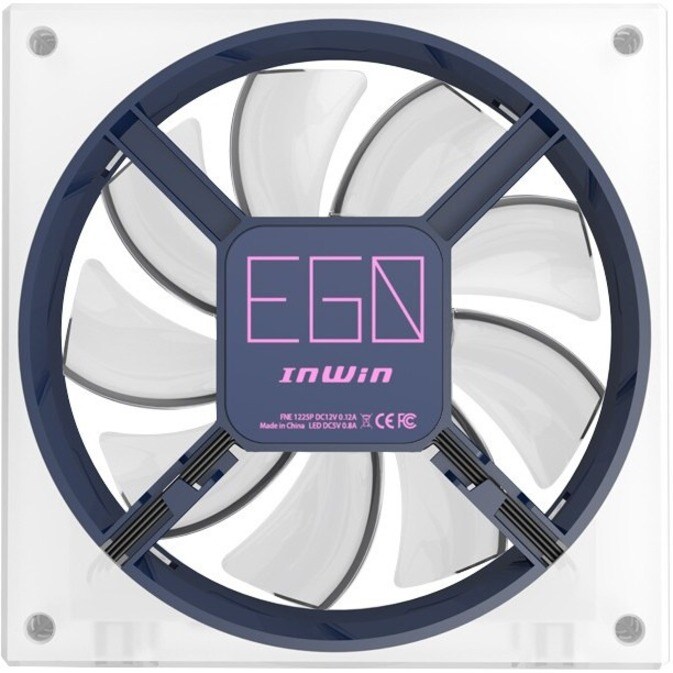

In Win EGO AE120 1 pc(s) Cooling Fan - 120 mm Maximum Fan Diameter - 1 x Fan(s) - 1643.8 L/min Maximum Airflow - 1400 rpm - Sleeve Bearing - 6-Pin Modular - ARGB LED - Silicone, Polycarbonate
Expression of Light
Glimmering ARGB LEDs are found in just one EGO fan! Welcome to the lightshow.
Don't Get Your Wires Crossed!
The patented modular connector design offers easier installation and tidier cable management.
Talking in Colors
( InWin Chassis 309 only)
The LED lights reflect the fan speed in thermal mode (customizable colors) and offers turbo speed control.
Simplified Installation
Tool-less screws for easier installation.
Softer Image
The Silicone frame provides a more durable material while presenting softer lighting effect.
- Inexpensive sleeve bearing - Offers the best performance when installed vertically
- Well designed blades and shroud let the air flow over a greater area to enable effective cooling
- Colourful argb LEDs add an ultra-modern style
Technical Specifications
| Rated Current | 60 mA |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Fan Height | 120 mm |
| Fan Width | 120 mm |
| Fan Depth | 25 mm |
| Maximum Fan Diameter | 120 mm |
| Product Material | Polycarbonate |
| Silicone |
| Product Type | Cooling Fan |
| Manufacturer Part Number | EGO-AE120-1PK |
| Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
| Packaged Quantity | 1 |
| Manufacturer | In Win Development, Inc |
| Product Model | EGO AE120 |
| Product Name | EGO AE120 Cooling Fan |
| Brand Name | In Win |
| Fan Bearing Type | Sleeve Bearing |
| Number of Fans | 1 |
| Maximum Air Pressure | 1.51mmH2O |
| LED Color | ARGB |
| Minimum Airflow | 1152.5 L/min |
| Maximum Airflow | 1643.8 L/min |
| Fan Speed (Min) | 800 rpm |
| Fan Speed (Max) | 1400 rpm |
| Noise Levels (A-Weighted) | 32 dB(A) |
