ALOGIC ELEMENTS DISPLAYPORT CABLE WITH 4
ALOGIC ELEMENTS DISPLAYPORT CABLE WITH 4
Product Overview

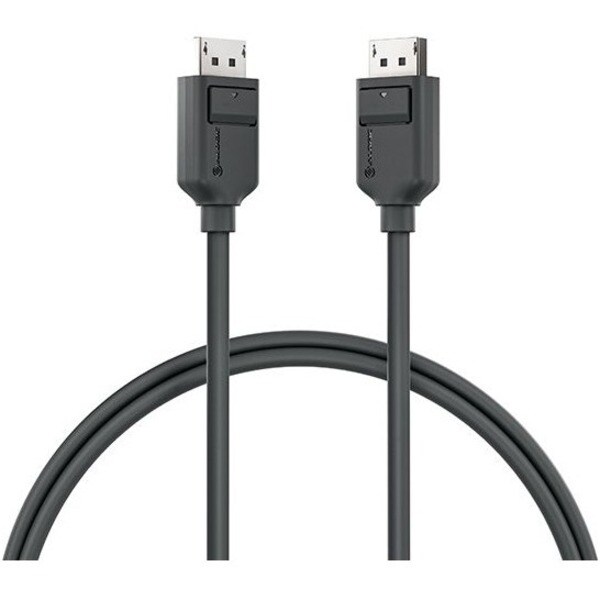

Alogic Elements 1 m DisplayPort A/V Cable - 1 / Pack - Cable for Rack Equipment, Monitor, Audio/Video Device, Display - First End: 1 x DisplayPort 1.2 Digital Audio/Video - Male - Second End: 1 x DisplayPort 1.2 Digital Audio/Video - Male - 21.6 Gbit/s - Supports up to4096 x 2160 - 30 AWG - Black
Premium Performance
Go beyond the 60Hz barrier. ALOGIC's Elements Series DisplayPort cables support exceptionally high refresh rates, including 75Hz for UHD 4K Displays and 240Hz for Full HD Displays. The Elements' high frame rates on supported monitors ensures users enjoy especially fluid video displays, which is particularly ideal for gaming set ups.
User-Friendly Cables for Home and Business
Engineered with professional applications in mind, the DisplayPort Cable with 4K Support utilises highly flexible cable - 30AWG [up to 3m] and 28AWG [5m-plus] cable - for reliable performance and easy installation at home or in business settings. It's PVC-moulded, low-profile connectors are comfortable to grip, simple to insert [they can't fall out once connected], and robust enough to stand up to use in high traffic environments.
Proven to Stand the Test of Time
With hundreds of thousands of our cables installed in professional environments, this range is developed out of vast experience providing products that last the test of time in the most demanding environments. Whether at home or in the office, rest assured these cables outlast others.
Our Elements cables ship with 100% recyclable packaging, helping your business operate more sustainably.
- Enjoy the feast of movies with both video and sound device supported
- Features DisplayPort cable type
- Features Flexible
Technical Specifications
| Product Color | Black |
| Color Family | Black |
| Connector Material | Molded Polyvinyl Chloride (PVC) |
| Cable Length | 1 m |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | Display |
| Monitor | |
| Rack Equipment | |
| Audio/Video Device | |
| Features | Stereoscopic 3D Support |
| Multi-Stream Transport (MST) Support | |
| Hot Pluggable | |
| Latching Connector | |
| Molded | |
| Hot Plug Detection (HPD) | |
| High Bit Rate 2 (HBR2) | |
| HDCP | |
| Gripping Connector | |
| Flexible | |
| DPCP | |
| 4K UHD | |
| Cable Type | DisplayPort |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| American Wire Gauge | 30 AWG |
| Supported Resolution | 4096 x 2160 |
| Connector on First End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Product Type | A/V Cable |
| Manufacturer Part Number | EL2DP01 |
| Manufacturer Website Address | http://www.alogic.co |
| Packaged Quantity | 1 / Pack |
| Manufacturer | Alogic |
| Product Name | Elements DisplayPort Cable with 4K Support - Male to Male |
| Product Line | Elements |
| Brand Name | Alogic |
