EPDU MI 1U (C20 16A 1P)C13x8
EPDU MI 1U (C20 16A 1P)C13x8
Product Overview

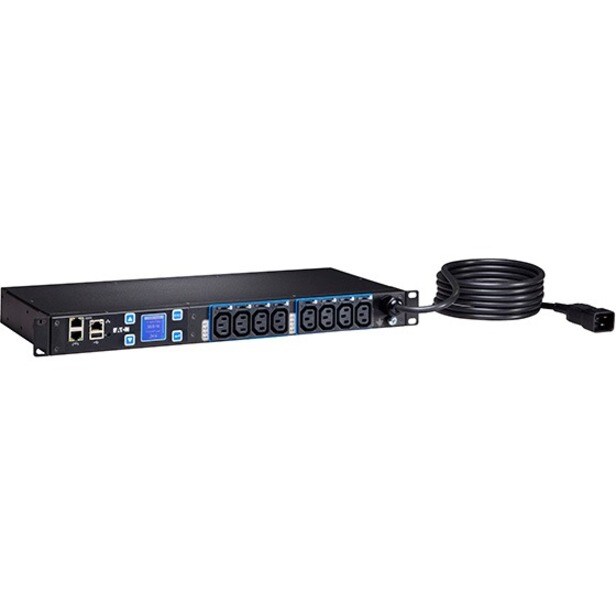

Eaton ePDU EMIH28 PDU - IEC 60320 C20 - 8 x IEC 60320 C13 - 16 A - 230 V AC Input - 4 kW - 1U/2U Network (RJ-45) - Horizontal/Vertical
Models available in 0U, 1U and 2UePDU G3 Metered Input models allow metering to the branch and phase level for effective load balancing, with no switching. Models include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
Technical Specifications
Interfaces/Ports
| Network (RJ-45) | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
Power Description
| Input Voltage | 230 V AC |
| Input Current | 16 A |
| Power Rating (Watt) | 4 kW |
General Information
| Product Type | PDU |
| Manufacturer Part Number | EMIH28 |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Model | EMIH28 |
| Product Name | ePDU Metered EMIH28 8-Outlet PDU |
| Product Line | ePDU |
| Product Series | Metered |
| Brand Name | Eaton |
Technical Information
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
Physical Characteristics
| Rack Height | 1U/2U |
| Height | 203 mm |
| Width | 44.5 mm |
| Depth | 482.6 mm |
| Mounting Orientation | Horizontal/Vertical |
Price Trend
Current Price
AUD 1,649.00
