EasyPDU Metered-by-Outlet ZeroU 16A 230V
EasyPDU Metered-by-Outlet ZeroU 16A 230V
Product Overview

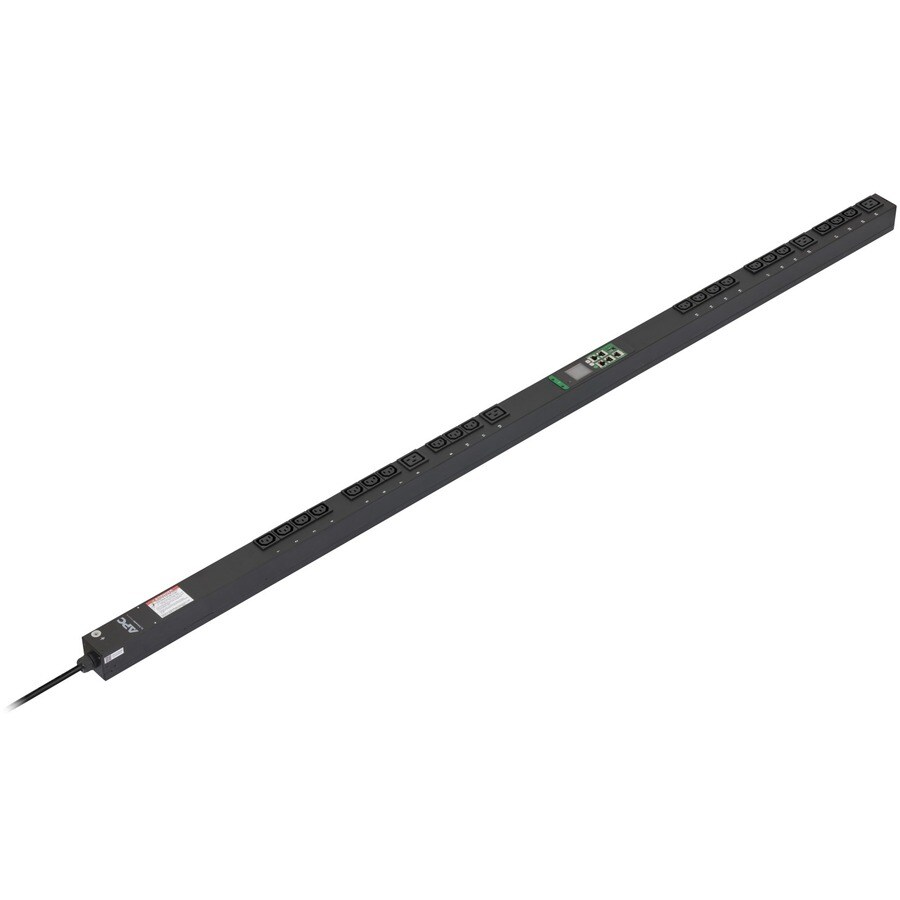

APC by Schneider Electric EasyPDU PDU - Metered-by-Outlet - IEC 60309 16A 2P+E - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 16 A - 230 V AC Input - 230 V AC Output - 0U Network (RJ-45) - Vertical
Easy Metered Rack PDU
Easy Metered Rack Power Distribution Units (Rack PDU) provide real-time remote monitoring, power management of connected loads, and much more features than the average power strip.
Technical Specifications
Interfaces/Ports
| Network (RJ-45) | Yes |
Management
| Management | SNMP |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 16 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Power Rating (VA) | 3.68 kVA |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| China Restriction of Hazardous Substances (China RoHS) |
Technical Information
| Plug/Connector Type | IEC 60309 16A 2P+E |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Metered-by-Outlet |
| Receptacle Detail | 4 x IEC 60320 C19 |
| 20 x IEC 60320 C13 |
Physical Characteristics
| Weight (Approximate) | 6.37 kg |
| Rack Height | 0U |
| Height | 1800 mm |
| Width | 55 mm |
| Depth | 56 mm |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
General Information
| Product Type | PDU |
| Manufacturer Part Number | EPDU1116MBO |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | EasyPDU 24-Outlets PDU |
| Product Line | EasyPDU |
| Product Series | Metered |
| Brand Name | APC by Schneider Electric |
Price Trend
Current Price
AUD 1,650.00
