EASY PDU SWITCHED ZERO U 32A 230V
EASY PDU SWITCHED ZERO U 32A 230V
Product Overview

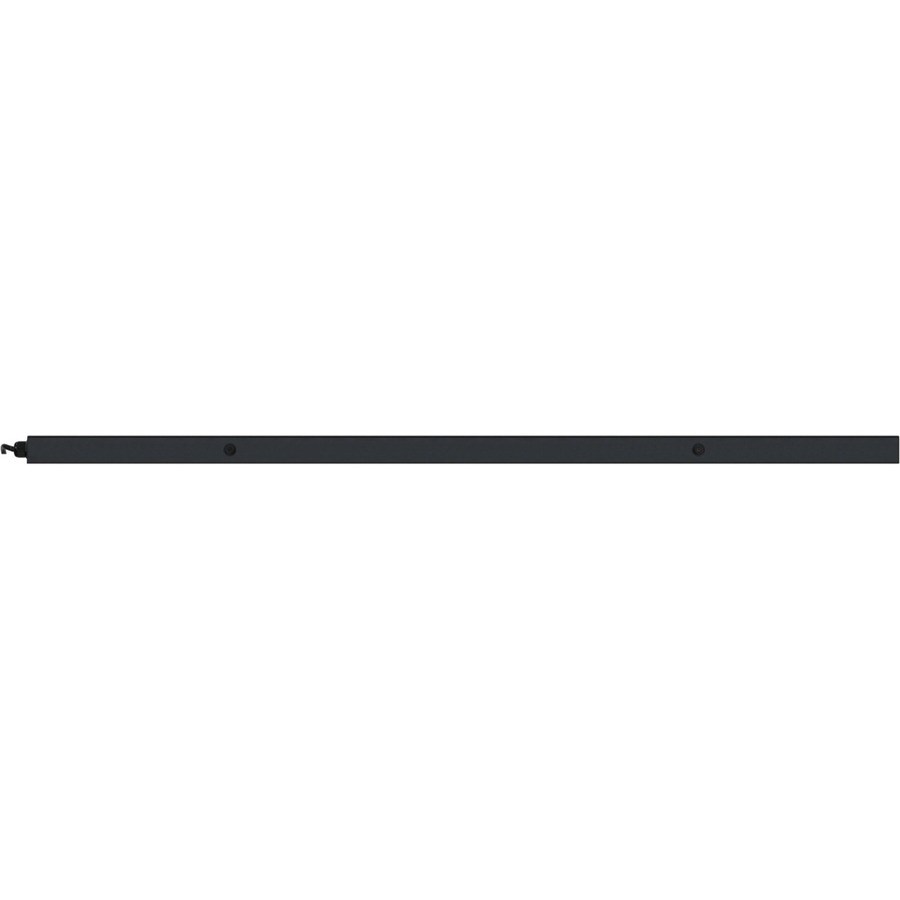

APC by Schneider Electric Easy Switched Rack PDU - Switched - IEC 309 32A 2P+E - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 32 A - 230 V AC Input - 230 V AC Output - 0U - Horizontal/Vertical/Toolless - Rack-mountable
Easy Switched Rack PDU
Easy Switched Rack Power Distribution Units (PDU) go beyond the average power strip and provide advanced power management and load monitoring of server rack and network rack solutions. Including remote on/off switching control of individual outlets for power cycling.
APC Easy Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power management and remote monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Easy Switched Rack PDU through secure Web, SNMP, Modbus-TCP, or Telnet Interfaces . Easy Switched Rack PDU includes environmental monitoring including temp sensor and humidity sensor port to monitor the environment.
Technical Specifications
| Management |
|
| Environmentally Friendly | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 32 A |
| Power Rating (VA) | 7.36 kVA |
| Protection Type | Circuit Protection |
| Overload Protection | |
| Plug/Connector Type | IEC 309 32A 2P+E |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Switched |
| Receptacle Detail | 20 x IEC 60320 C13 |
| 4 x IEC 60320 C19 |
| Product Type | PDU |
| Manufacturer Part Number | EPDU1132S |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy Switched Rack 24-Outlets PDU |
| Product Line | Easy Switched Rack |
| Brand Name | APC by Schneider Electric |
| Weight (Approximate) | 7.90 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 1738 mm |
| Width | 55 mm |
| Depth | 62 mm |
| Mounting Orientation | Horizontal/Vertical/Toolless |
