EASY PDU METERED 0U 22KW (18)C13 (6)C19
EASY PDU METERED 0U 22KW (18)C13 (6)C19
Product Overview

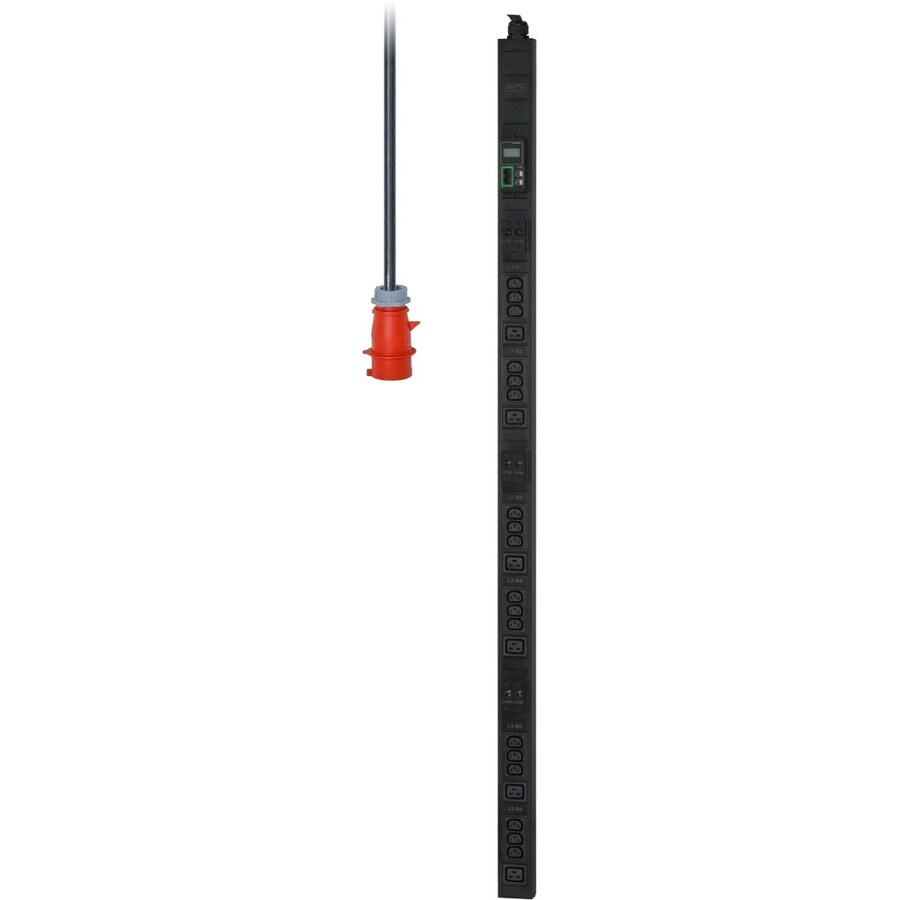

APC by Schneider Electric Easy Metered Rack PDU - Metered - IEC 309 32A 3P+N+PE - 18 x IEC 60320 C13, 6 x IEC 60320 C19 - 32 A - 400 V AC Input - 230 V AC Output - Overload Protection, Circuit Protection - 0U - Horizontal/Vertical/Toolless - Rack-mountable
Easy Metered Rack PDU
Easy Metered Rack Power Distribution Units (PDU) provide real-time remote monitoring and power management of connected loads in server rack and network rack solutions. Going beyond the average power strip, Easy PDU offers User-defined alarms to warn of potential circuit overloads before critical IT failures occur.
APC Easy Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through https/http, SNMPV1/V2/V3, Modbus-TCP . Easy Metered Rack PDUs include a temperature/humidity sensor port to monitor the environment.
Technical Specifications
| Management |
|
| Environmentally Friendly | Yes |
| Input Voltage | 400 V AC |
| Output Voltage | 230 V AC |
| Input Current | 32 A |
| Power Rating (Watt) | 22 kW |
| Protection Type | Circuit Protection |
| Overload Protection | |
| Plug/Connector Type | IEC 309 32A 3P+N+PE |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Metered |
| Receptacle Detail | 18 x IEC 60320 C13 |
| 6 x IEC 60320 C19 |
| Product Type | PDU |
| Manufacturer Part Number | EPDU1232M |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy Metered Rack 24-Outlets PDU |
| Product Line | Easy Metered Rack |
| Brand Name | APC by Schneider Electric |
| Weight (Approximate) | 4.64 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 1506 mm |
| Width | 62 mm |
| Depth | 44 mm |
| Mounting Orientation | Horizontal/Vertical/Toolless |
