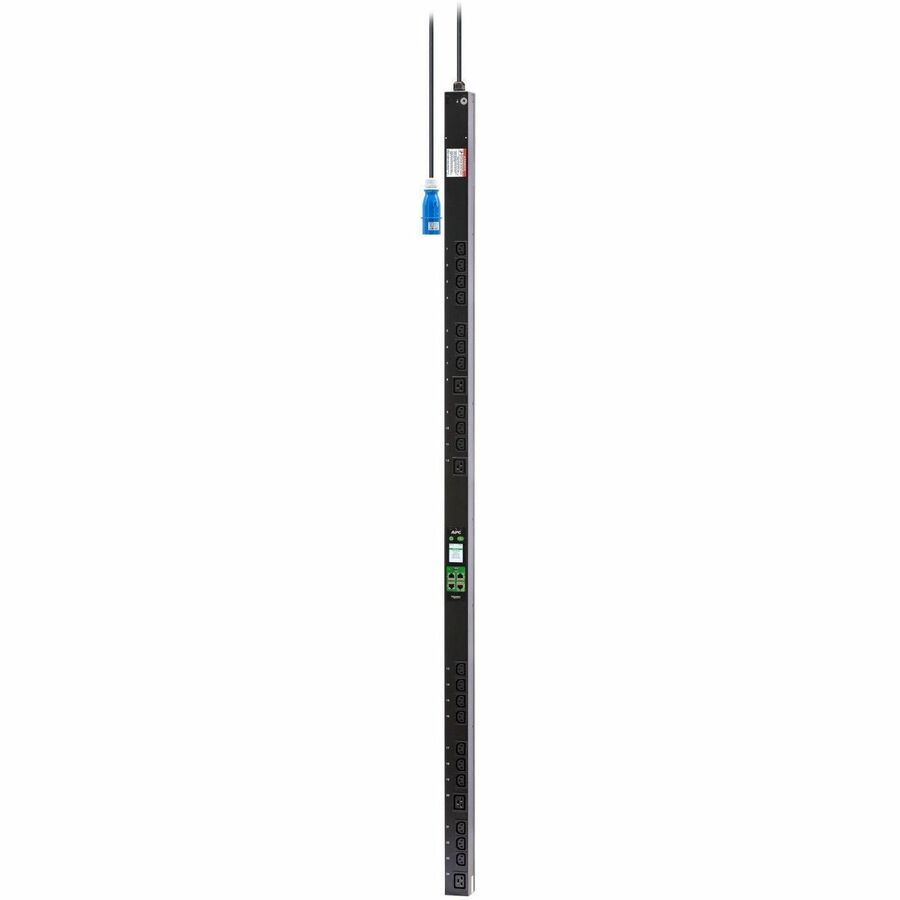

Easy PDU 2G Metered-by-Outlet ZeroU 16A
Easy PDU 2G Metered-by-Outlet ZeroU 16A
Product Overview
APC by Schneider Electric Easy Metered Rack PDU - Metered - IEC 60309 (2P+E) 16A - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 16 A - 230 V AC Input - 230 V AC Output - 0U - 3 m Cord Length - Vertical - Rack-mountable
Easy PDU 2G Metered-by-Outlet ZeroU 16A 230V (20) C13 and (4) C19Technical Specifications
Management
| Management | SNMP |
Warranty
| Additional Warranty Information | 2 Years repair and Replace |
Miscellaneous
| Package Contents |
|
| Certifications & Standards | CE |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) |
Environmental Conditions
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | 50°C |
| Minimum Storage Temperature | -25°C |
| Maximum Storage Temperature | 65°C |
| Minimum Operating Humidity | 5% |
| Maximum Operating Humidity | 95% |
Physical Characteristics
| Weight (Approximate) | 6.37 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 3 m |
| Height | 1800 mm |
| Width | 55 mm |
| Depth | 56 mm |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 16 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Frequency | 60 Hz |
| Power Rating (VA) | 3.68 kVA |
| Power Rating (Watt) | 3.70 kW |
Technical Information
| Plug/Connector Type | IEC 60309 (2P+E) 16A |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Metered |
| Receptacle Detail | 20 x IEC 60320 C13 |
| 4 x IEC 60320 C19 |
General Information
| Product Type | PDU |
| Manufacturer Part Number | EPDU2116MBO |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 / Pack |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy Metered Rack 24-Outlets PDU |
| Product Line | Easy Metered Rack |
| Brand Name | APC by Schneider Electric |
